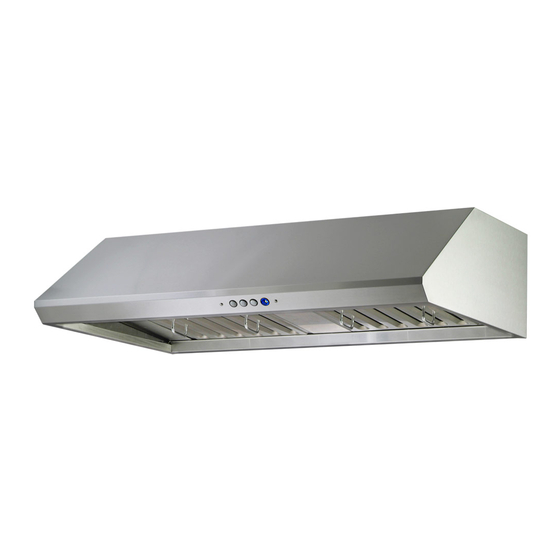

Windster RA34LU30SS User Manual

Windster RA34LU30SS User Manual

Under cabinet series,wall mount series
Hide thumbs Also See for RA34LU30SS:

Advertisement

User's Manual
NOTE: This unit does not support
ductless operation. For ductless
operation, please refer to model
WS38 series.
For residential and indoor use only
Please read this operation manual thoroughly before
using your range hood. Store it in a safe location for
when you need to reference it in the future.
RA34LU30SS
RA34LU36SS
RA34LU42SS
RA34LU48SS
www.windsterhood.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RA34LU30SS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Windster RA34LU30SS

  • Page 1 User’s Manual RA34LU30SS RA34LU36SS RA34LU42SS RA34LU48SS NOTE: This unit does not support ductless operation. For ductless operation, please refer to model WS38 series. For residential and indoor use only Please read this operation manual thoroughly before using your range hood. Store it in a safe location for...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Table of Contents Safety Information .............. 2 – 3 Content Checklist ..............4 Measurements ................5 Preparation ................. 6 – 7 Installation ................8 – 9 Installation Diagram ..............10 Operation & Features ............. 11 – 12 Cleaning &...
  • Page 3: Safety Information

    SAFETY INFORMATION SAFETY INFORMATION TO REDUCE THE RISK OF A FIRE, ELECTRICAL SHOCK, AND/OR INJURY OBSERVE THE FOLLOWING:  Unit is intended for indoor residential use only. If you should have questions, contact the manufacturer at the address or telephone number listed in the warranty.
  • Page 4: Safety Information

    SAFETY INFORMATION TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:  Regardless of heat level, never leave any surface materials unattended while operating an open flame.  Always turn hood ON when cooking at high heat or when flambéing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
  • Page 5: Content Checklist

    CONTENT CHECKLIST CONTENT CHECKLIST CONTENTS INCLUDED (1) RA-34L series (30”, 36” 42” or 48”) hood assembly (1) User’s manual (1) Black 6” to 7” conversion collar (2) Baffle filters w/ handles & (2) stainless steel filler (30” model only) (2) Baffle filters w/ handles & (3) stainless steel filler (36” model only) (2) Baffle filters w/ handles &...
  • Page 6: Measurements

    MEASUREMENTS...
  • Page 7: Preparation

    PREPARATION PREPARATION BEFORE YOU START Be sure you have all the content of your purchase and required tools for this installation. Installation may take at least 2 to 3 hours from start to finish. Plan to use as few elbows or turns as possible for more efficient air flow. Collar size may need to be increased if utilizing a long duct run.
  • Page 8: Preparation

    PREPARATION For cabinet with recessed-bottom, use (2) 3” x 12” or 15” wood strips on both sides to balance the recession. Use (4) 1-1/4” long flat head screws to secure the wood strips to cabinet. (Fig. 1d) HOOD Inspect for any sign of defect or damage. (ie. scratches, dents, loose seams, etc.) Power up the unit to make sure it is working properly.
  • Page 9: Installation

    INSTALLATION INSTALLATION 1. UNDER CABINET INSTALLATION Make sure all preparation steps are completed. Feed the wires coming out of the hood through the bottom of the cabinet. Lift the unit up flesh against the wall and the bottom of the cabinet. Using the screws and washers provided, insert into each of the keyhole openings and tightly secure the unit against the bottom of the cabinet.
  • Page 10: Installation

    INSTALLATION Use a spirit level to ensure the balance of the hood is true. Mount the unit onto wall with mounting screws (not included) (Fig. 2b) Determine the desired location for mounting the duct cover bracket and secure it with the (2) screws provided. (Fig. 2c) NOTE: IF USING CFM reducer, connect the reducer to unit before continuing.
  • Page 11: Installation Diagram

    INSTALLATION DIAGRAM INSTALLATION DIAGRAM Fig. 2a Fig. 2b Fig. 2c Fig. 2d Fig. 2e Fig. 2f...
  • Page 12: Operation & Features

    OPERATION & FEATURES OPERATION & FEATURES EASY ACCESS CONTROL SWITCH (from left to right) Button 1 – ON / DELAY SHUTOFF / OFF Button 2 – Light control Button 3 – Speed control Blue color speed indicator BAFFLE FILTERS (2) 14-3/8” x 12-3/4” baffle filters and (2) fillers (30” model only) (2) 14-3/8”...
  • Page 13: Operation & Features

    OPERATION & FEATURES PUTTING IN THE OIL TRAY AND BAFFLE FILTERS Insert the oil tray into the unit at an angle. (Fig. 3a) ○ 1 Slide the baffle filter into the hood. ○ 2 Push the baffle filter upward. ○ 3 Slide the baffle filter toward you.
  • Page 14: Cleaning & Maintenance

    CLEANING & MAINTENANCE CLEANING & MAINTENANCE ..WARNING!!!.. To prevent the possibility of a fire and explosion, do not use flammable liquids or solvents to clean the unit or any of its parts. Check to make sure all power sources are disconnected before servicing or taking unit apart for cleaning.
  • Page 15: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING ..WARNING!!!.. Check to make sure all power sources are disconnected before starting any troubleshooting. Safety gloves and glasses should be worn when working on the unit. Serious injury or death may occur if safety precautions are not followed. RA34L Series Light Issue (All not 1.
  • Page 16: Part List / Replacement

    PART LIST / REPLACEMENT PART LIST / REPLACEMENT...
  • Page 17: Part List / Replacement

    PART LIST / REPLACEMENT Description Description 6” – 7” transition collar Duct cover bracket (optional) Duct cover (optional) Air chamber Hood bracket (optional) Motor Duct cover panel (optional) Fan impeller Hood body assembly Protective grill Oil tray bar Oil funnel (2) baffle filters / (2) fillers (30”...
  • Page 18: Warranty / Contact Us

    For a period of one (1) year from the date of purchase, if the product is determined to be defective, Windster will attempt to repair the product, at its option, at no charge. After the warranty period, customer must pay for all labor charges. During the "labor"...
  • Page 19: Warranty / Contact Us

    CONTACT US Windster Hoods, Inc. 5101 Commerce Dr. Baldwin Park, CA 91706 TEL: (626) 962 – 8600 FAX: (626) 962 – 8669 Toll Free: (877) 350 – 5215 E-mail: Support@windsterhood.com © Windster Hoods, Inc. Information subject to change without notice...
  • Page 20 MEMO...
