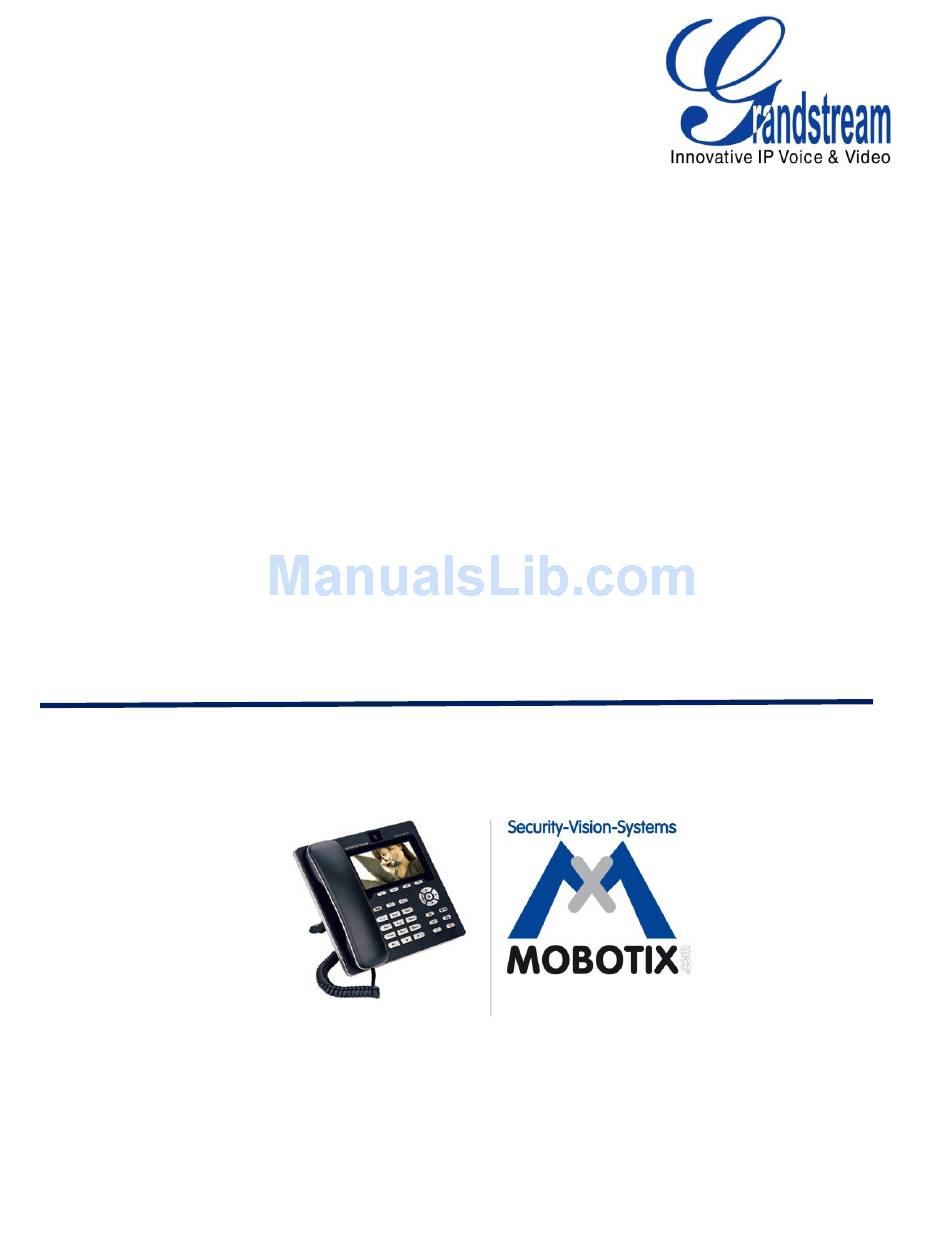

- Page 1 Grandstream Networks, Inc. Mobotix T24S Door System Configuration Guide GXV3140 IP Video Phone GXV-3140 MOBOTIX T24S...
- Page 2 DISCOVER/CONFIGURE A GXV-3140 PHONE AUTOMATICALLY WITH AN EXISTING DOOR SYSTEM ... 5 ADD/CONFIGURE A NEW GXV-3140 MANUALLY : ..................8 ESTABLISH A CALL WITH T24S DOOR SYSTEM :..................13 Page 2 of 16 Grandstream Networks, Inc. Mobotix T24S Door System Configuration Guide For GXV3140 www.grandstream.com Last Update : 01/2012...
- Page 3 MX-V4.1.1.7 (2011-12-15) Software. Be aware that different firmware revisions may have different web interface formats and functionalities. This guide is applicable to the following Grandstream phone models: GXV3140. This guide will cover the 3 possible ways to set up a phone for use with Mobotix T24S.
- Page 4 *101 is the new SIP quick-dial number for the first GXV-3140, while the T24S has the *201 SIP quick-dial number The phone idle screen display will change to the following : Page 4 of 16 Grandstream Networks, Inc. Mobotix T24S Door System Configuration Guide For GXV3140 www.grandstream.com...
- Page 5 1. Open MxEasy software Camera Door Station Option, you will now be prompted to the configuration page for the door bell action : Page 5 of 16 Grandstream Networks, Inc. Mobotix T24S Door System Configuration Guide For GXV3140 www.grandstream.com...
- Page 6 Figure 4: Add a new GXV-3140 Note: GrandStream “*101” is the extension that was configured during the initial configuration. 2. Press the + sign in order to add a new phone, you will now have another field, choose Search Door Stations...
- Page 7 SIP quick-dial number of the other GXV-3140 using the telephone keypad and press the send key (green phone) before picking up the handset. Page 7 of 16 Grandstream Networks, Inc. Mobotix T24S Door System Configuration Guide For GXV3140 www.grandstream.com...
- Page 8 Mobotix T24S System : a. Access the Admin Menu –> Sip Server Settings, you will be prompted to the following page Page 8 of 16 Grandstream Networks, Inc. Mobotix T24S Door System Configuration Guide For GXV3140 www.grandstream.com...
- Page 9 Make sure that SIP server is on, and take a note of the SIP server IP and the port that will be used on the phone configuration. b. Add a new extension on T24S : Figure 9: Add a new extension on T24S Page 9 of 16 Grandstream Networks, Inc. Mobotix T24S Door System Configuration Guide For GXV3140 www.grandstream.com Last Update : 01/2012...
- Page 10 Once done, please update the configuration by pressing the Set button. 2. Connect the GrandStream GXV-3140 video phone to the network and to the power. The phone will boot up, and request an IP address from your DHCP server. Once the phone gets an IP address it will display on its idle screen.
- Page 11 „Account Name‟ box. This setting is not used by T24S Door System. It is only used when making calls to other phones directly. Page 11 of 16 Grandstream Networks, Inc. Mobotix T24S Door System Configuration Guide For GXV3140 www.grandstream.com...
- Page 12 9. In order to have full compatibly between Mobotix and the GXV-3140, it is required to enable the Mobotix special feature on the phone as shown: Page 12 of 16 Grandstream Networks, Inc. Mobotix T24S Door System Configuration Guide For GXV3140 www.grandstream.com...
- Page 13 Note: due to software updates (“From Mobotix Side “), some of the functions in the following examples may be subject to change. Page 13 of 16 Grandstream Networks, Inc. Mobotix T24S Door System Configuration Guide For GXV3140 www.grandstream.com Last Update : 01/2012...
- Page 14 The status display appears at the top left. In this example, the door is closed and locked, the external light is on and the camera's record function is active. Figure 15: Status display Page 14 of 16 Grandstream Networks, Inc. Mobotix T24S Door System Configuration Guide For GXV3140 www.grandstream.com Last Update : 01/2012...
- Page 15 Use the keys 2, 6, 8 and 4 or the corresponding arrow keys to move left/right up/down digitally through the image. Key 5 activates the zoom function of the camera (zoom +/- using keys 2/8). Page 15 of 16 Grandstream Networks, Inc. Mobotix T24S Door System Configuration Guide For GXV3140 www.grandstream.com...
- Page 16 5 (digital zoom) 1x, you can zoom in or out on the displayed image segment using keys 2 or 8; pushing key 5 again returns you to tilt mode (keys 2 and 8); Page 16 of 16 Grandstream Networks, Inc. Mobotix T24S Door System Configuration Guide For GXV3140 www.grandstream.com...
