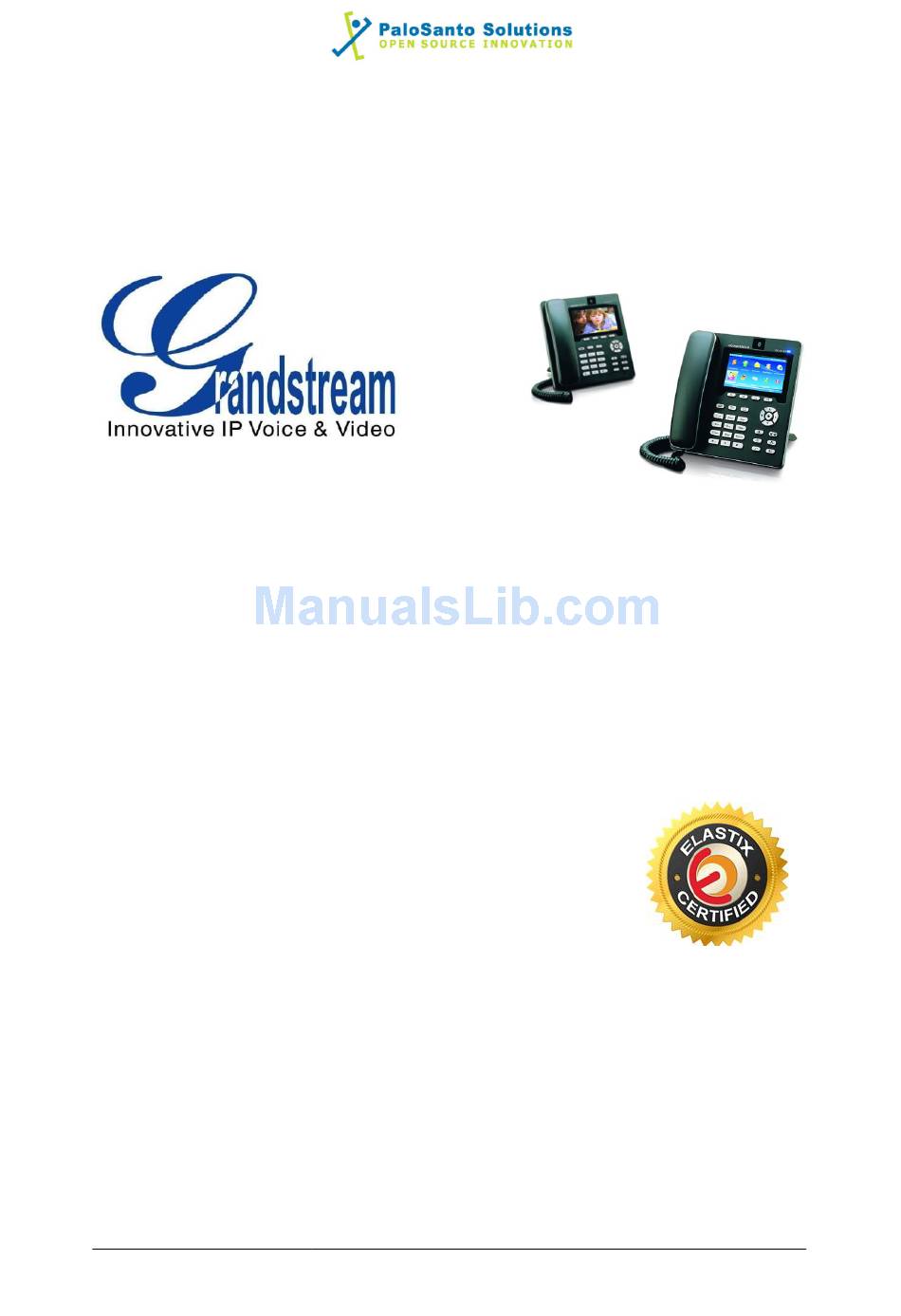

- Page 1 Grandstream GXV3140 Grandstream GXV3140 Grandstream GXV3140 and Elastix Server and Elastix Server and Elastix Server Setup Guide Setup Guide Setup Guide http://www.elastix.org http://www.elastix.org http://www.elastix.org...
-
Page 2: Setup Diagram
1.0 Setup Diagram Grandstream GXV3140 and Elastix Server Setup Guide Figure 1-1 is a setup diagram for a single IP Video Phone Grandstream GXV3140 configuration. The phone is setup as a SIP telephony device. Figure 1-1. Setup Diagram 2.0 Host PC Environment Table 2-1. -
Page 3: Setup Procedure
4.0 Setup Procedure Grandstream GXV3140 and Elastix Server Setup Guide To set up the Elastix Server for the Grandstream GXV3140 1. Go to the web address of the Elastix Server Login page. The web address is determined by the customer, for this guide we have used the IP address 192.168.1.75 2. - Page 4 PaloSanto Solutions PaloSanto Solutions PaloSanto Solutions Grandstream GXV3140 and Elastix Server Setup Guide Grandstream GXV3140 and Elastix Server Setup Guide Grandstream GXV3140 and Elastix Server Setup Guide Figure 4-3. Add an Extension Figure 4-3. Add an Extension Figure 4-3. Add an Extension 6.
- Page 5 10. Click on “Submit” and apply changes. With this you have just finished creating a SIP extension that will be used by the Grandstream GXV3140 to register with the SIP extension that will be used by the Grandstream GXV3140 to register with the SIP extension that will be used by the Grandstream GXV3140 to register with the Elastix Server.
- Page 6 For the initial configuration, refer to the Grandstream GXV3140 User Manual found at: http://www.grandstream.com/products/ip-video-telephony/gxv3140/ Factory default settings IP Addressing DHCP admin Web Access Username Web Access Password admin 16. Log in to the Grandstream GXV3140 WebUI by pointing your browser to the Grandstream Phone’s IP address.
- Page 7 17. When prompted, enter the Web Access Username and Web Access Password to access to the WebUI (Figure 4-11). Figure 4-11 Grandstream WebUI To register the Grandstream GXV3140 Phone we have two methods: Manual Configuration and Autoprovisioning using Elastix’s Endpoint Configurator.
-
Page 8: Manual Configuration
PaloSanto Solutions Grandstream GXV3140 and Elastix Server Setup Guide MANUAL CONFIGURATION 1. Use the information from the Add SIP Extension page (Figure 4-4) to enter the following necessary information on “Account 1“ section of the Grandstream Phone WebUI (Figure 4-12): ... - Page 9 3. Configure the other IP (SIP) Video Phone with the correct parameters. 4. To test the Grandstream GXV3140, pick up the previously configured IP (SIP) Video Phone and call the GXV3140’s extension number (301 in this example). When the call is established, speak into the phone and verify that the other IP (SIP) Video Phone can hear your voice and see you through the video camera.
- Page 10 PaloSanto Solutions Grandstream GXV3140 and Elastix Server Setup Guide AUTOPROVISIONING USING ELASTIX’S ENDPOINT CONFIGURATOR 1. In the Grandstream GXV3140 WebUI, go to “Maintenance” section and clink on “Upgrade”. Set the following parameters (Figure 4.16): Upgrade Via: TFTP Config Server Path: Elastix’s IP Address (192.168.1.75 in this example) Figure 4.16 Advanced Settings...
- Page 11 5. Click the “Set” button. When the process finish loading reboot the phone. 6. Configure the other Video Call IP (SIP) Phone with the correct parameters. 7. To test the Grandstream GXV3140, pick up the previously configured Video Call IP (SIP) Phone and call the GXV3140’s extension number (301 in this example).
