Models
Available
Duct
Cover
Accessories
Accessories
(For 48" Wide
Models Only)
ZX48AY, transition to 10" round vertical
exhaust.
These hoods can be installed into a soffit, or
when there is no soffit, they can be installed
directly onto a wall.
48" and 36" wide models are available with
different appearances. Model numbers with
"YSS" have straight sides. Model numbers
ending with "WSS" have sides which taper
inwards from the bottom to the top.
Before you begin:
Decorative duct covers are available in 6" or
12" heights. The duct covers conceal the
ductwork running from the top of the hood to
the ceiling or soffit. Before you begin, you
Style Hood Model
A-Oval ZV881WSS, ZV880WSS
A-Oval ZV671WSS, ZV670WSS
B-Square ZV891YSS, ZV890YSS
B-Square ZV681YSS, ZV680YSS
B-Square ZV371YSS, ZV370YSS

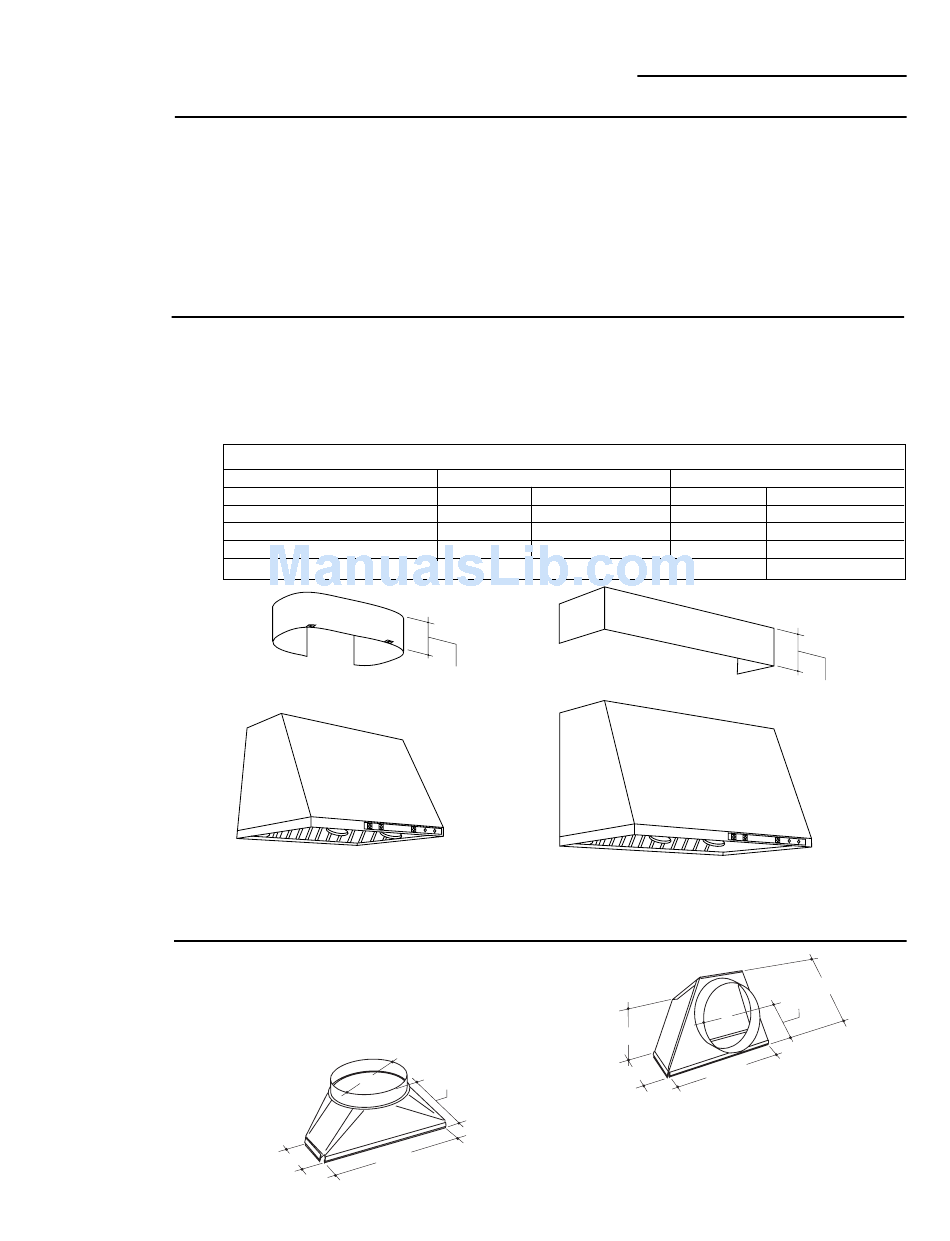

Style A-Oval Shape
Duct covers for models:
ZV881WSS, ZV880WSS, ZV671WSS and
ZV670WSS.
Transition duct pieces are available for 48"
wide models. These pieces fit over the outlet
on top of the hood. These transition pieces fit
into a soffit or when there is no soffit, a 12"
duct cover should be used.
10"
18-1/2"
4-1/2"

Design Information

48" Wide Models:
ZV881WSS, ZV880WSS – with tapered sides
ZV891YSS, ZV890YSS – with straight sides
36" Wide Models:
ZV671WSS, ZV670WSS – with tapered sides
ZV681YSS, ZV680YSS – with straight sides
30" Wide Models:
ZV371YSS, ZV370YSS – with straight sides
should determine the installation height of
the hood and order the correct size duct
cover.
Be sure to order the duct cover which corre-
sponds to your model.
Optional Accessory Duct Covers
6" Duct Cover
ZX6DC48WSS 6"Hx27-3/8"Wx10-1/4"D
ZX6DC36WSS 6"Hx22-1/2"Wx9-3/16"D
ZX6DC49YSS 6"Hx47-7/8"Wx12"D
ZX6DC38YSS 6"Hx35-7/8"Wx12"D
ZX6DC30YSS 6"Hx29-7/8"Wx12"D
Optional 6" or 12"
Duct Cover
Duct covers for models:
ZV891YSS, ZV890YSS, ZV681YSS, ZV680YSS,
ZV371YSS and ZV370YSS.
8-3/4"
ZX48BY, transition to 10" round for horizontal
exhaust.
Professional Vent Hoods
12" Duct Cover
ZX12DC48WSS 12"Hx27-3/8"Wx10-1/4"D
ZX12DC36WSS 12"Hx22-1/2"Wx9-3/16"D
ZX12DC49YSS 12"Hx47-7/8"Wx12"D
ZX12DC38YSS 12"Hx35-7/8"Wx12"D
ZX12DC30YSS 12"Hx29-7/8"Wx12"D
Style B-Square Shape
6-5/8"
to C L
C
L
8-1/4"
19-1/4"
4-3/4"
Optional 6" or 12"
Duct Cover
12"
