2. Double click System.
3. Click the Hardware tab.
4. If the card does not appear with a red x or yellow exclamation point (!) next to it,
Windows has not detected a problem with the installation and the card should
function normally.
Windows 2000/XP/2003
1. Go to Start > Settings > Control Panel.
2. Double click System.
3. Click the Hardware tab and choose Device Manager.
4. If the card does not appear with a red x or yellow exclamation point (!) next to it,
Windows has not detected a problem with the installation and the card should
function normally.

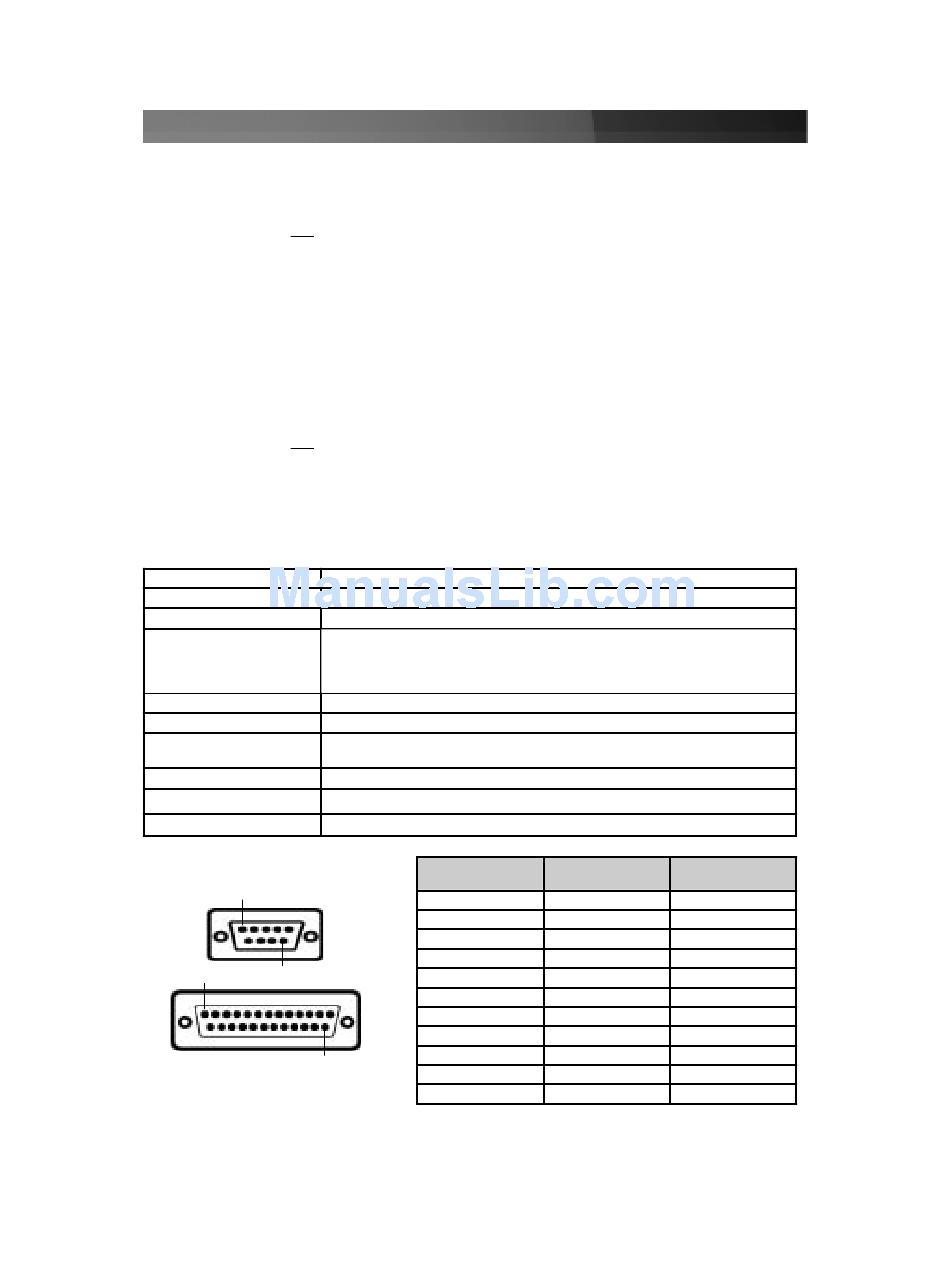

Specifications

Card Interface 32-bit PCI (5v), 64-bit PCI-X (3.3v)
FIFO Size 128 KBytes software, 32 bytes hardware
Max. Data Transfer Rate 920 Kbits/sec., supports half and full duplex
Connectors 1 x proprietary 44-pin (female) to dongle
2 x DB9 (male) to peripherals (PCI2S650PW)
4 x DB9 (male) to peripherals (PCI4S650PW)
1 x internal SP4 (male) power connector
Signals Supported (RS-232) TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND (see below for pinout)
Power to Peripherals 5 or 12 volts to peripheral supported over DB9 connection
OS Support Windows 2003 Server, XP, 2000, NT, ME, 98, 95, DOS/Windows 3.1, Linux
(Driver support included for 64-bit editions of Windows 2003 and 2000 Server.)
Operating Tolerances 32º~135ºF (0º~57ºC), 5~95% rel. humidity
UART Chipset
Sunix SUN1889 (16C650 compliant)
Certifications Regulatory: FCC Class B, CE Other: Microsoft WHQL
1
9
1
25
Instruction Manual
Pin DB9
Assignment
1 DCD
2 RD
3 TD
4 DTR
5 GROUND
6 DSR
7 RTS
8 CTS
9 RI / 5V / 12V
20 n/a
22 n/a
(Any unshown pins are not used.)
6
DB25
Assignment
NC
TD
RD
RTS
CTS
DSR
GROUND
CD
n/a
DTR
RI / 5V / 12V
