Instruction Manual

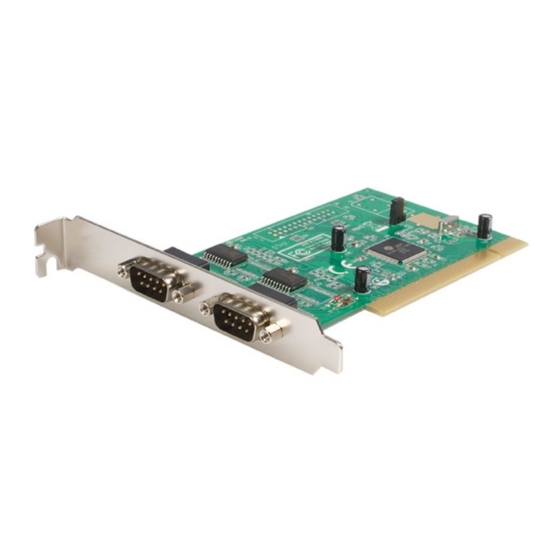

2/4/8 Port PCI RS232 Serial Card
with 16950 UART
PCI2S950
PCI4S950
PCI8S950
*PCI2S950
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 02/01/2012
Advertisement
Table of Contents
Related Manuals for StarTech.com PCI2S950
Summary of Contents for StarTech.com PCI2S950
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 02/01/2012...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Table of Contents Introduction ...............................1 Before You Begin ..............................1 System requirements ..........................1 Contents .................................2 Installation................................2 Installing the Card.............................2 Installing the Drivers ..........................3 Advanced Performance Configuration (PCI2S950 only) ............4 Specifications ..............................6 Technical Support ............................7 Warranty Information ............................7 Instruction Manual... -
Page 4: Introduction
Introduction Thank you for purchasing a StarTech.com 16950 PCI Serial card. The latest in Plug and Play expansion cards, this high-speed serial card provides your computer with two, four, or eight 16C950 UART (Universal Asynchronous Receiver-Transmitter) RS-232 serial ports (varies by model). -
Page 5: Packaging Contents
Packaging Contents • 1 x PCI serial card • 1 x Port “dongle” connector (PCI4S950 only) • 2 x Port “dongles” + 1 ribbon cable panel (PCI8S950 only) • 1 x Installation CD • 1 x Instruction Manual Installation This section will guide you through the installation of your PCI card and the related software. Please read through the instructions carefully and complete each step in the order listed. -
Page 6: Installing The Drivers
CD or want to update the existing drivers in future, please visit www. startech.com to download the most current version of the drivers. For advanced configuration instructions, consult the PDF files located in the doc folder on the installation CD. To view these files, you will need Adobe Acrobat Reader which is available as a free download from www. -
Page 7: Advanced Performance Configuration (Pci2S950 Only)
Advanced Performance Configuration (PCI2S950 only) As an option, you can choose to configure the clock frequency of your card by setting the JP15 jumper pins. You can alter this setting by placing the jumper on the pins according to the... -
Page 8: Specifications
15 Mbits/sec (asynchronous mode) 60 Mbits/sec (isochronous mode) Maximum Data Transfer Rate (Some speeds may require a different clock crystal) Connectors DB-9 RS-232 serial (male) Oxford OX16PCI952 (PCI2S950) UART Chipset Oxford OX16PCI954 (PCI4S950, PCI8S950) Regulatory Certifications FCC Class B, CE, UL Instruction Manual... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
