Configuring the Jumpers: PCI4S650PW

Power
Supply
Jumper Setting

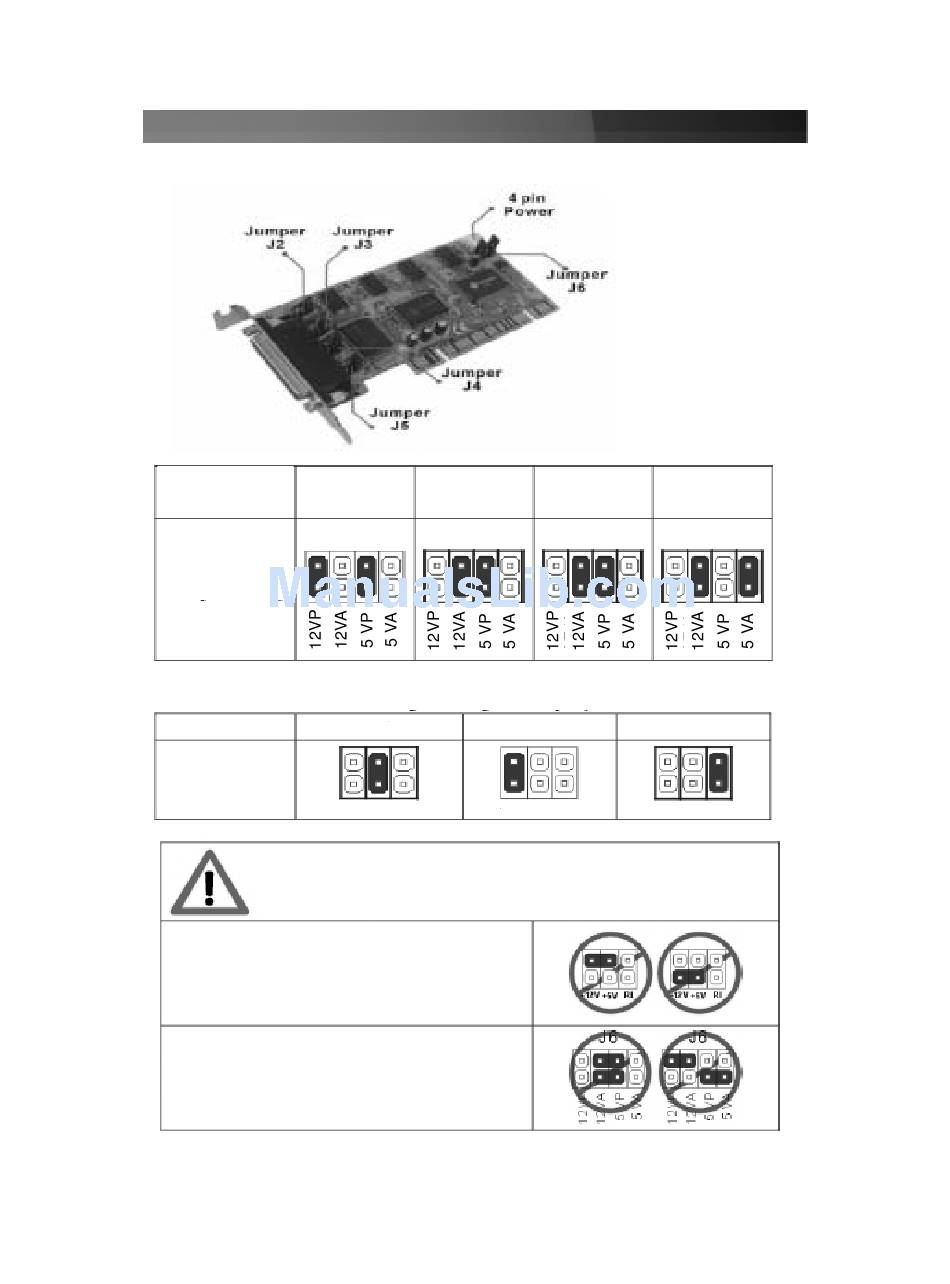

*Please select 5V, 12V, or RI Signal for COM1~COM4 using J2~J5
J2 - J5
Jumper Setting
Failure to observe these warnings could cause damage to
the serial card, computer, and peripherals.
Do not set any of the jumpers J2-J5 to supply
both 5v and 12v power at the same time.
Ensure jumper caps are placed vertically in line
with the markings on the board, not "across"
settings.
Instruction Manual
Int5V Int5V
Int12V Ext12
J6 J6
5V
+12W +5V RI +12W +5V
4
The card uses jumpers to set
internal and external power
voltages, and to configure
which serial ports will receive
5v, 12v, or RI signal
(unpowered) through the 9th
pin.
J6: Sets internal (bus) voltage
and the external power drawn
through the SP4 power
connector (external)
J2 thru J5: Sets voltage for
each individual DB9 port
Ext5V Ext5V
Int12V Ext12V
J6 J6
12V RI
RI
+12W +5V RI
