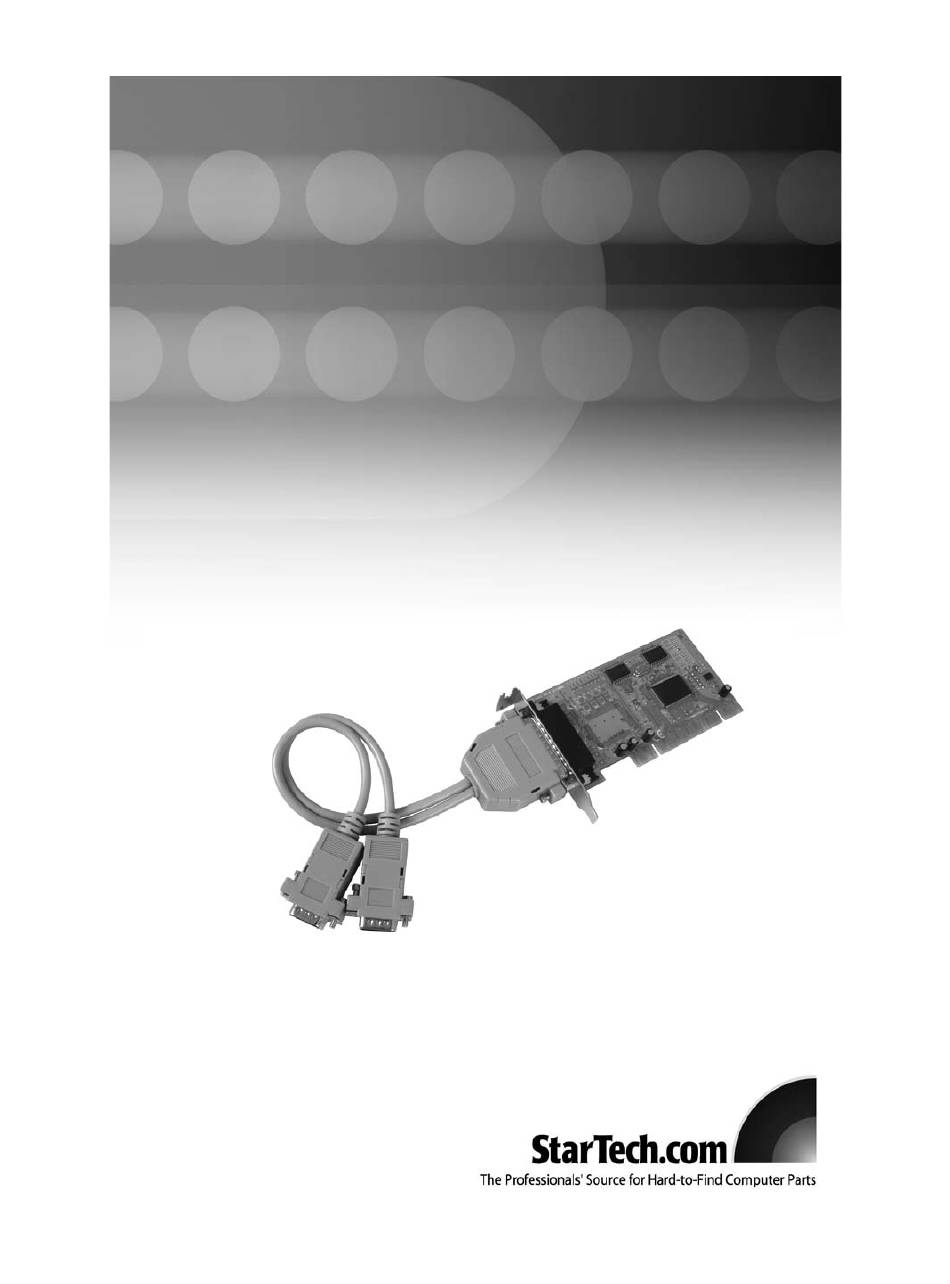

Dual Voltage Serial Card 2 Port 16650 Low Profile Dual Voltage Serial Card PCI2S650DVLP Instruction Manual Actual product may vary from photo...
Page 2
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
I I n n t t r r o o d d u u c c t t i i o o n n Thank you for purchasing a StarTech.com 16650 Dual Voltage Serial Card. This low profile PCI I/O card allows you to add two RS232 DB-9M connections to any computer with an available PCI or PCI-X slot.
Instruction Manual I I n n s s t t a a l l l l a a t t i i o o n n Installing the Serial Card 1. Shut down all power connected to the computer, as well as all devices connected to the computer peripherally (i.e.
Instruction Manual Locate the install.exe file located in \IO\PCI IO\DOS. Double-click the executable file, and follow the installation notes located in \IO\PCI IO\Manual. Verifying installation Once Windows has completed the driver installation, browse to the Device Manager to verify that the additional ports are displayed. To locate this: Open the Control Panel, System, Hardware, Device Manager.
Instruction Manual S S p p e e c c i i f f i i c c a a t t i i o o n n s s Pinout Assignment RS-232: DB9 Male Signal GROUND General Specifications Certifications (Regulatory etc.) FCC, CE, RoHS, WEEE Bus Type PCI.
Instruction Manual Troubleshooting Guide If you’re having difficulty using the Serial Card, try the following solutions based on the nature of the problem. The Operating System is not recognizing the serial card: 1) Ensure that the card is properly seated within the assigned PCI slot. Try removing the card and re-seating.
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect,...
