StarTech.com PCI2S1P2 Quick Start Manual

2S1P PCI Serial Parallel Combo Card with 16C550 UART

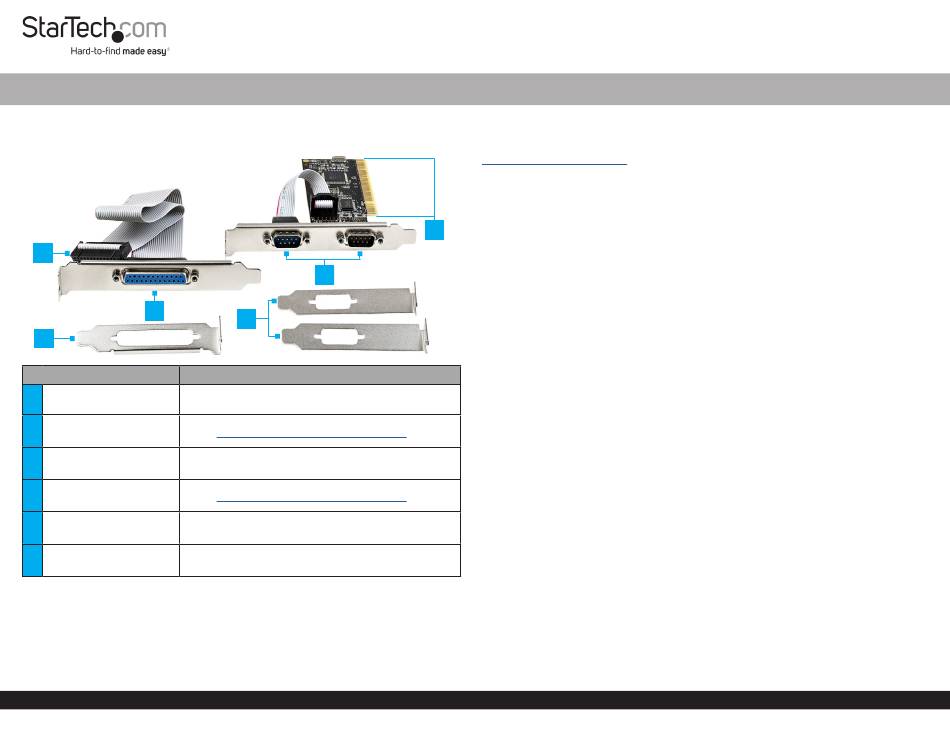

Product Diagram (PCI2S1P2)
Front View
1
3
2
Port
1 Parallel Connector • Connect to the Parallel Pins on the PCI Card
Low-Profile Bracket
2
• See
(Parallel)
• Connect a Parallel Peripheral Device
3 Parallel Port
• DB-25 Parallel (Female)
Low-Profile Brackets
4 • See
(Serial)
• Connect Serial Peripheral Devices
5
Serial Ports
• DB-9 Parallel (Male)
• Connect the PCI Card to the PCI Slot in the
6
PCI Connector
Computer
Package Contents
• PCI Serial Parallel Combo Card x 1
• Full-Profile Bracket (Installed) x 1
• Low-Profile Brackets (for Serial Ports) x 2
• Low-Profile Bracket (for Parallel Port) x 1
• Quick-Start Guide x 1
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
5
4
Function
Installing the Low-Profile Bracket(s)
Installing the Low-Profile Bracket(s)
Requirements
For the latest requirements, please visit:
www.startech.com/PCI2S1P2.
• Computer with an available PCI slot (x4/8/16)
• Needle-nose Pliers or 3/16 Nut Driver
Hardware Installation
6
Warning: PCI Cards can be damaged by static electricity. Make sure that the
Installer is properly grounded before they open the Computer Case or touch the PCI
Card. The Installer should wear an Anti-Static Strap when installing any computer
component. If an Anti-Static Strap is not available, discharge any built-up static
electricity by touching a large Grounded Metal Surface for several seconds. Only
handle the PCI Card by its edges and do not touch the gold connectors.
Installing the Low-Profile Bracket(s)
By default the Full-Profile Bracket is attached to the Serial/Parallel Port(s).
Depending on the system configuration it may be necessary to remove the Full-
Profile Bracket(s) to replace with the Low-Profile Bracket(s) (included).
1. Remove the Hexagonal Standoffs from both sides of each Port, using a 3/16 Nut
Driver or a pair of Needle-nose Pliers.
2. Remove the Full-Profile Bracket(s) and replace with the Low-Profile Bracket(s).
3. Install the Hexagonal Standoffs removed in step 1. Thread the Hexagonal
Standoffs onto each Threaded Post and tighten, using a 3/16 Nut Driver or a pair
of Needle-nose Pliers.
Installing the Card
1. Turn off the Computer and any Peripheral Devices that are connected
(e.g. printers, external hard drives, etc.).
2. Unplug the Power Cable from the rear of the Computer and disconnect any
Peripheral Devices that are connected.
3. Remove the Cover from the Computer Case.
Note: Consult the documentation that came with the Computer for details about
how to do this safely.
4. Locate an open PCI Slot and remove the corresponding Metal Cover Plate from the
rear of the Computer Case. In most instances, the Metal Cover Plate is attached
to the rear of the Computer Case with a single Screw. Save this Screw for the next
step.
Quick-Start Guide
Manual Revision: February 26, 2021
