Summary of Contents for StarTech.com PEXSATA24E

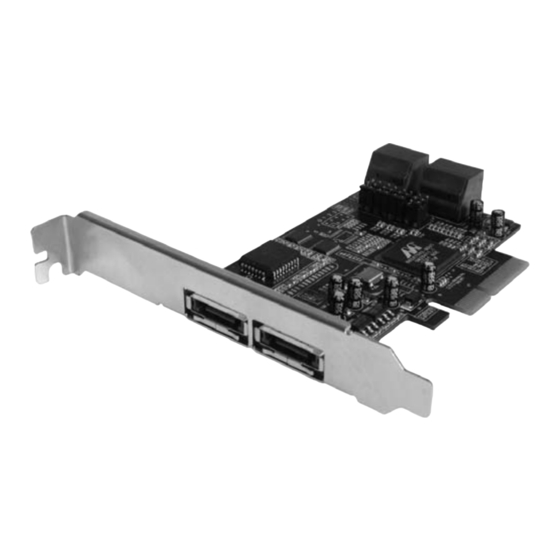

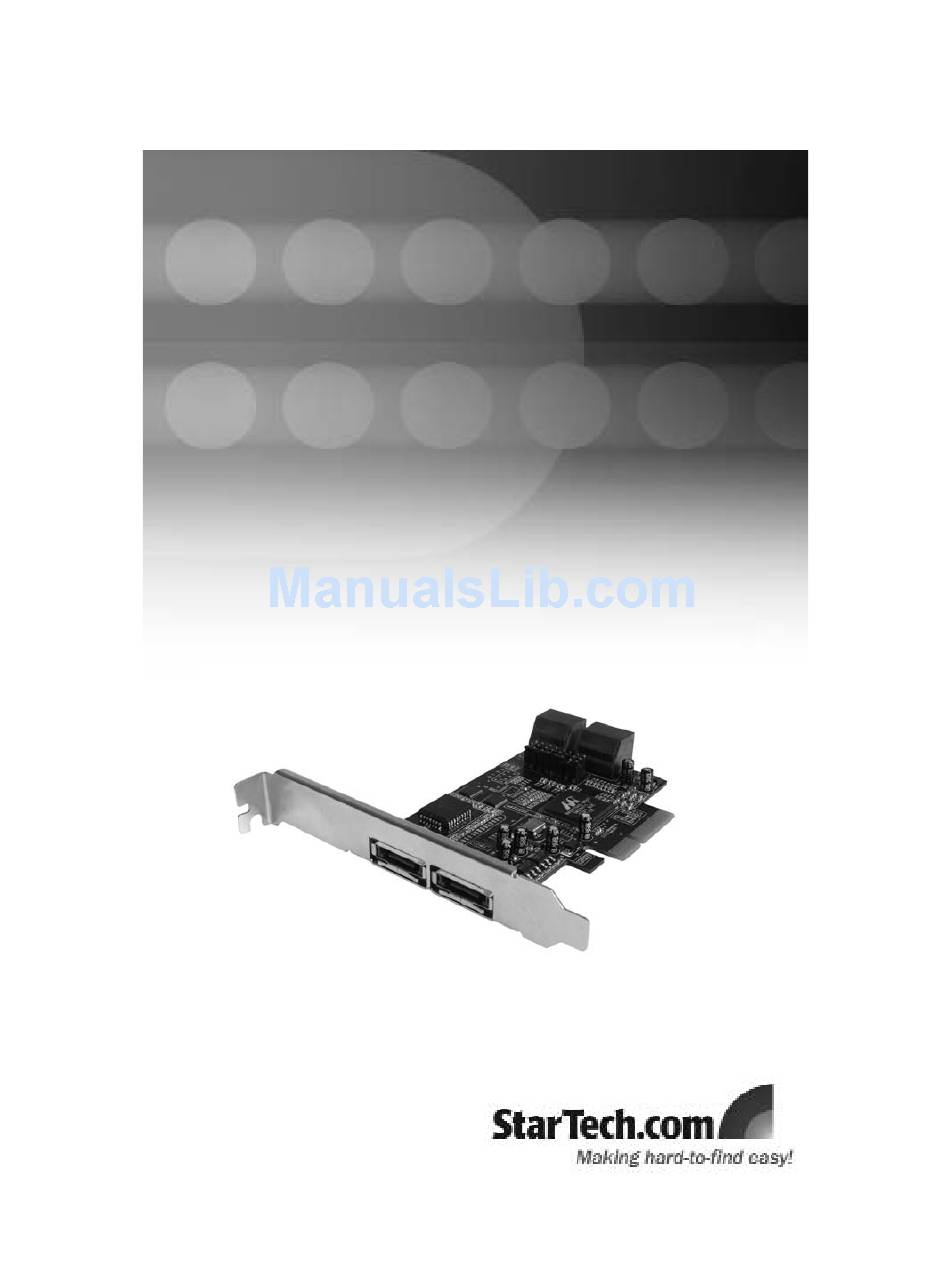

- Page 1 PCI Express SATA Card 4 port PCI Express SATA Card PEXSATA24E Instruction Manual Actual product may vary from photo...
- Page 2 This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual...
-
Page 3: Table Of Contents
Instruction Manual T T a a b b l l e e o o f f C C o o n n t t e e n n t t s s Introduction ........... . .1 Features . -
Page 4: Features
I I n n t t r r o o d d u u c c t t i i o o n n Thank you for purchasing a StarTech.com 4 port PCI-E SATA Card. Now, you’ll be able to maximize your computer SATA capability, while using only a single PCI-Express slot. - Page 5 Instruction Manual H H a a r r d d w w a a r r e e G G u u i i d d e e Please Note: There are six SATA ports available on PEXSATA24E, 4 internally and 2 eSATA connectors externally.
-
Page 6: Installation
WARNING! PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an... -
Page 7: Windows 2000/Xp/2003 Server Fresh Installation
Instruction Manual do you want to install Windows?”. From here, click on Load Driver. 10. You will then be asked to provide the necessary driver files. The files can be accessed by CD, DVD, or USB Flash Drive. As such, connect the drivers to the computer using one of these methods, and click Browse to specify the location of the files. -
Page 8: Installation Without A Floppy Drive
Instruction Manual Press [ S ] when setup asks if you want to specify an additional device, and insert the boot diskette into your floppy drive, then press [Enter] Select [Marvell Serial ATA Adapter], then press [Enter] . Press [Enter] again to finish driver installation, then follow the on-screen instructions to complete the Windows installation. -
Page 9: Verifying Successful Installation
Instruction Manual 4. Position the card above the open PCI Express slot, ensuring that the card is properly aligned with the slot. Insert the card firmly into the slot, distributing force evenly across the length of the board. Once inserted, secure the card into the adjoining socket (previously covered by metal bracket, on the rear panel of the computer chassis), using the correct size screw (if necessary, please consult documentation that accompanied purchase of computer). -
Page 10: Technical Support
L L i i m m i i t t a a t t i i o o n n o o f f L L i i a a b b i i l l i i t t y y In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their... - Page 11 United States, Canada, the United Kingdom and Taiwan. Visit www.startech.com for complete information about all our products and to access exclusive interactive tools such as the Parts Finder and the KVM Reference Guide.
