StarTech.com PEXSAT34 Spec Sheet

4 port pci express sata iii (6gbps) controller card w/ esata - pcie x4

4 Port PCI Express SATA III (6Gbps) Controller Card w/ eSATA - PCIe x4

StarTech ID: PEXSAT34

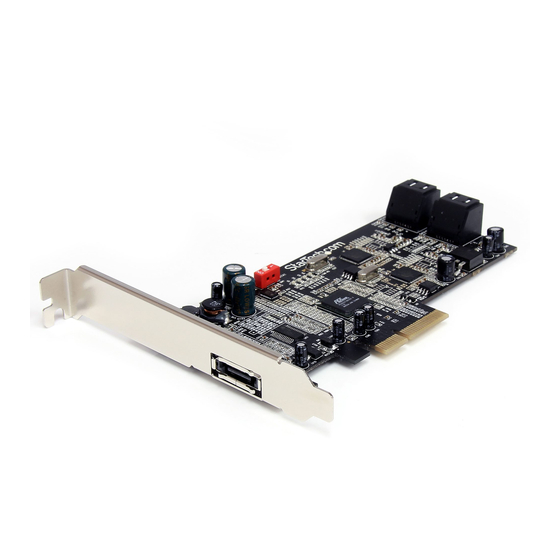

The PEXSAT34 4-port PCI Express SATA 6Gbps Controller Card adds 4 internal SATA ports, along with a

shared eSATA port to a desktop computer through a PCIe slot (x4), providing both an internal and external SATA

6Gbps connectivity solution from a single card.

Compliant with SATA revision 3.0, this controller card provides up to 6Gbps of data bandwidth to utilize the

speeds of high performance hard drives and Solid State Drives (SSD), along with Port Multiplier (PM) support on

each port which allows for multiple SATA drives to be connected over a single cable.

This PCIe SATA 6Gbps (3.0) card is backed by a 2-year StarTech.com warranty and free lifetime technical

support.

Applications

Upgrade an older PCIe-based system with SATA 6Gbps connectivity, to better utilize faster SATA drives

Add more internal SATA ports to a computer system to connect additional storage drives and/or optical

drives

Add both internal and an external SATA port to a computer through a single PCI Express x4 slot

Table of Contents

Do you have a question about the PEXSAT34 and is the answer not in the manual?

Page 1 4 Port PCI Express SATA III (6Gbps) Controller Card w/ eSATA - PCIe x4 StarTech ID: PEXSAT34 The PEXSAT34 4-port PCI Express SATA 6Gbps Controller Card adds 4 internal SATA ports, along with a shared eSATA port to a desktop computer through a PCIe slot (x4), providing both an internal and external SATA 6Gbps connectivity solution from a single card.
Page 2 Features 4 internal SATA ports with 1 shared eSATA port On-board high speed DIP switch enables switching between the shared eSATA and the internal SATA ports - no jumpers required Compliant with SATA revision 3.0, which can support up to 6Gbps of bandwidth Uses existing SATA I/II cabling Supports Native Command Queuing (NCQ) and ATA/ ATAPI commands Port Multiplier FIS-based and Command-based switching supported...
Page 3 Technical Specifications Warranty 2 Years Ports Interface eSATA & SATA Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Port Style Integrated on Card Chipset ID Marvell - 88SE9128; PLX - PEX8604 Connector 1 - PCI Express x4 Male Type(s) Internal Ports 4 - SATA (7 pin;...
Page 4 2.0 enabled computers, the max throughput is 5 Gbps per lane. Only one port can use the Port Multiplier feature at a time. Port Multiplier not supported in Mac OS. Package Quantity Shipping 0 lb [0 kg] (Package) Weight Shipping 5.6 oz [160 g] (Package) Weight...
