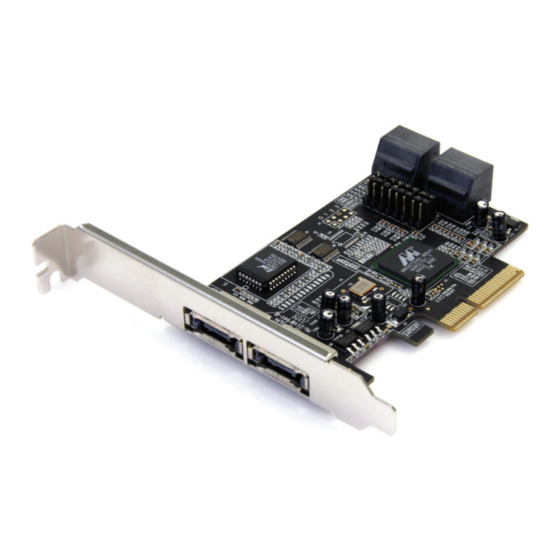

2 Port eSATA or 4 Port SATA II
PCI Express x4 Controller Card
PEXSATA24E
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 06/17/2011
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com PEXSATA24E
Summary of Contents for StarTech.com PEXSATA24E
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 06/17/2011...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Table of Contents Introduction ...............................1 Features ................................1 System Requirements ..........................1 Package Contents .............................1 Hardware Guide ...............................2 Installation................................3 Windows Vista/7 Fresh Installation....................3 Windows 2000/XP/2003 Server Fresh Installation ..............4 Windows 2000/XP/2003 Server/Vista Exisiting Installation ..........5 Verifying Successful Installation .......................6 Specifications ..............................7 Technical Support ............................8 Warranty Information ............................8 Instruction Manual... -
Page 4: Introduction
Introduction Thank you for purchasing a StarTech.com 4 port PCI-E SATA Card. Now, you’ll be able to maximize your computer SATA capability, while using only a single PCI-Express slot. With four internal SATA ports, and two eSATA ports, you’ll be able to add the speed and reliability of SATA to your internal storage, with the option of using an eSATA external storage device. -
Page 5: Hardware Guide
F. Ports A to D are internal SATA ports, while ports E and F are external SATA ports. By changing the jumper setting on PEXSATA24E circuit board, you will be able to utilize four of the ports simultaneously. Please designate which ports you wish to use, by adjusting jumper settings according to the chart below. -
Page 6: Installation
Please note: The following instructions assume that the SATA drives that will be connected to PEXSATA24E have been physically installed within the computer chassis. If this is not the case, and you require instruction on how to install the hard drive in the computer chassis, please consult the documentation that accompanied your purchase of the hard drive/computer. -
Page 7: Windows 2000/Xp/2003 Server Fresh Installation
5. If a floppy drive is available on the host system, attach PEXSATA24E to the Serial ATA drive, using a SATA (data) cable. If no floppy drive is available, please skip to the section entitled Installation Without a Floppy Drive 6. -
Page 8: Windows 2000/Xp/2003 Server/Vista Exisiting Installation
After restart, the setup process will resume installing the new drive(s). Installation Without a Floppy Drive In the absence of an available floppy drive for driver installation, once PEXSATA24E has been installed within the computer: 1. Connect the fresh (blank) drive to the motherboard SATA controller. -
Page 9: Verifying Successful Installation
(if necessary, please consult documentation that accompanied purchase of computer). 5. Attach PEXSATA24E to the Serial ATA drive, using a SATA (data) cable. 6. Repeat steps 4 and 5 for each remaining hard drive that will be connected (internally) to PEXSATA24E. -
Page 10: Specifications
Specifications 4x Internal SATA Connectors Connectors 2x External eSATA Connectors Cables 1FT sata data cable (female connectors) Chipset Marvell 88SX7042 Maximum Data Transfer Rate 300 Mbps Windows 2000/ XP(32/64bit)/ Server OS Support 2003(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2, and Linux Instruction Manual... -
