Audio output connector

Mounting the Drive

14
Installing the Drive Unit into the Computer
The audio output connector recommended is Molex 5159PBT
contacts and 5051-04 housing or 5103 PBT contacts and 5102-04
housing.

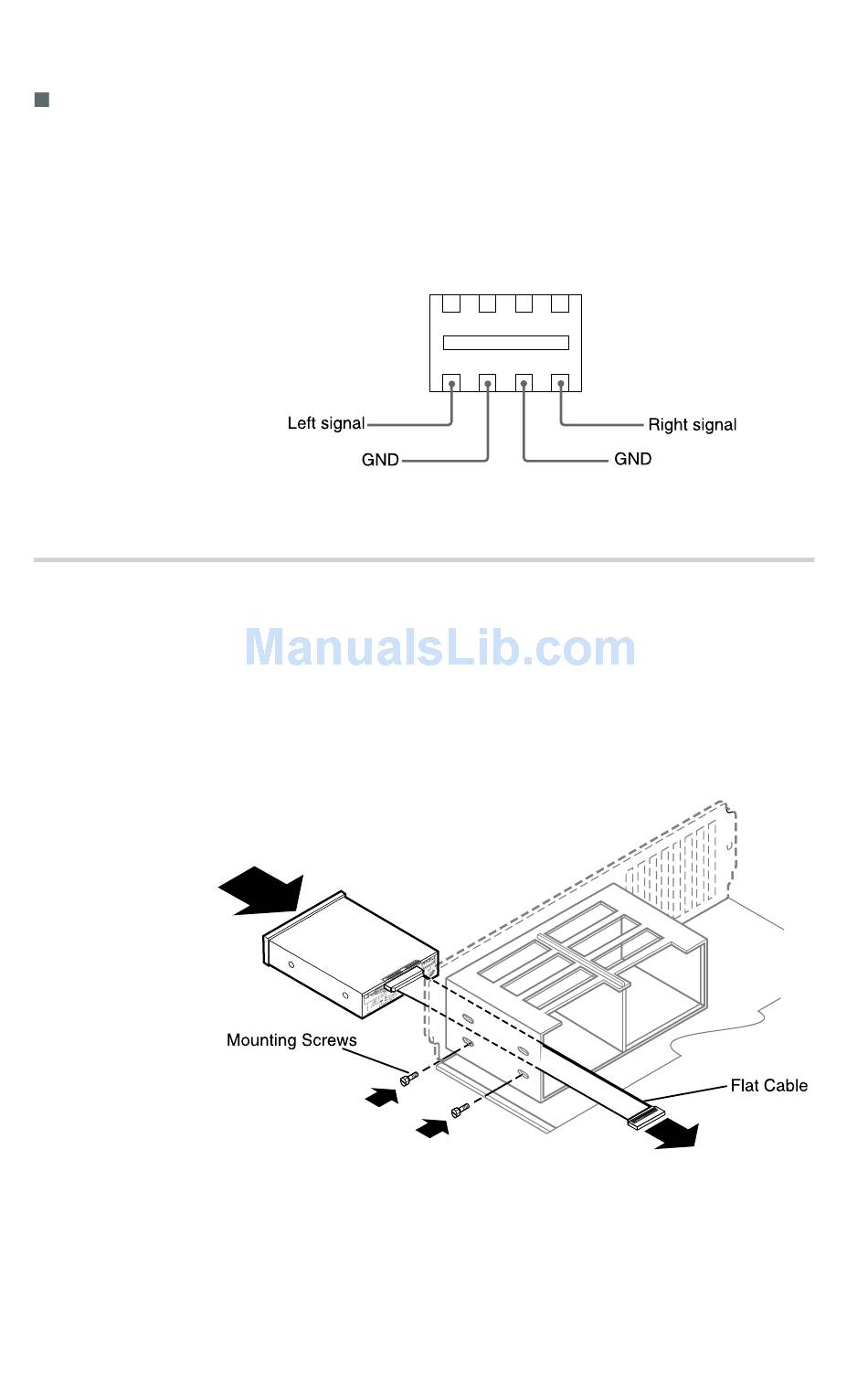

Pin assignment
1
Route the flat cable through the drive bay from the front of the
computer and insert the CD-R drive into the bay as shown.
Secure the CD-R drive to the frame by using the prepared
screws.
Note:
If you cannot secure the CD-R drive to the drive bay, you may need
to install slide rails (not included) to the CD-R drive. Refer to your
computer user's guide for additional information.
