Solid State Logic C200 Installation Manual page 69

CPU Card
'Console'
Chassis
Tx Data
9-way
Rx Data
Male
D-type
n/c
5 1
n/c
n/c
9 6
Gnd
View from
solder side
n/c
n/c
Screen
1
2
3
4
5
6
7
8
9

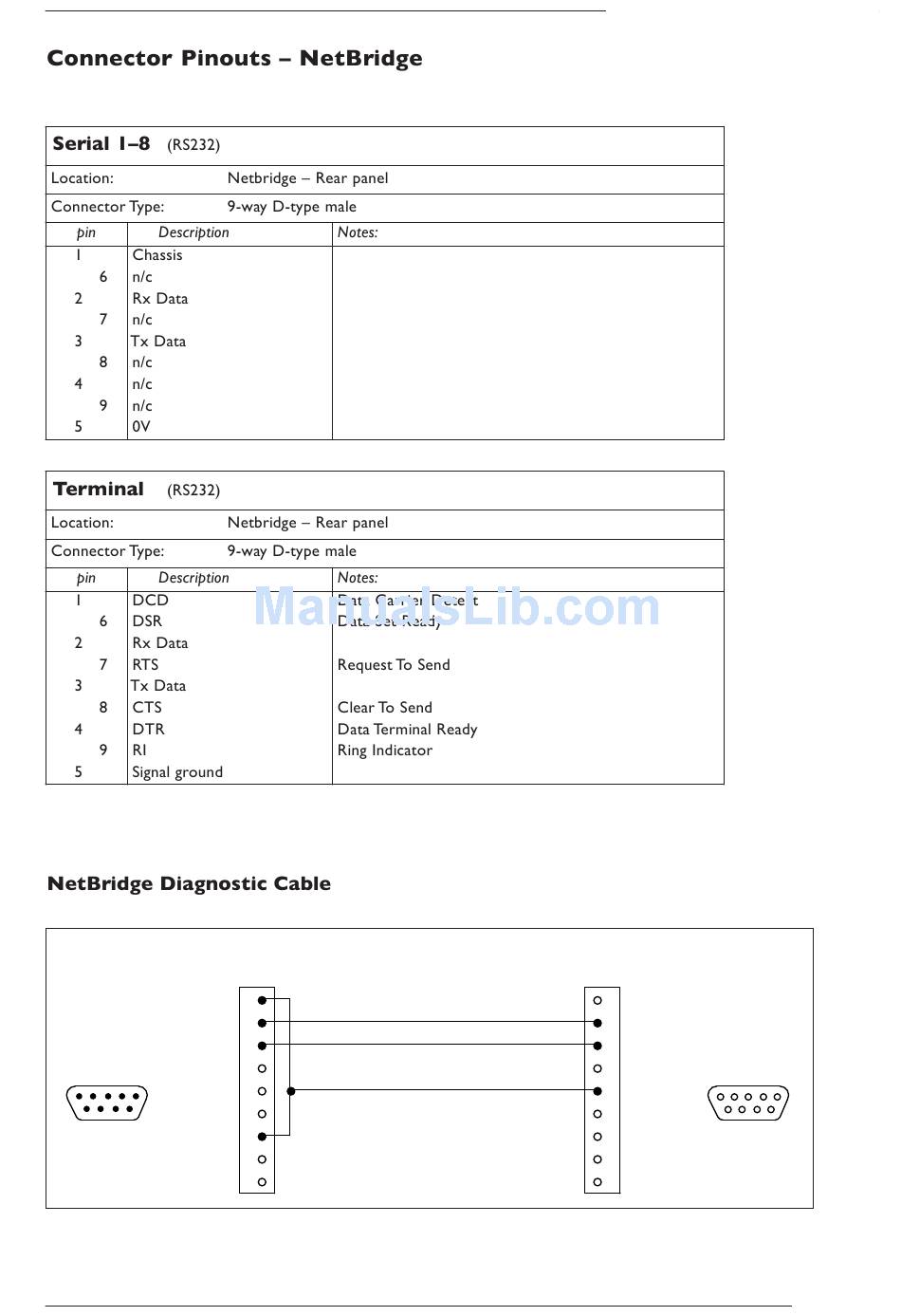

Appendix C – Connector Pinouts
NetBridge
'Serial 1 - 7'
1 n/c
2 Rx Data
9-way
3 Tx Data
Female
D-type
4 n/c
1
5 Gnd
6 n/c
6
7 n/c
View from
solder side
8 n/c
9 n/c
5
9
Page 65
