SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

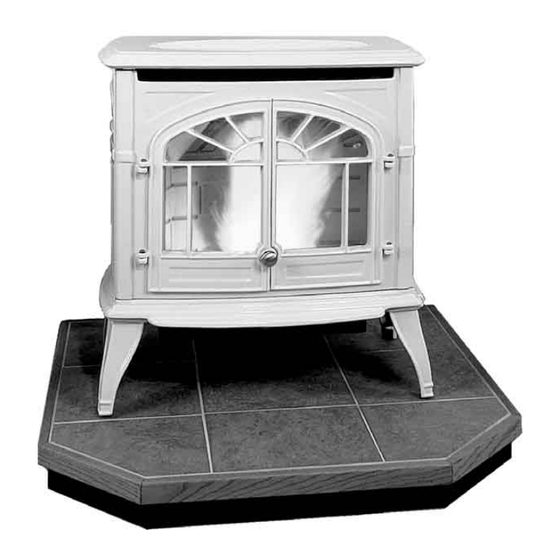

PELLET STOVE
Windsor
TECHNICAL MANUAL
����
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE
OF THIS PELLET-BURNING ROOM HEATER. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY
OR EVEN DEATH.
Contact your building or fire officials about restrictions and installation
inspection requirements in your area.
50-836

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Windsor and is the answer not in the manual?

Questions and answers

Related Manuals for Enviro Windsor

Summary of Contents for Enviro Windsor

  • Page 1 SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE PELLET STOVE Windsor TECHNICAL MANUAL ���� PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS PELLET-BURNING ROOM HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.

  • Page 2: Table Of Contents

    Table of Contents Introduction......................3 Rating Label Location..................3 Important Safety Data..................3 Safety Warnings And Recommendations............3 Operating Instructions....................5 Thermostat Installed..................5 Turning Your Pellet Stove Off................5 Slider/Damper Installation and Operation............6 Installation.......................7 Deciding Where to Locate Your Pellet Appliance..........7 Dimensions....................7 Exhaust and Fresh-Air Intake................8 Removing Your New Stove From The Pallet............8 Vent Termination Requirements...............9 Clearances to Combustibles................10...

  • Page 3: Introduction

    To prevent the possibility of a fire, this appliance must be properly installed by following the installation instructions. Please read this entire owner’s manual before installing or operating your ENVIRO pellet stove. Failure to follow these instructions may result in property damage, bodily injury, or even death. Contact your local building or fire officials to obtain a permit and anyinformation on any installation restrictions and inspection requirements for your area.
  • Page 4 Glass: Do not abuse the glass by striking or slamming the door. Do not attempt to operate the stove with broken glass. The stove uses ceramic glass. Replacement glass must be purchased from an ENVIRO dealer. Do not attempt to open the door and clean the glass while the unit is in operation or if glass is hot.

  • Page 5: Operating Instructions

    Operating Instructions HERMOSTAT NSTALLED This control board can be placed into two different thermostat modes: when the jumper is not placed on both pins of J9 then the control board is in a HI / LOW mode of thermostat operation(factory setting). If both pins of J9 are jumped then the control board is in an ON / OFF mode of thermostat operation.

  • Page 6: Slider/Damper Installation And Operation

    Operating Instructions LIDER AMPER NSTALLATION AND PERATION This is used to regulate the airflow through the pellet stove. A Qualified Service Technician or Installer should set the Slider Damper. This slider damper should be set only on a hot stove (30 minutes or more) by placing a Magnehelic Pressure Gauge in the firebox (test port located in the center of the stoves just below the door opening).

  • Page 7: Installation

    Installation ECIDING HERE TO OCATE ELLET PPLIANCE 1. Check clearances to combustibles. 2. Do not obtain combustion air from an attic, garage, or any unventilated space. Combustion air may be obtained from a ventilated crawlspace. 3. Do not install the stove in a bedroom. 4.

  • Page 8: Exhaust And Fresh-Air Intake

    Installation EMOVING TOVE ALLET ������ ��� ��� ��������� �������� ���� ������ ��� ������� �� ��� ������� ���� ��� �������� �� �� ������ ���� ��� �������� XHAUST AND RESH NTAKE INTERIOR MOUNTED EXHAUST BLOWER. Base to center of flue 10 5⁄8 in. (26.98 cm) Side to center of flue 12 1⁄8 in.

  • Page 9: Vent Termination Requirements

    Installation ERMINATION EQUIREMENTS 1. Do not terminate the vent in any enclosed or semi-enclosed areas such as a carport, garage, attic, crawlspace, narrow walkway, closely fenced area, under a sundeck or porch, or any location that can build up a concentration of fumes such as stairwells, covered breezeway, etc.

  • Page 10: Clearances To Combustibles

    Installation LEARANCES TO OMBUSTIBLES This unit MUST BE installed on a noncombustible hearth pad, extending the full width of the unit. The hearth must extend 6 inches in front of the unit for ember protection. Maintain these clearances to combustibles. SIDE WALL TO UNIT 8 INCHES (203 MM) BACK WALL TO UNIT 3 INCHES ( 76 MM) ADJACENT WALL...

  • Page 11: Horizontal Through Wall Installation

    ORIZONTAL HROUGH NSTALLATION The ENVIRO WINDSOR can be vented through the wall using two different methods. Only use vent of (L or PL) type with an inside diameter of 3” or 4” (7.6 or 10.1 cm) VENT INSTALLATION: INSTALL VENT AT CLEARANCES SPECIFIED BY THE VENT MANUFACTURER.

  • Page 12: Straight Through Wall Installations

    Installation TRAIGHT HROUGH NSTALLATIONS Wall framing The termination must be 12 inches (30 cm) from the outside wall and 12 inches (30 cm) above the ground. Horizontal frame A 45° elbow with a rodent screen may be used for thimble in place of the termination cap (or stainless steel termination hood).

  • Page 13: Vertical Installation

    Installation ERTICAL NSTALLATION 1. Choose a stove location that is ideal. See the section Deciding Where to Locate Your Pellet Appliance. 2. Place the unit on the hearth pad (if installed on a carpeted surface) and space the unit in a manner so that when the pellet vent is installed vertically, it will be 3”...

  • Page 14: Hearth Mount Installation

    Installation EARTH OUNT NSTALLATION 1. Lock fireplace damper in the open position. 2. Install positive flue connector at the fireplace dampers. 3. Connect a Tee or a 90° degree elbow to the exhaust pipe. 4. Install flexible stainless steel liner or listed pellet vent to the top of the chimney. ����...

  • Page 15: Exterior Mounted Exhaust Blower

    OUNTED XHAUST LOWER The ENVIRO WINDSOR can be equipped with an externally mounted exhaust blower. (PART # 50-492). This optional kit would include all components necessary to install the exhaust blower on any vertical wall surface. Choose a location for your stove that meets the requirements stated in this manual and allows installation with the least amount of interference to house framing, plumbing, wiring, etc.

  • Page 16: Typical Through Wall Outside Termination Intallation

    Installation YPICAL HROUGH UTSIDE ERMINATION NTALLATION NOTE: ������ ������� Ensure that all vent connections are installed by placing three screws �� ������ ����� evenly spaced around the perimeter and a small bead of high temperature �� ������ ����� ���� silicone at each chimney ������...

  • Page 17: Through Wall Vertical Intallation

    Installation HROUGH ERTICAL NTALLATION Follow the previous pages for through wall installations. Ensure that vent pipe is properly secured to wall using wall straps. Maintain clearances to combustibles on vent pipe as well as unit. ���� ��� ������� ��� �� ��...

  • Page 18: Troubleshooting

    Troubleshooting DO NOT: -Hold the ON / OFF BUTTON down. This is a momentary contact switch and can be damaged if held down too long. -Service the stove with wet hands. The stove is an electrical appliance, which may pose a shock hazard if handled improperly.
  • Page 19 Troubleshooting Ignitor- the pellets will not light. Everything else in the stove operates but the ignitor will not light the pellets • Make sure the burnpot liner is up tight and square to the ignitor tube by pushing the burn pot back against the ignitor tube.

  • Page 20: Wiring Diagram

    Wiring Diagram WHITE ARMOR CABLE SUPPLIED BLACK GREY VACUUM GREY SWITCH BLACK WHITE BLUE COMBUSTION BLOWER WHITE OPTIONAL EXTERIOR EXHAUST BLOWER BROWN POWER CORD 120°F (49 °C) EXHAUST TEMPERATURE SENSOR BROWN GROUND BLACK BLACK WHITE LIGHT BLUE BROWN COMMON THERMOSTAT 5 A FUSES 5 VDC IGNITOR...

  • Page 21: Parts List

    Part # Description Part # Description Part # Description 20-005-220V Combustion Blower 220V 50-835 Windsor Owner’s Manual - DIN 50-240 Cast Side Right - Diamond Black 50-177 Door Screen 50-836 Windsor Technical Manual - DIN 50-241 Cast Side Right -...

  • Page 22: Parts Diagram - Components

    Parts Diagram - Components...

  • Page 23: Parts Diagram - Steel

    Parts Diagram - Steel...

  • Page 24: Warranty

    Consult an ENVIRO dealer. It is recommended than only an authorized ENVIROFIRE dealer installs an ENVIRO unit. There will be no warranty coverage on parts destroyed or burnt out as a result of a consumer installation error or defect.

  • Page 25: Installation Data Sheet

    Installation Data Sheet The following information must be recorded by the installer for warranty purposes and future reference. NAME OF OWNER: NAME OF DEALER: _________________________________________ _________________________________________ ADDRESS: ADDRESS: _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ PHONE:___________________________________ MODEL:___________________________________ NAME OF INSTALLER: SERIAL NUMBER:___________________________ _________________________________________ DATE OF PURCHASE: _____________...
