You can also use special unbalanced to balanced converter boxes to connect your unbalanced equipment to the 5.1 SUB 15.
These can be purchased from most professional audio dealers.
Using the cables suitable for your equipment, connect the outputs of your processor, encoder, receiver or other device to the
XLR line inputs on the rear of the subwoofer. Using a length of speaker cable for each channel, wire the binding post speaker
outputs on the rear of the 5.1 SUB 15 to the other speakers in the system ensuring that red (+) goes to red (+), and black (-)
to black (-).

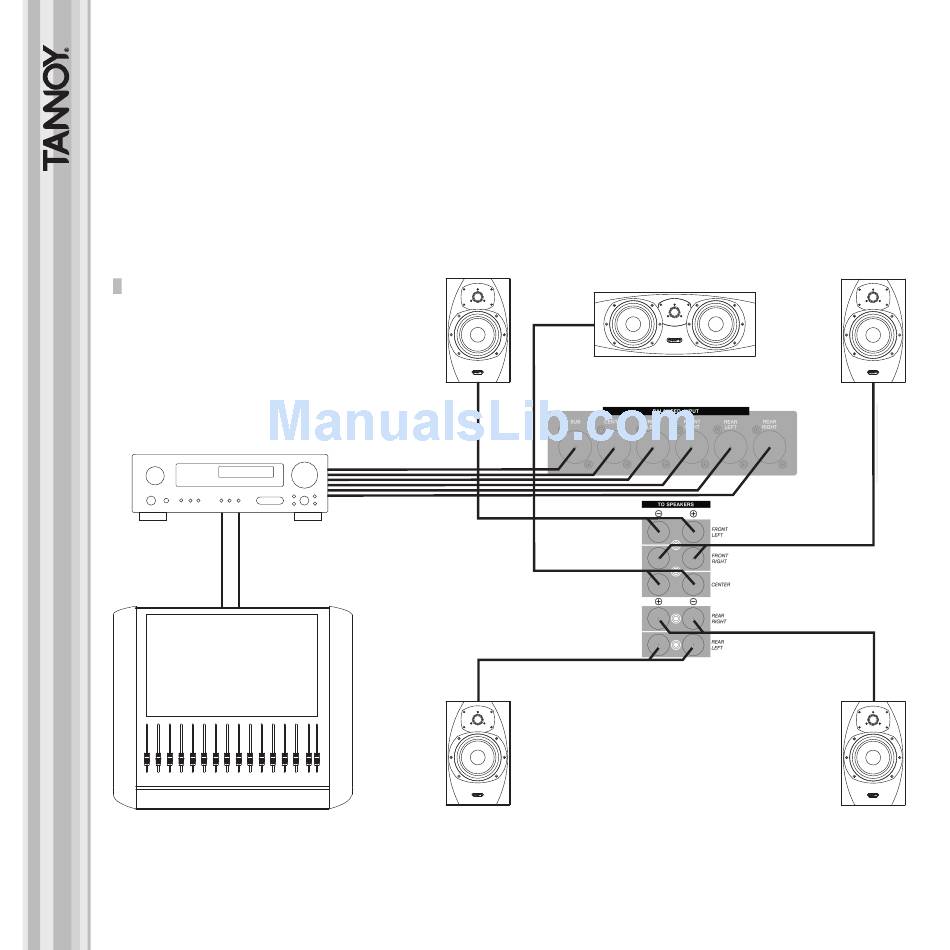

Figure 3.2 shows the typical connections in a 5.1 surround system.
Fig. 3.2.
5.1 PROCESSOR

MIXING CONSOLE

6
FL CENTRE
RL
FR
RR
