Summary of Contents for Tannoy HTS SUB

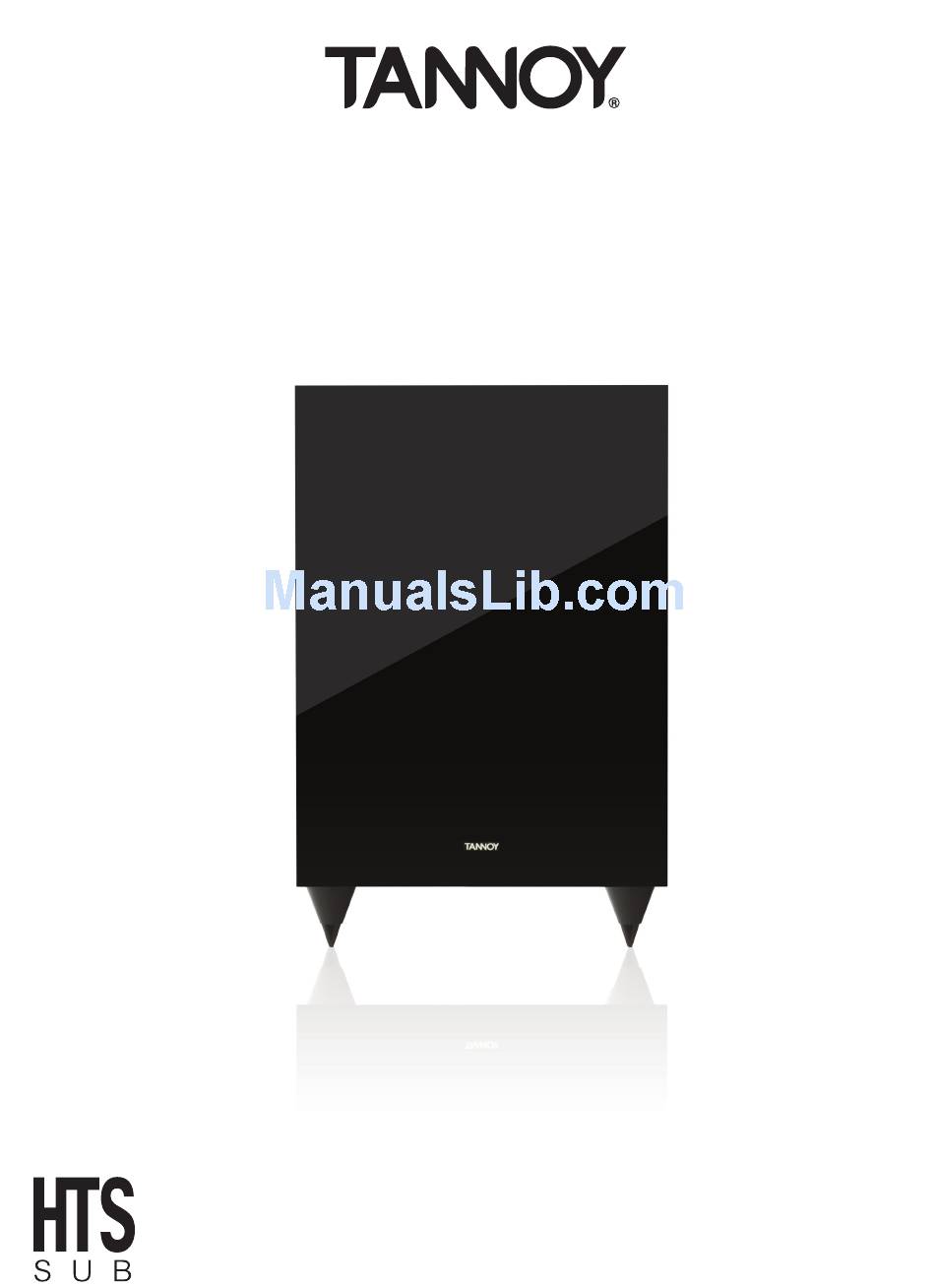

  • Page 1 Owner’s Manual...

  • Page 2: Table Of Contents

    CONTENTS IMPORTANT SAFETY INSTRUCTIONS FUSE PROTECTION IMPORTANT NOTICE FOR THE UNITED KINGDOM (CONNECTING THE PlUG AND CORD) WARNING - STRONG MAGNETIC FIElD ElECTROMAGNETIC COMPATIBIlITY WARRANTY CONNECTING THE HTS SUBWOOFER TO YOUR SYSTEM AlTERNATIVE METHODS OF SUBWOOFER CONNECTION SETTING UP TO lISTEN AUTO POWER/ SlEEP FUNCTION CARE OF CABINET TECHNICAl SPECIFICATION...

  • Page 3: Important Safety Instructions

    1 IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Caution, do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. WARNING: Sharp points on supporting feet.

  • Page 4: Fuse Protection

    If you suspect a problem with your loudspeaker, please contact your local Tannoy dealer who will be able to advise on appropriate action. If you require further assistance, then we ask you to deal directly with your local Tannoy distributor.

  • Page 5: Connecting The Hts Subwoofer To Your System

    7 CONNECTING THE HTS SUBWOOFER TO YOUR SYSTEM This high performance subwoofer has been built and tested with care and precision, to provide first class performance and reliable operation. To ensure maximum benefit from ownership, and for reasons of safety, please read the following information before using for the first time.

  • Page 6: Setting Up To Listen

    9 SETTING UP TO lISTEN • As the subwoofer produces bass sounds only, it is difficult to detect its location by ear. Ideally though, position the subwoofer alongside the wall nearest to the screen. A corner position will produce more bass output for a given volume setting.

  • Page 7: Technical Specification

    12 TECHNICAl SPECIFICATION Power Output 100 Watts Frequency Response (-6dB) 29Hz – 200Hz Crossover Frequency 50Hz – 200Hz, variable control Driver 200mm (8”) paper cone, long throw Inputs LFE / Line Input (RCA / phono), or Left & Right speaker level inputs Power Requirements 115 or 230V AC Nominal, 50- 60Hz (switchable), 60VA maximum...

  • Page 8: Amp Panel

    13 AMP PANEl...

  • Page 9: Declaration Of Conformity

    14 DEClARATION OF CONFORMITY The following apparatus is/are manufactured in China by Tannoy Ltd of Rosehall Industrial Estate, Coatbridge, Scotland, ML5 4TF. The following equipment is marked with the CE label and conform(s) to the protection requirements of the European Electromagnetic Compatibility Standards and Directives.
  • Page 10 NOTES...
  • Page 11 NOTES...
  • Page 12 T: 00 49 (180) 1111 881 E: anfragen@tannoy.com TC|Group International T: 00 45 8742 7000 E: info@tcgroup-international.com TC|Group Americas T: 00 1 (519) 745 1158 E: info@tcgroup-americas.com Tannoy adopts a policy of continuous improvement and product specification is subject to change.
