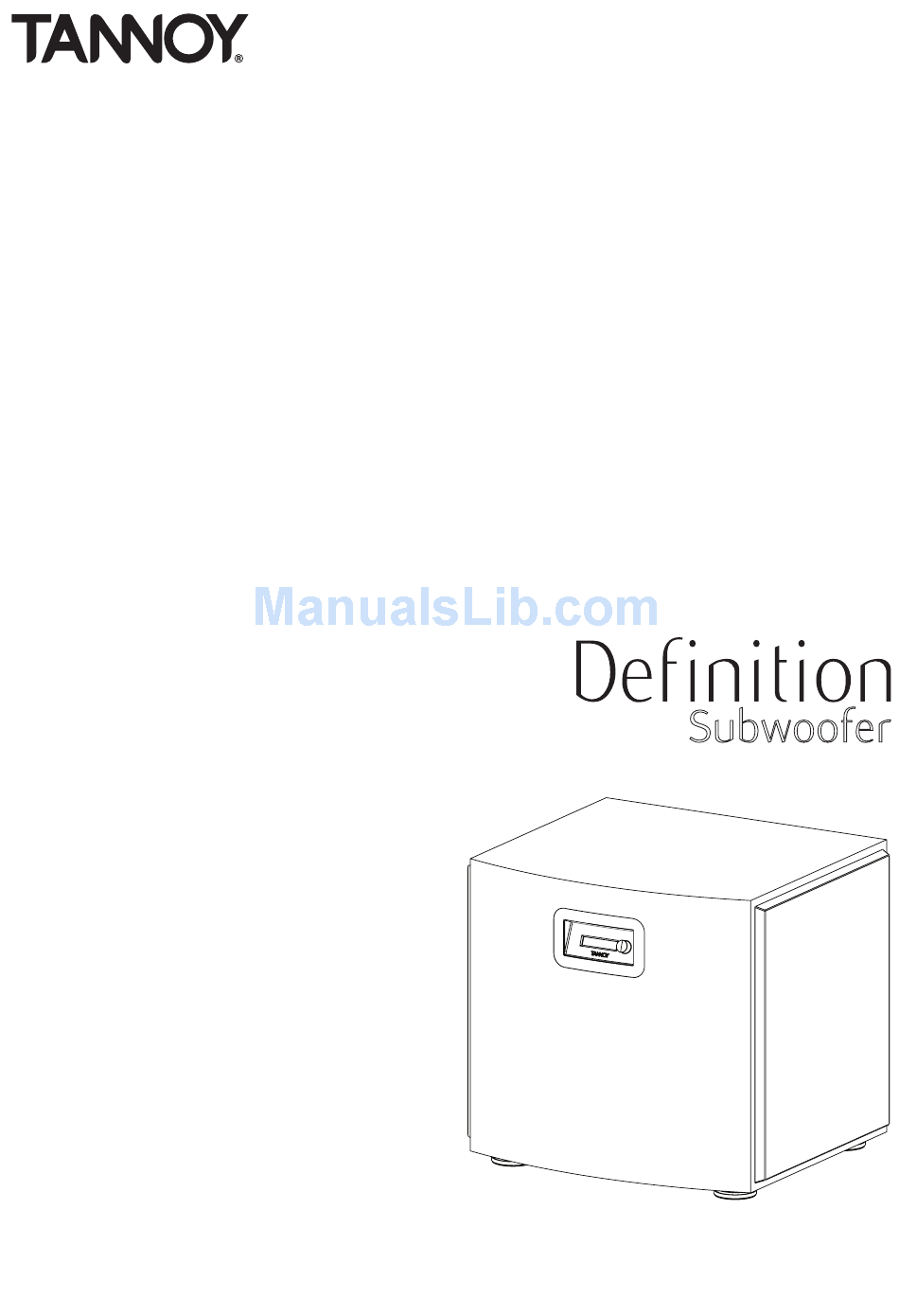

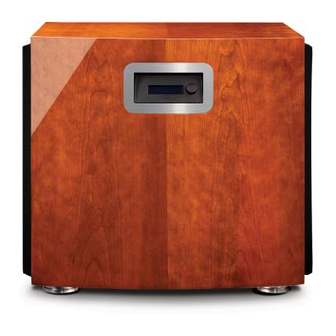

- Page 1 O W NE R ’ S M AN U A L DEFINITION SUBWOOFER OWNER’S MANUAL _01...
-
Page 2: Important Safety Instructions
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Route the power cord to prevent risk from being walked on or pinched by objects, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. To completely disconnect this equipment from the mains, disconnect the power supply cord plug from the receptacle. 12. The mains plug of the power supply cord shall remain readily operable. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. This apparatus has been equipped with a rocker type AC mains switch. The switch is located on the rear panel and should remain readily accessible to the user. 15. Only use attachments/accessories specified by the manufacturer. 16. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 17. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used use caution when moving the cart/apparatus combination to avoid injury from tip-over. The below warnings are located on the rear of the unit: WARNING: FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS COULD RESULT IN FIRE, ELECTRIC SHOCK, OR OTHER INJURY OR DAMAGE. Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel. Check that the voltage rating displayed on the rear panel is correct for your area before connecting. If it is incorrect, please refer to your local dealer or authorised service agent. Use only with the detachable power cord supplied with the apparatus, or by your local distributor or dealer. 02_ DEFINITION SUBWOOFER OWNER’S MANUAL... - Page 3 FCC INFORMATION (USA ONLY) CAUTION: Any change or modification to this unit could void your authority to operate this equipment, granted by the FCC. This apparatus has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used according to these instructions, may cause harmful interference to other electronic equipment. However, there is no guarantee that interference will not occur in all installations. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the distance between the equipment and the receiver. • Connect the equipment to an outlet on a different circuit than the receiver. • Consult your dealer or an experienced radio / television technician for help. IC INFORMATION (CANADA ONLY) This Class B digital apparatus complies with Canadian regulation ICES-003. Cet appareil numérique de Classe B est conforme à la norme NMB-003 du Canada. This equipment has undergone safety and EMC testing, and complies with the European Low Voltage Directive 2006/95/EC and Electromagnetic Compatibility Directives 89/336/EEC and 2004/108/EC. ECODESIGN STANDBY POWER CONSUMPTION This apparatus is designed to comply with EU Directive 2009/125/EC and Regulation 1275/2008. When in standby mode, power consumption is less than 0.5 W. DEFINITION SUBWOOFER OWNER’S MANUAL _03...
-
Page 4: Table Of Contents
TECHNICAL SPECIFICATIONS WARRANTY No maintenance of this Tannoy product is necessary. Please register your Tannoy product online at www.tannoy.com. All of our products have been produced and tested with care and precision to give first-class service. All passive components are guaranteed for a period of five years from the date of purchase from an authorised Tannoy dealer subject to the absence or evidence of misuse, overload, or accidental damage. All active and electronic components are guaranteed for a period of two years from the date of purchase from an authorised Tannoy dealer subject to the absence of, or evidence of, misuse, overload or accidental damage. If at any time during this warranty period the equipment proves to be defective for any reason other than accident, misuse, neglect, unauthorised modification or fair wear and tear, we will repair any such manufacturing defect or, at our option, replace it without charge for labour, parts or return carriage. If you suspect a problem with a Tannoy product, in the first instance, discuss it with your Tannoy dealer. If you require further assistance then we ask that you deal directly with your local Tannoy distributor. If you cannot locate your distributor please contact Tannoy Customer Services, at the address given below. Customer Services, Tannoy Ltd., Rosehall Industrial Estate, Coatbridge, North Lanarkshire, ML5 4TF, Scotland Telephone: +44 1236 420199 Fax: +44 1236 428230 Email: enquiries@tannoy.com DO NOT SHIP ANY PRODUCT TO TANNOY WITHOUT PREVIOUS AUTHORISATION Our policy commits us to incorporating improvements to our products through continuous research and development. Please confirm current specifications for critical applications with your supplier. 04_ DEFINITION SUBWOOFER OWNER’S MANUAL... -
Page 5: Introduction
We are confident that you will continue to enjoy your new Tannoy Definition Subwoofer for many years to come. UNPACKING To unpack the Subwoofer, remove the tape from the top of the carton then fold the flaps right back before inverting the carton and contents. Lift the carton clear of the contents, then remove all inner packaging. Check carefully for any sign of transit damage. In this unlikely event, notify your shipping company and/or dealer as soon as possible for advice. It is recommended you store all the packaging to allow protected transport in future. Ensure that the following accessories are present: • Mains cord appropriate to your country of use. POSITIONING The performance of any subwoofer is greatly influenced by the room placement. Corner placement will increase the amount of bass by using either of the corners next to the front channel loudspeakers. Placing centrally along this wall will result in less bass, while moving the subwoofer out into the room will give less bass still. Be prepared to experiment with both position and the subwoofer controls to get the best results. Remember that the function of a subwoofer is to enhance the output of your main speakers, not overpower it. CONNECTING TO YOUR SYSTEM ALWAYS MAKE AND CHECK ALL CONNECTIONS BEFORE PLUGGING THE SUBWOOFER INTO THE MAINS. LINE LEVEL INPUTS For use with an AV receiver or DVD receiver, connect a screened phono cable from the receiver SUB output to either RIGHT or LEFT low level phono input on the rear of the Subwoofer. If you are using the Subwoofer with a 2 channel or stereo system and your preamplifier has a spare set of outputs, connect left and right to the Subwoofer L and R inputs using screened phono cables. Alternatively, for AV equipment or stereo preamplifiers that offer balanced operation, connection may alternatively be made using the XLR input(s). HIGH-PASS OUTPUTS These are provided for stereo applications to feed your main loudspeaker pair power amplifier. This function will roll off the lower frequencies to your loudspeakers, to give a seamless integration to the Subwoofer. Again, connectivity is by phono or balanced XLR connections. DEFINITION SUBWOOFER OWNER’S MANUAL _05... -
Page 6: Controls And Adjustments
‘Hi- LEVEL’, to optimise the range of the volume adjustment (see Specifications). Adjustments are by means of the rotary encoder on the display panel. Functions are selected by either turning the control, or single and double clicking. The full menu structure and operation is explained in the FUNCTION CHART. • VOLUME - This enables the output level to be set in 1 dB steps from -100 dB to 0 dB. • HIGH-PASS - This enables or disables the HIGH-PASS output sockets, and provides a low frequency roll off, when used with a pair of stereo loudspeakers at either 12 of 24 dB per octave, variable between 31- 125 Hz. • LOW-PASS - This is used to adjust the Subwoofer’s upper frequency limit to achieve a correct balance with the main speakers. An adjustment range of 31 Hz to 125 Hz is provided, again with 12 or 24 dB per octave filtering. For use in LFE mode (Low Frequency Effects), where the filters in the AV receiver are left to set the transition to the main speakers, generally the LOW-PASS filter should be set to disabled. This is the most common form of operation, but refer to the manual of your AV receiver for more details. Sometimes, in a difficult acoustic environment, it is beneficial to provide additional filtering within using the Subwoofer’s controls, even though the AV receiver has been set in LFE mode. • PHASE - This can be adjusted between 0 degrees (in phase) to 180 degrees (fully out of phase), in 15 degree increments. The correct setting depends on room acoustics and the position of the Subwoofer in the room. Starting with the 0 degrees setting, then the 180 degree setting, see which one results in the greatest amount of bass at the listening position, being aware that all bass frequencies should sound evenly balanced. This is generally easier to achieve using music. If neither setting is satisfactory, try the intermediate settings. • PARAMETRIC EQUALISER - Two equalisers are provided to give a boost or cut to a narrow range of frequencies to compensate for room effects or to suit individual taste, and either or both may be enabled or disabled. A centre frequency may be set between 31- 125 Hz, with a range of -12 to +3 dB. Q or sharpness of the boost or cut may be adjusted between 2.0 and 14.4, lower values representing a wider frequency range, and higher ones a narrower range. • PRESET - This function enables any of the above adjustments to be saved or loaded in 3 memory locations. The user, for example may have different preferences for music, movies or late night listening. GRILLES The side speaker grille assemblies are attached by hidden magnets, and can be removed if desired. CARE OF CABINET Clean only with a soft dry cloth. 06_ DEFINITION SUBWOOFER OWNER’S MANUAL... -
Page 7: Function Chart
FUNCTION CHART DEFINITION SUBWOOFER OWNER’S MANUAL _07... -
Page 8: Rear Panel Layout
REAR PANEL LAYOUT 08_ DEFINITION SUBWOOFER OWNER’S MANUAL... -
Page 9: Technical Specifications
Driver type 2 x 300 mm (12”) High Excursion, Aluminium cone, side firing 50 mm (2”) voice coil, field stabilised Ferrite Motor System Enclosure type Closed box Volume 94 Litre (3.32 cu. ft.) Dimensions, (H x W x D) 514 mm (20.24”) x 562 mm (22.13”) x 493 mm (19.41”) Including feet, grilles & terminals Weight 38.5 kg (84.9 lbs) Mains voltage 230 V or 115 V (nominal), factory set, 50 - 60 Hz Standby power consumption < 0.5 W (EUP Compliant) Additional features 3 x User defined presets Variable phase control, 0- 180 degrees Parametric Equaliser x 2, -12/ +3 dB Range, 31-125 Hz, Q= 2- 14.4 DEFINITION SUBWOOFER OWNER’S MANUAL _09... - Page 10 010_ DEFINITION SUBWOOFER OWNER’S MANUAL...
- Page 11 DEFINITION SUBWOOFER OWNER’S MANUAL _011...
- Page 12 Tannoy Limited - product designed and engineered in the United Kingdom. Tannoy adopts a policy of continuous improvement and product specification is subject to change. Copyright© 2012 Tannoy Limited. All rights reserved. tannoy.com 012_ DEFINITION SUBWOOFER OWNER’S MANUAL...
