initial setup

camera and power connections

Step 1 ... connecting devices

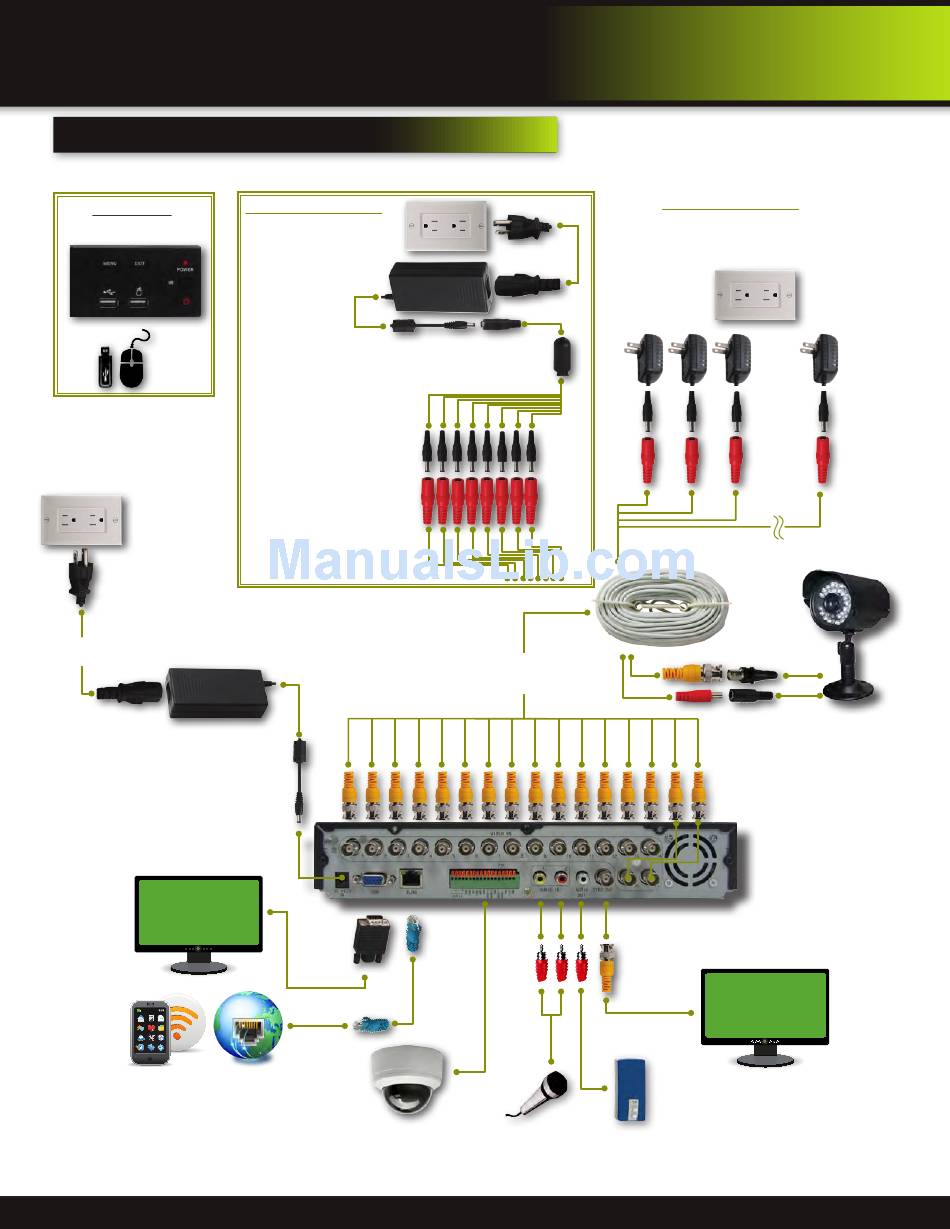

Follow this diagram to make device connections. This diagram is for illustration purposes only. Cabling and other accessories
shown are not included with this DVR unless indicated. See "What's in the Box" for included devices.
DVR Front Face
Connect Mouse &
USB Drive
DC Converter - 12V
Power
(included with this DVR)
from 120V
VGA to PC Monitor or TV
(Monitor and Cable Not included)
Smartphone RJ45 Ethernet
through Mobile to Router and
Internet Setup
(Smartphone Not
included)
Powering Cameras
Power from a single
Power Adaptor and 8-way
splitter. 2 required.
Not included.
DC Converter - 12V
Note: To reduce the number of
single camera power adaptors
required, you may be able to
use a larger power adaptor
(3A or 5A) and a splitter cable.
Contact your local security
camera accessories dealer
for help in matching splitter,
cable, camera and power
adaptor requirements.
Power to Cameras
BNC Video/DC Power Cable:
(1 per Camera). Note: Cables ,
Power Adaptors and Cameras
not included
Power to DVR
Internet
PTZ & Alarm Connections
(Cameras not included)
Power
from 120V
Splitter -
8 camera
To each DVR
Channel 1-16
RCA Audio In from
2 Audio Cameras or
Powered Microphone
(Not included)
Page 6
Powering Cameras
Power from each Camera Adaptor
that came with your camera.
Not included
Power to 1 to 16 Cameras
Video to Camera
Power to Camera
BNC to Security Camera Monitor
(Monitor and Cable Not included)
RCA Audio Out to
Powered Speakers
(Not included)
Power
from 120V
12V DC
Converter
