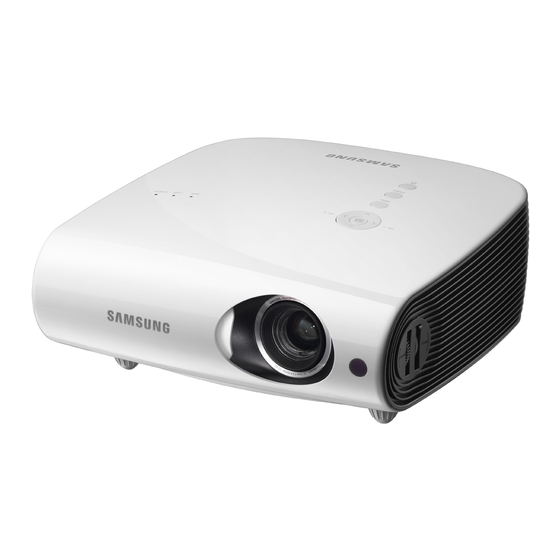

Summary of Contents for Samsung SP-L330W - LCD Proj XGA 500:1 3330 Lumens HDmi S-vid 8.4LBS Spkrs
- Page 2 To avoid injuries or damage to property, please read the following precautions carefully and use the product accordingly. Failure to follow the instructions marked with this symbol may cause personal injury or even fatality. Failure to follow the instructions marked with this symbol may cause personal injury or damage to the product or property.
- Page 3 out from the mains socket, therefore the mains plug shall be readily operable. There is a danger of electric shock or fire. Always unplug the unit by holding the power plug. Pulling the power cable may damage the inside of it. There is a danger of fire.
- Page 4 Do not install on an unstable location, or on a stand smaller than the product. If the product falls it may harm children. Install on a flat and stable location as the front part is heavy. In case of thunder/lightning, disconnect the power cord from the wall outlet.
- Page 5 disconnect the power cord from a wall outlet and contact a Service Center. Do not disassemble, or attempt to fix or modify the product. When the product requires repairs, contact a Service Center. Do not use or keep the product near flammable sprays or other such substances.
-
Page 6: Correct Disposal Of This Product (Waste Electrical & Electronic Equipment) - Europe Only
product using a soft dry cloth. Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, air freshener, lubricant or detergent. When not using the product for an extended period of time, disconnect the power plug. Otherwise, this may cause heat emission from the accumulated dirt or degraded insulation, leading to electric shock or fire. -
Page 7: Correct Disposal Of Batteries In This Product - Europe Only
Correct disposal of batteries in this product - Europe only (Applicable in the European Union and other European countries with separate battery return systems.) This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. - Page 8 Product Features Product Views Remote Control Product Specifications An optical engine adopting new LCD technology - 1024 x 768 panel has been adapted. - Utilizes a 3P-LCD panel. - SP-L330： Provides a bright screen of 3300 lumen. SP-L350： Provides a bright screen of 3500 lumen. - Compact size, lightweight, and good portability Minimized fan noise - Minimizes the noise generated by the product’s fan by optimizing the internal air flow and fan...
- Page 9 1. Indicators 5. POWER( ) Button - STAND BY (Blue LED) Used to turn the projector on or off. - LAMP (Blue LED) - TEMP (Red LED) 6. Lens ※ Refer to the Indications. 7. Remote Control Signal Receiver 2. VOL - / + & Select and Move Button Adjusts the volume.
- Page 10 Remote Control/ 1 Batteries (CR2025) Power Cable Cleaning Cloth (Not available in all locations) D-Sub Cable LED Indications :Light is On :Light is Blinking :Light is Off STAND LAMP TEMP Information If you press the POWER button on the remote control or projector, the screen ○...
- Page 11 projector is turned off automatically. If the internal temperature of the projector has increased beyond the operation limit, it is changed to Cooling mode before it is turned off automatically. This indicates that the projector * Cooling mode: The fan speed has increased and the lamp of the has changed to Cooling mode, projector has been changed automatically to ECO mode.
- Page 12 3. HDMI/DVI IN Input port 9. PC IN 1,2 Input port 4. PC 1/DVI AUDIO IN Input port 10.[PC IN2] AUDIO Input port 5. RS-232C port (For service only) 11.Remote Control Signal Receiver 6. [AV IN] R-AUDIO-L Input port 12.POWER Input port Product Features Product Views Remote Control...
- Page 13 Used to flip or reverse the projected image. 7. BLANK This is used to turn off the video and audio temporarily. It is released when any button other than the POWER button is pressed. 8. P.SIZE Used to adjust the size of picture screen. 9.
- Page 14 Power 220W (Normal : 200W, Eco : 152W ) Consumption Lamp Life Time 2,000 Hours (Eco : 2,500 Hours ) D-Sub 15p x 2 Analog RGB, analog YPbPr HDMI Digital RGB, digital YCbCr Input Terminal Mini DIN x 1 S-Video RCA x 1 Composite video Speaker...
- Page 15 VESA 1280 x 720 70Hz 52.500 70.000 89.040 VESA 1280 x 720 72Hz 54.072 72.000 91.706 VESA 1280 x 720 75Hz 56.456 74.777 95.750 VESA 1280 x 768 60Hz 47.776 59.870 79.500 VESA 1280 x 768 75Hz 60.289 74.893 102.250 VESA 1280 x 800 60Hz...
- Page 17 Basic Settings Connecting the Power Connecting an External Device Installing the Projector Install the projector so that the beam from the projector is perpendicular to the screen. Place the projector so that the lens is at the center of the screen. If the screen is not vertically installed, the picture on the screen may not be a rectangle.
- Page 18 You can adjust the size of image within zoom range by manipulating the Zoom Knob. Focus the picture on the screen using the Focus Ring. If your product is installed at a location out of the specified projection distance (refer to Screen Size and Projection Distance), the focus cannot be adjusted correctly.
- Page 19 5283.2 3962.4 9106 7587 5486.4 4114.8 9457 7880 5689.6 4267.2 9809 8173 5892.8 4419.6 10160 8466 6096.0 4572.0 10512 8759 This projector is designed to show images optimally on a 80 ~ 120 inch sized screen. A. Screen Z: Projection distance Y': Distance from Lens Center to Image Bottom Adjusting the H-Keystone 1.
- Page 20 30.1 31.4 32.4 10.2 33.4 2. Select one from Front-Floor, Front-Ceiling, Rear-Floor and Rear-Ceiling according to the location to install the projector. 3. Set the values of the H-Keystone and the V-Keystone to '0' and place the zoom knob right in the middle of its movement range. 4.
- Page 21 → Keep adjusting until the vertical line on the Test Pattern becomes parallel with the outer vertical line on the screen. 8. Press the ▲ or ▼ button to select H-Keystone. Adjust H-Keystone using the + or - button on the remote control. - A : Projector - B : Screen - C : Projected image...
- Page 22 <Display Properties> tab will appear. Click on [Settings] tab and set the <Screen resolution> by referring to <Resolution> described in the display mode table supported by this projector. You do not have to change <Color quality> setup. Press the [Advanced] button. Another property window will appear.
- Page 23 Basic Settings Connecting the Power Connecting an External Device 1. Rear of Projector Plug the power cord into the power terminal on the rear of the projector. Basic Settings Connecting the Power Connecting an External Device Connecting a PC using the D-Sub cable Check that your PC and projector are turned off.
- Page 24 Check that your PC and projector are turned off. Connect the [HDMI/DVI IN] terminal of the projector to the HDMI or DVI terminal of your PC using a HDMI/HDMI or HDMI/DVI cable (Not supplied). - When connecting to the HDMI terminal of your PC, use an HDMI cable (Not supplied). - For the supported input signals, refer to "PC Timing(D-Sub/HDMI)".
- Page 25 Connect the [PC IN 1] terminal at the back of the projector to the D-Sub terminal of your PC using a D-Sub cable. Connect the [PC OUT] terminal of the projector to the D-Sub terminal of a monitor using a D-Sub cable. - When connecting a monitor using the [PC OUT] function, make sure to connect your PC to the [PC IN 1] terminal.
- Page 26 First, check that the AV device and your projector are turned off. Connect the [PC IN (1 or 2)] terminal at the back of the projector to the D-Sub terminal of your AV device using a D-Sub cable. - For supported input signals, refer to the "AV Timing (D-Sub)".
- Page 27 First, check that the AV device and your projector are turned off. Connect the [VIDEO] or [S-VIDEO] terminal and the AV device using a Video cable (Not supplied) or S-Video cable (Not supplied). - For supported input signals, refer to the "AV Timing(VIDEO/S-VIDEO)".
- Page 29 Basic Functions Input Picture Setup Option Turning on the projector Check that the lens cover is opened completely. Turn the power on. Check that the STAND BY LED indicator is turned on. Press the Power button. While the power is turned on (with the Power button on the remote control or at the top of the projector), the blue LAMP LED indicator blinks.
- Page 30 * Click the Play( )/Stop( ) button in the table below to view the video file. Screen Description Play/Stop Adjustment Source List You can select a device connected to the projector to display. 1) PC 1 4) S-Video 2) PC 2 5) HDMI 3) AV Edit Name...
- Page 31 - User This mode is a customized mode created using the Mode > Save function. ▶ Presentation and Text modes are only enabled if the input signal is a Timing(D-Sub/HDMI)signal. 2) Contrast : Used to adjust the contrast between the object and the background. 3) Brightness : Used to adjust brightness of the entire picture.
- Page 32 2) 7.5 IRE : Sets the black level to 7.5 IRE - For the RGB signal of [HDMI] mode 1) Normal: Used in a normal environment. 2) Low: Used when the dark part is shown too bright. Overscan Using this function, you can cut the edge of the picture when unnecessary information, images appear on the edge of the picture.
- Page 33 1) Front-Floor : Normal Image 2) Front-Ceiling : Horizontal/Vertical Reversed Image 3) Rear-Floor : Horizontally Reversed Image 4) Rear-Ceiling : Vertically Reversed Image Lamp Mode Used to set the image brightness by adjusting the amount of light generated by the lamp. 1) Eco : This mode is optimized for small screens smaller than 100 inches.
- Page 34 DVD, etc…) to the HDMI terminal Auto Auto settings Reset Using this function, you can reset various settings to the factory default settings. Factory 1) Factory Default : Changes the settings to the factory defaults. Default 2) Reset Filter Time : Resets the filter time. Reset Filter Time Basic Functions...
- Page 35 1) Balance 4) 1kHz 2) 100Hz 5) 3kHz 3) 300Hz 6) 10kHz Filter Check Sets the check period for the filter. (Unit: hour) Time 1) Off 2) 100 3) 200 4) 400 5) 800 ▶ If the filter usage time is larger than the filter check period, the filter check message is displayed for a minute whenever the projector is turned on.
- Page 36 Check that your PC and projector are turned off. Connect the [HDMI/DVI IN] terminal of the projector to the HDMI or DVI terminal of your PC using a HDMI/HDMI or HDMI/DVI cable (Not supplied). - When connecting to the HDMI terminal of your PC, use an HDMI cable (Not supplied). - For the supported input signals, refer to "PC Timing(D-Sub/HDMI)".
- Page 37 Connect the [PC IN 1] terminal at the back of the projector to the D-Sub terminal of your PC using a D-Sub cable. Connect the [PC OUT] terminal of the projector to the D-Sub terminal of a monitor using a D-Sub cable. - When connecting a monitor using the [PC OUT] function, make sure to connect your PC to the [PC IN 1] terminal.
- Page 38 Care and Maintenance Contact SAMSUNG WORLDWIDE Authority To clean the exterior and lens of the projector Clean the projector using a soft dry cloth. Do not clean the projector with flammable substances such as benzene, thinners or a wet cloth, as these may cause problems.
- Page 39 Otherwise, its parts may be damaged due to internal heat. When replacing the filter, dust may occur. For inquiries on filter purchase, please refer to 'Contact SAMSUNG WORLDWIDE'. The sequence for replacing or cleaning the filter of the projector. Turn off the power of the projector, Place the product so that its bottom Replace or clean the filter.
- Page 40 The ventilation openings are located on the right and left sides and at the bottom of the projector. Care and Maintenance Contact SAMSUNG WORLDWIDE Authority If you have any questions or comments relating to Samsung products, please contact a SAMSUNG customer care center. North America U.S.A 1-800-SAMSUNG(726-7864) http://www.samsung.com/us...
- Page 41 022 - 607 - 93 - 33 PORTUGAL 808 20 - SAMSUNG (7267864) http://www.samsung.com/pt SLOVAKIA 0800-SAMSUNG (726-7864) http://www.samsung.com/sk SPAIN 902 - 1 - SAMSUNG (902 172 678) http://www.samsung.com/es SWEDEN 0771 726 7864 (SAMSUNG) http://www.samsung.com/se SWITZERLAND 0848 - SAMSUNG(7267864, CHF 0.08/min) http://www.samsung.com/ch 0845 SAMSUNG (7267864) http://www.samsung.com/uk...
- Page 42 Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden. Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
