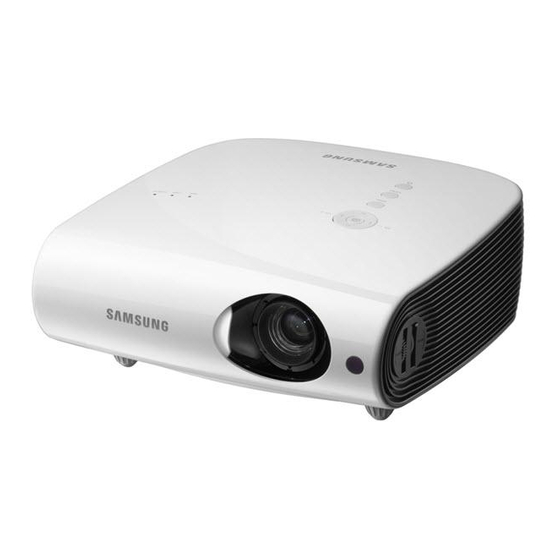

Samsung SP-L300 Owner's Instructions Manual

Sharp projector user manual
Hide thumbs Also See for SP-L300:

Advertisement

Quick Links

Download this manual See also: Manual, Owner's Instruction Manual

Advertisement

loading

Related Manuals for Samsung SP-L300

Summary of Contents for Samsung SP-L300

  • Page 2 To avoid injuries or damage to property, please read the following precautions carefully and use the product accordingly. Failure to follow the instructions marked with this symbol may cause personal injury or even fatality. Failure to follow the instructions marked with this symbol may cause personal injury or damage to the product or property.
  • Page 3 Always unplug the unit by holding the power plug. Pulling the power cable may damage the inside of it. There is a danger of fire. Unplug the power plug before cleaning the product. There is a danger of electric shock or fire. Power Related Installation Related TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN FLAMES...
  • Page 4 If the product falls it may harm children. Install on a flat and stable location as the front part is heavy. In case of thunder/lightning, disconnect the power cord from the wall outlet. There is a danger of electric shock or fire. Make sure the product's vents are not blocked by a table cloth or curtain.
  • Page 5 There is a danger of fire or explosion. Do not place containers with water, vases, drinks, chemicals, small metal parts or heavy objects on the product. If water enters the product, it may cause electric shock, or fire and when heavy objects fall, they may cause injury.

  • Page 6: Correct Disposal Of This Product (Waste Electrical & Electronic Equipment) - Europe Only

    If the product is dropped or the casing is damaged, turn the product off and unplug the power cord. This may cause electric shock or fire. Contact a Use only specified standard batteries. Do not use new and used batteries together. Incorrect polarity may cause a battery to break or leak and could lead to fire, injury, or contamination (damage).

  • Page 7: Audio Output

    An optical engine adopting new LCD technology - 1024 x 768 panel has been adapted. - Utilizing a 3P-LCD panel. - Provides a bright screen of 3000 lumen. - Compact size, lightweight, and good portability Minimized fan noise - Minimizes the noise generated by the product’s fan by optimizing the internal air flow and the fan installation structure.

  • Page 8: Source Button

    Unpacking Warranty Card/ Registration Card Quick Installation Guide 5. POWER( ) Button Used to turn the projector on or off. 6. Lens 7. Remote Control Signal Receiver 8. Focus Ring Used for Focus Adjustment. 9. Zoom Knob Used to enlarge or reduce image size.
  • Page 9 The POWER button is pressed to turn off the projector, and the cooling system is in ○ ◐ ○ operation to cool off the inside of the projector. (Operates for about 30 seconds.) Refer to Action 1 below if the cooling fan inside the projector is not in normal operation ◐ ○ ◐ condition.
  • Page 10 When the screen becomes Action 7 darker This Projector uses a cooling fan system to keep the unit from overheating. Operation of the cooling fan may cause noise, which does not affect the product performance and is part of normal operation. Rear Side 1.
  • Page 11 5. RS-232C port (For service input terminals) 6. [AV IN] R-AUDIO-L Input port Product Features 1. POWER ( Used to turn on the projector. 2. AUTO Adjusts the Picture automatically. (Available in PC Mode Only) 3. MENU ( Used to display Menu Screen.
  • Page 12 Used to select Picture Mode. 17. STILL Used to see still images. Design and specifications of the product may be modified without prior notice for better performance. Specifications Model SP-L300 Panel 0.63" 3P LCD Resolution XGA (1024 x 768) Aspect ratio...
  • Page 13 B emits less electromagnetic waves than class A. The LCD panel used in the LCD projector consists of hundreds of thousands of fine pixels. Like other video display devices, the LCD panel may contain bad pixels which do not operate. When shipping...
  • Page 14 For the resolutions presented above, if a signal with a resolution lower or higher than 1024x768 is input, it is converted to 1024x768 by the Scaler chip inside the projector. When the real resolution (1024x768) of the projector and the PC output resolution are the same, the screen quality is optimal.
  • Page 16 Do not install the screen in bright surroundings. If the screen is too bright, the picture on the screen will not be displayed clearly. When installing the screen in bright surroundings, use curtains. You can install the projector in the following locations: Front-Floor / Front-Ceiling / Rear-Floor / Rear-Ceiling. (To view the installation position settings) To view the picture when installing the projector behind the screen, Install a semi-transparent screen.
  • Page 17 Screen Size and Projection Distance Install the projector on a flat, even surface and level the projector using the adjustable feet to realize optimal picture quality. If images are not clear, adjust them using the Zoom Knob or Focus Ring, or move the projector forward and backward.
  • Page 18 5283.2 5486.4 5689.6 5892.8 6096.0 This projector is designed to show images optimally on a 80 ~ 120 inch sized screen. A. Screen Z: Throw Distance Y': Distance from Lens Center to Image Bottom Setting up the PC Environment - Check the following items before connecting your PC to your projector.
  • Page 19 Projected images may differ from the monitor depending on monitor manufacture or Windows versions. When connecting the projector to a PC, check that PC setup complies to display settings supported by this projector. If not, there may be signal problems.
  • Page 20 Check that your PC and projector are turned off. Connect the [PC IN (1 or 2)] terminal at the back of the projector to the D-Sub terminal of your PC using a D-Sub cable. - For the supported input signals, refer to Connect the [PC 1/DVI AUDIO IN] or [AUDIO IN 2] terminal at the back of the projector to the Audio out terminal of your PC using an audio cable (Not supplied).
  • Page 21 Check that your PC and projector are turned off. Connect the [PC IN 1] terminal at the back of the projector to the D-Sub terminal of your PC using a D-Sub cable. Connect the [PC OUT] terminal of the projector to the D-Sub terminal of a monitor using a D-Sub cable.
  • Page 22 Connecting an AV device using a D-Sub cable First, check that the AV device and your projector are turned off. Connect the [PC IN (1 or 2)] terminal at the back of the projector to the D-Sub terminal of your AV device using a D-Sub cable.
  • Page 23 First, check that the AV device and your projector are turned off. Connect the [PC IN (1 or 2)] terminal at the back of the projector to the Component terminal of your AV device using a D- Sub/Component cable (Not supplied).
  • Page 24 Connecting an External Speaker You can hear sound through an external speaker instead of the internal speaker embedded in the projector. Prepare an audio cable (Not supplied) suitable for your external speaker. Connect the [AUDIO OUT] terminal of the projector to the external speaker using an audio cable.
  • Page 25 When the power is turned on completely, the LAMP LED indicator remains blue. If the projector is turned on when the lamp is not sufficiently cooled, a temporary loud noise may be heard because the fan speed increases to cool the lamp.
  • Page 26 5) Satellite STB 6) AV Receiver Screen Adjustment Mode Select a screen state which is customized to your projector or change the screen mode as required. 1) Mode - Standard This picture mode is the most general mode for various cases.
  • Page 27 ▶ Presentation and Text modes are only enabled if the input signal is a Sub/HDMI)signal. 2) Contrast : Used to adjust the contrast between the object and the background. 3) Brightness : Used to adjust brightness of the entire picture. 4) Sharpness : Used to adjust the sharpness of the picture.
  • Page 28 1) Normal: Used in a normal environment. 2) Low: Used when the dark part is shown too bright. Overscan Using this function, you can cut the edge of the picture when unnecessary information, images appear on the edge of the picture. ▶This is not supported in [AV] and [S-Video] modes.
  • Page 29 2) Screen Size : You can refer to picture format sizes such as 1.33:1 or 1.78:1. Video Type If the screen quality is abnormal since the projector does not identify the input signal type automatically in PC or HDMI mode, you can set the input signal type by force.
  • Page 30 - 5 sec / 10 sec / 30 sec / 60 sec / 90 sec / 120 sec / Stay On Sound Adjusts the right and left audio balance and equalizer of the 3W stereo speaker embedded in the projector. 1) Balance 2) 100Hz...
  • Page 31 2) On Sleep Timer If there is no input signal for the specified time, the projector is turned off automatically. (But, for the specified time, there must be no button input from the remote control or the top of the projector)
  • Page 32 Check if the remote control battery is empty. Check whether the LED indicator on the top of the projector is turned on. I cannot select a menu. Check if the menu is displayed in gray. A gray-colored menu is unavailable.
  • Page 34 Before you turn the projector over to change the lamp, cover the projector with a soft cloth on a flat surface. The projector has been designed so that the projector does not work if the lamp cover is not completely assembled after a lamp replacement.
  • Page 35 Precautions when replacing the projector filter The filter is located at the bottom of the projector. Turn off the power of the projector, and then disconnect the power cord after the heat of the projector is cooled sufficiently. Otherwise, its parts may be damaged due to internal heat.
  • Page 36 The location of the ventilation openings The ventilation openings are located on the right and left sides and at the bottom of the projector. If you have any questions or comments relating to Samsung products, please contact a SAMSUNG customer care center.
  • Page 37 BELGIUM 02 201 2418 CZECH REPUBLIC 800 - SAMSUNG (800-726786) DENMARK 8 - SAMSUNG(7267864) EIRE 0818 717 100 FINLAND 30 - 6227 515 3260 dites 'SAMSUNG' (€ 0,15/Min) FRANCE 0825 08 65 65 (€ 0.15/Min) GERMANY 01805 - SAMSUNG (7267864, € 0.14/Min) HUNGARY 06-80-SAMSUNG (726-7864) ITALIA...
  • Page 38 1-800-3000-8282 INDIA 1800 110011 INDONESIA 0800-112-8888 JAPAN 0120-327-527 MALAYSIA 1800-88-9999 NEW ZEALAND 0800 SAMSUNG (0800 726 786) 1-800-10-SAMSUNG(726-7864) PHILIPPINES 1-800-3-SAMSUNG(726-7864) 02-5805777 SINGAPORE 1800-SAMSUNG(726-7864) THAILAND 1800-29-3232, 02-689-3232 TAIWAN 0800-329-999 VIETNAM 1 800 588 889 SOUTH AFRICA 0860-SAMSUNG(726-7864) TURKEY 444 77 11 800-SAMSUNG(726-7864) U.A.E 8000-4726...

This manual is also suitable for:

Sp-l300w
