Elite Screens ZSP-TR01 User Manual

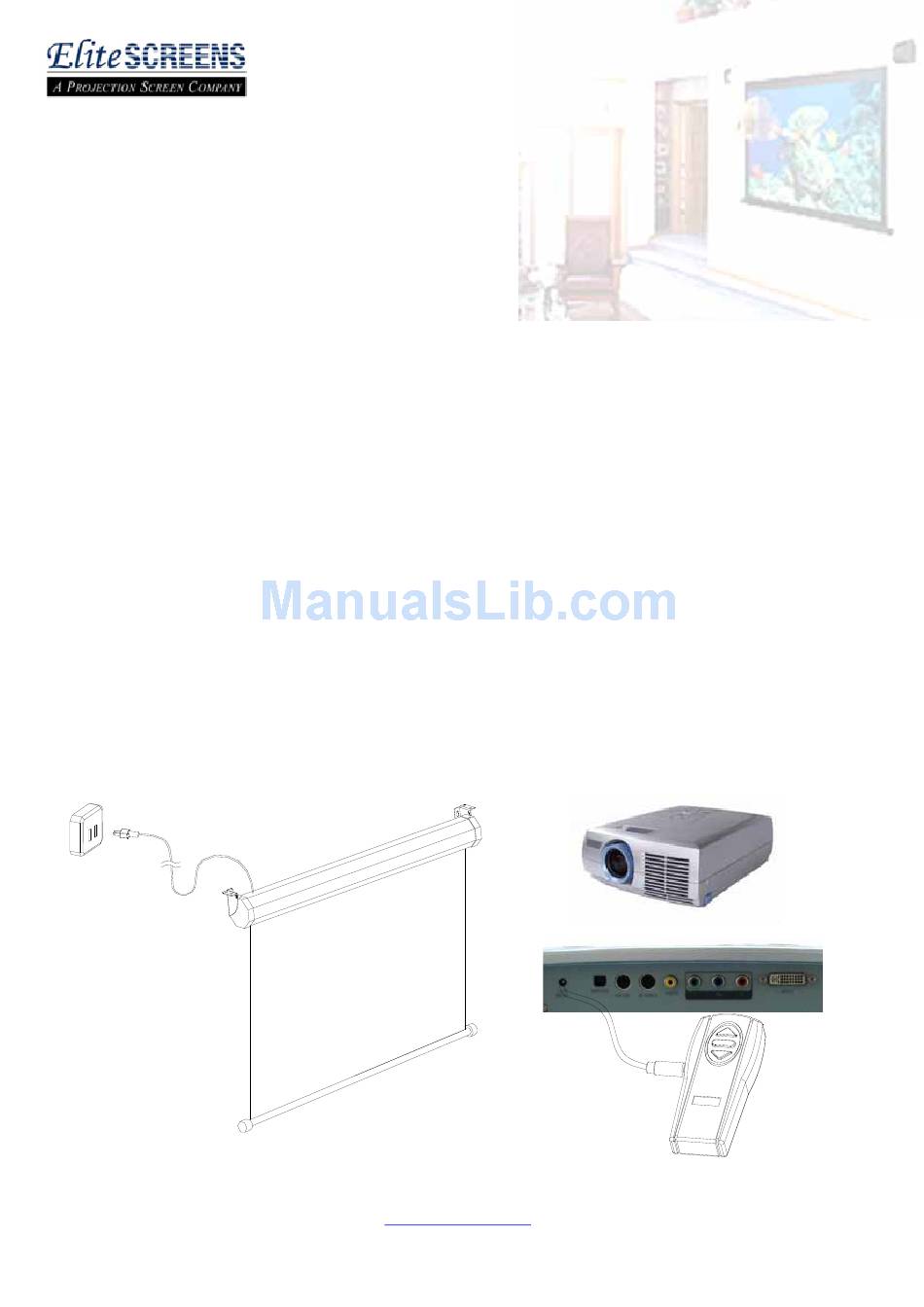

ZSP-TR01 User Manual

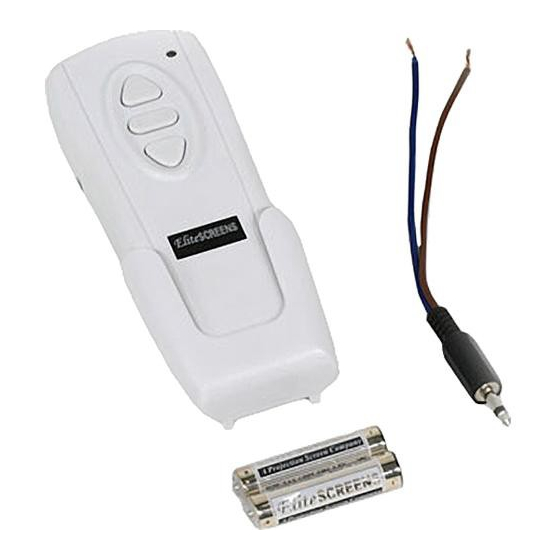

RF Wireless 5-12 VDC Projector Trigger
1. Size and Weight: W x H x D: 4.8"x2"x0.7", Weight: 0.09LBS
2. Max. Control Distance: 80 feet (25M), Control Type: ASK / FSK
3. Support Projector Output Trigger Voltage: 3 15VDC
4. RF Spec. Frequency 315 MHz, Power: Less than 2 Mil-watt
To activate this device, please follow the instructions associated with either a Version 1.4 or
2.0 control. If you are uncertain as to which version you have, please contact Elite Screens
Tech Support for assistance.
Version1.4:
Step 1: Push the small button located on the circuit board, please note you may require a small
pointed object such as a punch to achieve this. After the LED light turns on, press & hold the middle
button of your Wireless RF Trigger Control. Make sure that the LED light on circuit board turns on
during this process.
Step 2: Continue to hold the middle button for an additional 3-4 seconds. After that, your Wireless RF
Trigger Control should now be activated and ready to use.
Please note that only middle button on the controller works.
(Note* The projector's on/off cycle may take longer to fully activate. The average is about 20-30
seconds for full on/off cycles each time.)
Version2.0:
Step1: Put new batteries in your new RF remote control.
Step2: Make sure your wall outlet has power and that the screen is properly plugged in.
Step3: Within first 5 seconds of plugging in the screen, Push & Hold the "Up" Button of your RF
remote for 5-10 seconds, then press "UP/Down" button and the screen will be set.
Repeat the steps again if not successful.
Once your RF remote is activated, the control signal will be saved, even if the power is shut off.
Elite Screens Inc.
16410 Manning Way Cerritos, CA 90703
Phone 562-483-8198 / www.elitescreens.com / EliteInfo@elitescreens.com
