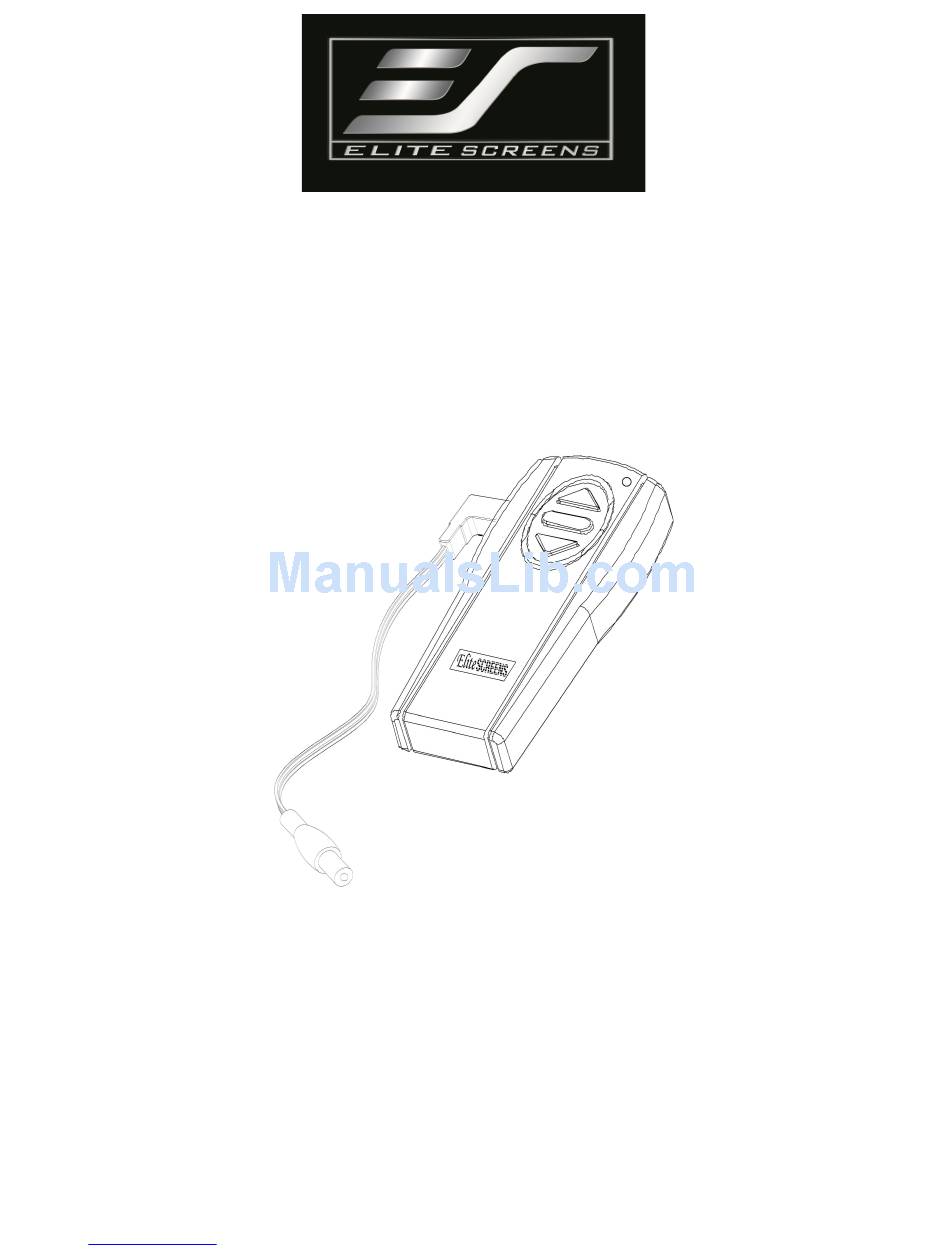

- Page 1 Wireless RF Projector Trigger Controller Part#ZSP-TR01 User Guide Rev. 042710-JA www.elitescreens.com info@elitescreens.com...
- Page 2 SPECIFICATIONS 1. Size and Weight: W x H x D: 4.8”x2”x0.7”, Weight: 0.09LBS 2. Max. Control Distance: 80 feet (25M) Control Type: ASK / FSK 3. Projector Output Support Trigger Voltage: 3－15V 4. RF Spec. Frequency: 315Mhz, Power：Below 2 milli-watts 5.
- Page 3 Fig. 3 Note: Directions for synchronizing your 5-12V wireless triggeraccording to the version number. Version1.4(5-12V wireless trigger and Elite electric screen must be the same version) Step 1:Push the small button located on the circuit board on the left side of the projection screen (please note: you may require a small sharp object to achieve this).
