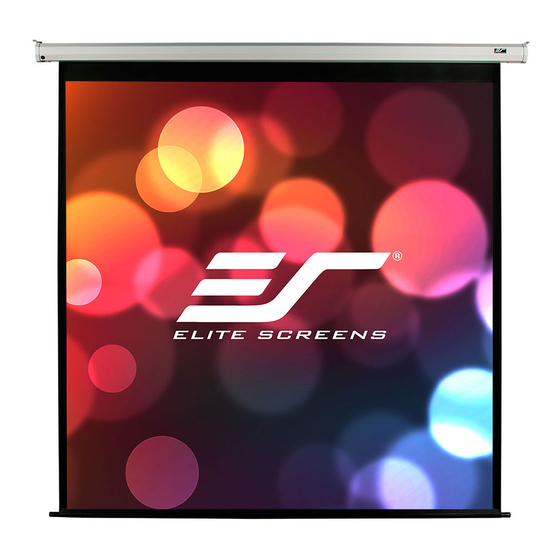

Elite Screens VMAX99XWS2 Manual

PRODUCT WHITE PAPER
www.elitescreens.com

Section 1: Screen Design

1.1 What is it?
The VMAX 2 Series is an enhanced electric motorized projector screen for commercial and home
theater applications.
1.2 How does it work?
It has a silent and power-saving synchronous motor. With standard features such as the IR & RF
remotes, 12v Trigger and Electronic "Eye" Receiver, the VMAX 2 series also includes Elite's
GREENGUARD Certified MaxWhite™ 1.1 gain material that is ideal for large group presentations.
Section 2: Control System
2.1 Control System
Standard Infrared (IR) and Radio Frequency (RF) remote controls
•
Detachable 3-way wall switch
•
Radio Frequency (RF) remote capable of operating from up to 100 feet away without the necessity of
•
line of sight
Built-in 5-12 volt trigger input enables Drop/Rise operation to synchronize with the projector's power
•
cycle
Low-voltage internal IR/RF receivers
•
CAT5 cable wit RJ-45 connector for easy extension of the 5-12 volt trigger/IR "eye"receiver/3-way wall
•
switch
Optional ZR800D IR Universal Remote Control, wireless 5-12 volt trigger, Universal 5-12 volt
•
trigger (for projectors that don't have a trigger output port) and In-wall switch
2.2 Motor Specifications
Tubular motor
Output Output
Current Speed
0.35mA 14 rpm

Section 3: Product Features

3.1 Characteristics
Screen Material
MaxWhite™ 1.1 Gain black backed material
•
MaxWhite™ FiberGlass backed 1.1 Gain material, models 166" & below
•
180° wide viewing angle
•
Elite Screens Inc. | Elite Screens Europe GmbH | Elite Screens France S. A . S | Elite Screens India | Elite Screens China Ltd. | Elite Screens Taiwan Corp.
P
¡ ¢ £ ¦ § ¤ ¥ ¨ ¤ ©
Output Voltage Power
Torque
6Nm AC110V 85 Watts
Elite Screens Japan | Elite Screens Australia
Frequency Noise
level
60 Hz
48db
s
Insulation
Class
F
.
1
