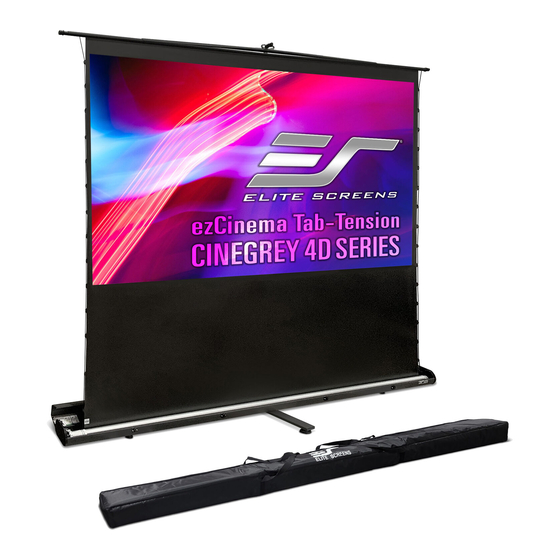

Thank you for purchasing the ezCinema Tab-Tension portable free-standing projector screen. The
ezCinema Tab-Tension is a pull-up screen that conveniently raises and retracts using a telescoping
support bar which allows the screen to promptly be setup and taken down.
Elite Screens allows a 1.5% tolerance within the viewing surface for expansion and contraction
Precautions:
Warning! Screen damage can result from product mishandling if the following precautions
are not followed.
•
In accordance with practicing home fire safety and avoiding screen damage, do not place the
screen near or beside a fireplace or high temperature objects such as a gas stove, BBQ or
heater.
•
Place the screen beyond the reach of children.
•
Do not use the screen in a very strong windy environment.
•
Do not use on uneven surfaces.

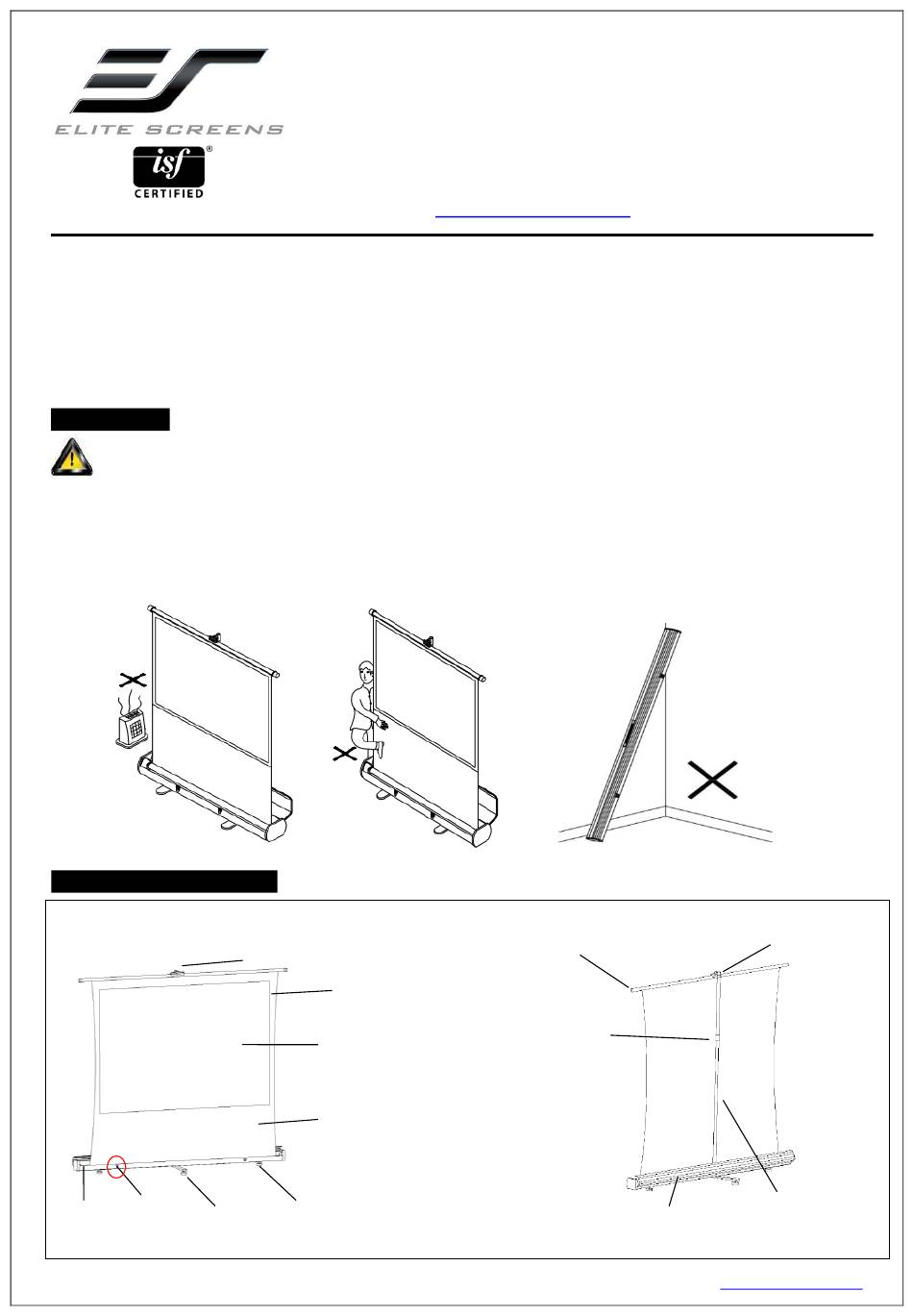

PARTS IDENTIFICATION
Front
Lock
Housing
Short Foot Cup
Buckle
V10192023DT (DS1527)
ezCinema Tab-Tension CineGrey 4D Series
Visit
of the screen materials over time.
Pull-up Handle
Black Masking
Border
Projection
Viewing Area
Bottom Black
Masking
Long Foot Cup
Portable Ceiling/Ambient Light Rejecting
Floor Pull-Up Projector Screen
USER'S GUIDE – E/H Type V1.0
www.elitescreens.com
Upper Scroll bar
Locking sleeve
1
for latest updated version.
Back
Hanging Hook
Telescope
Box Cover
Support Rod
(Lid)
