Summary of Contents for EdgeStar IB1000SS

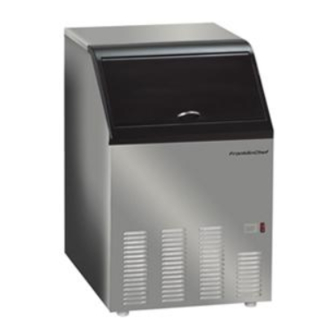

- Page 1 Full Size Ice Maker Models: IB650SS, IB1000SS, IB1500SS Owner’s Manual For more information on other great EdgeStar products on the web, go to http://www.edgestar.com...
-
Page 2: Important Safety Information
Important Safety Information Improper handling can cause serious damage to the EdgeStar ice maker and/or injury to the user. This ice maker is designed for domestic indoor use only. Do not use the unit for industrial or commercial use. Any other use may invalidate the warranty. -
Page 3: Table Of Contents
CLEANING AND MAINTENANCE ..............10 ..................10 XTERIOR LEANING ................... 11 NTERIOR LEANING ..................13 ONDENSER LEANING ................14 MAKING SYSTEM LEANING TROUBLESHOOTING ..................16 SPECIFICATIONS ....................17 LIMITED WARRANTY ..................18 EdgeStar Full Size Ice Maker... -
Page 4: Introduction
Introduction Thank you for purchasing this EdgeStar ice maker. We are glad you chose us. We believe that your purchase of this product opens a relationship between you and EdgeStar. We will provide the customer support needed to nurture that relationship. -
Page 5: Parts Identification
Parts Identification Top cover Door Ice cube full sensor Right side Front cover Ventilation Ice storage bin louvers Ice scoop Leveling Control box (Behind front cover) Power switch EdgeStar Full Size Ice Maker... -
Page 6: Installing The Ice Maker
Installing the Ice Maker The ice maker should be installed by a licensed plumber to be in accordance with local electrical and plumbing code requirements. Before you plug the ice maker in to a power supply, be sure to let it stand upright for at least 24 hours to allow the compressor’s oils to settle. -
Page 7: Installation Clearance Requirements
A standard electrical supply (115 VAC only, 60 Hz, 15 A), properly grounded in accordance with National Electrical Code and local codes and ordinances is required. • IMPORTANT: Do not kink or pinch the power supply cord between the ice maker and wall or cabinet. EdgeStar Full Size Ice Maker... -
Page 8: Electrical Requirements
Electrical Requirements Electrical Shock Hazard Plug into a grounded 3-prong outlet. Never remove the grounding prong from the plug. Never use an adapter. Never use an extension cord. Failure to follow these instructions can result in fire, electrical shock, or death Before you move your icemaker into its final location, it is important to make sure you have the proper electrical connection: A standard electrical supply (115 V, 60Hz.), properly grounded in... -
Page 9: Water Supply Connections
A floor drain is also acceptable. 4. Pour 1 gallon of water into the ice storage bin to check for proper drainage. Note: a condensate pump can allow for installation further from your drain. Consult your plumber for advice. EdgeStar Full Size Ice Maker... -
Page 10: Operation
OPERATION Final Check List before Operation 1. Have all packing materials and tape been removed from the interior and exterior of the ice maker? 2. Did you clean the ice storage bin? 3. Have the installation instructions been followed, including connecting the machine to water and electricity? Does the unit have proper drainage? 4. -
Page 11: How The Machine Makes Ice
During the harvest cycle, fresh water flows into the machine to dilute the bin water and rinse the concentrated minerals down the drain. EdgeStar Full Size Ice Maker... -
Page 12: Normal Sounds
Normal Sounds Your new icemaker may make sounds that are not familiar to you. Most of the new sounds are normal. Hard surfaces like the floor, walls can make the sounds seem louder than they actually are. The following describes the kinds of sounds that might be new to you and what may be making them. -
Page 13: Cleaning And Maintenance
If the door panel is stainless finish, it can discolor when exposed to chlorine gas and moisture. Clean stainless finish with a cloth dampened with a mild detergent and warm water solution. Never use an abrasive cleaning agent. EdgeStar Full Size Ice Maker... -
Page 14: Interior Cleaning
Interior Cleaning The ice storage bin should be sanitized occasionally. Clean the water trough before the ice maker is used for the first time and reused after stopping for an extended period of time. It is usually convenient to sanitize the trough after the ice making system has been cleaned and the ice storage bin is empty. - Page 15 Rinse thoroughly with clear water. 7. Reassemble the sprinkler arm, slideway and row of flake covers. 8. Perform steps 1, 3, 6, 7 and 8 of the Ice Making System Cleaning procedure below. EdgeStar Full Size Ice Maker...
-
Page 16: Condenser Cleaning
Condenser Cleaning A dirty or clogged condenser prevents proper airflow, reduces ice making capacity, and causes higher than recommended operating temperatures that may lead to component failure. Have the condenser cleaned at least once every six months. 1. Unplug the ice maker or disconnect power. 2. -
Page 17: Ice-Making System Cleaning
10. Repeat step 6 to rinse the ice making system one more time. 11. Reassemble the front cover. 12. Turn on the power again. The machine will return to the regular ice making mode. Important: Discard the first batch of ice. EdgeStar Full Size Ice Maker... -
Page 18: Major Functions
Control Panel (Inside of the front panel) Descriptions of LEDs and buttons: 1. Ice Full (Red) LED: Ice Full indicator light. When this LED is lit, the ice storage bin is full of ice or there is something obstructing the ice-full probe. The unit will stop working. When ice cubes are taken out of the ice storage bin, clearing the ice-full probe, the red LED will keep flashing for 3 minutes. -
Page 19: Troubleshooting
Use the correct plug and outlet. maker is electrified socket. Scale builds up The calcium level in the water is Use a water-softening apparatus installed quickly inside the too high. in front of the water inlet valve. machine. EdgeStar Full Size Ice Maker... -
Page 20: Specifications
Specifications Description of product Full Size Ice Maker Full Size Ice Maker Full Size Ice Maker Model IB650SS IB1000SS IB1500SS Voltage/Frequency AC 115V~60Hz AC 115V~60Hz AC 115V~60Hz Ice-Making / Ice-Harvest 6.7A / 11.2A 7.3A / 11.7A 7.5A / 11.8A rated current Color Stainless Steel;... -
Page 21: Limited Warranty
EdgeStar authorized repair facility. PARTS: For a period of ONE (1) YEAR from the date of original purchase, EdgeStar will supply new, rebuilt, or refurbished parts free of charge. EdgeStar may request a defective part be returned in exchange for the replacement part. - Page 22 Register your product, download owner’s manuals, access additional troubleshooting resources, and obtain more information on other great EdgeStar products on the web at: http://www.edgestar.com Product contents and specifications may change without notice. Copyright © 2010 Living Direct, Inc. All rights reserved.
