Quick Start Guide
PortServer TS W MEI
Wireless Series
Set serial DIP switch according
to your serial device requirements. Pinouts
available on back of quick start.
Switch
Settings
Up/On
INSTALL
Down/Off
Software &
Documentation
RUN
WIZARD
If you have a UNIX system and it
does not use an auto-mounter, you
will need to manually mount the CD.
See the back of this guide for UNIX
specific instructions.
REBOOT
Applying power with the
Ethernet cable disconnected,
will enable wireless access.
© Digi International Inc., 2005.
Digi, Digi International, the Digi logo, the Making Device Networking Easy logo, PortServer, and RealPort
are trademarks or registered trademarks of Digi International, Inc. in the United States and other countries worldwide.
All other trademarks are the property of their respective owners.
EIA-422/485
EIA-485
EIA-232
Full-Duplex
Half-Duplex
*
*
1 2 3 4
*If switch 4 is up, termination
resistor is connected.
If switch 4 is down, termination
resistor is not connected.
Insert CD
Disconnect
power
supply

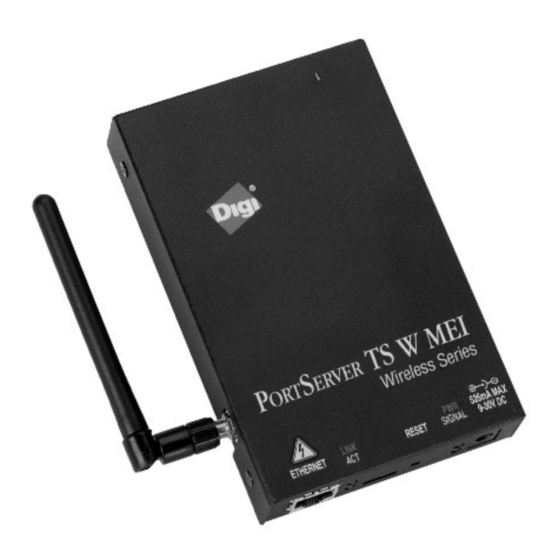

PortServer TS1 W MEI
shown
Ethernet cable not included
Connect
serial device
*
Applying power with the
Ethernet cable connected,
will disable wireless access.
Disconnect
Ethernet
cable
What you will need
Software &
Documentation
Connect
Ethernet
cable
Power (green)
steady blinking; seeking or
waiting for an IP address
Signal (yellow)
RF signal strength indicated by
brightness of light
Follow wizard
Be sure to check Digi Support for
the latest firmware updates at:
http://support.digi.com
Congratulations!
Configuration is complete.
Go to the User's Guide
on the CD for more
information.
Re-connect
power supply
visit us at www.digi.com
PN:(1P)
90000689
A
Connect
power
supply
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Digi PortServer TS1 W MEI
Summary of Contents for Digi PortServer TS1 W MEI
-
Page 1: Quick Start Guide
Digi, Digi International, the Digi logo, the Making Device Networking Easy logo, PortServer, and RealPort are trademarks or registered trademarks of Digi International, Inc. in the United States and other countries worldwide. All other trademarks are the property of their respective owners. - Page 2 DCD. This alternative can be used if DCD is not required, and DSR is needed instead. Configure the altpin through the web interface or the command line. See the User's Guide, MEI chapter or the set flow command in the Command Reference on the Digi CD under Documentation for more information about setting the altpin.
