Emerson CD Cruiser HD2700 Owner's Manual

Personal compact disc player with 45 second anti-skip memory cd-r and cd-rw compatible
Hide thumbs

Advertisement

Quick Links

PERSONAL COMPACT DISC PLAYER
with 45 SECOND ANTI-SKIP MEMORY
CD-R and CD-RW COMPATIBLE
OWNER'S MANUAL
HD2700
Visit our web site at www.emersonradio.com
HD2700_ib.p65
16
21/11/2001, 15:53

Advertisement

loading

  Related Manuals for Emerson CD Cruiser HD2700

  Summary of Contents for Emerson CD Cruiser HD2700

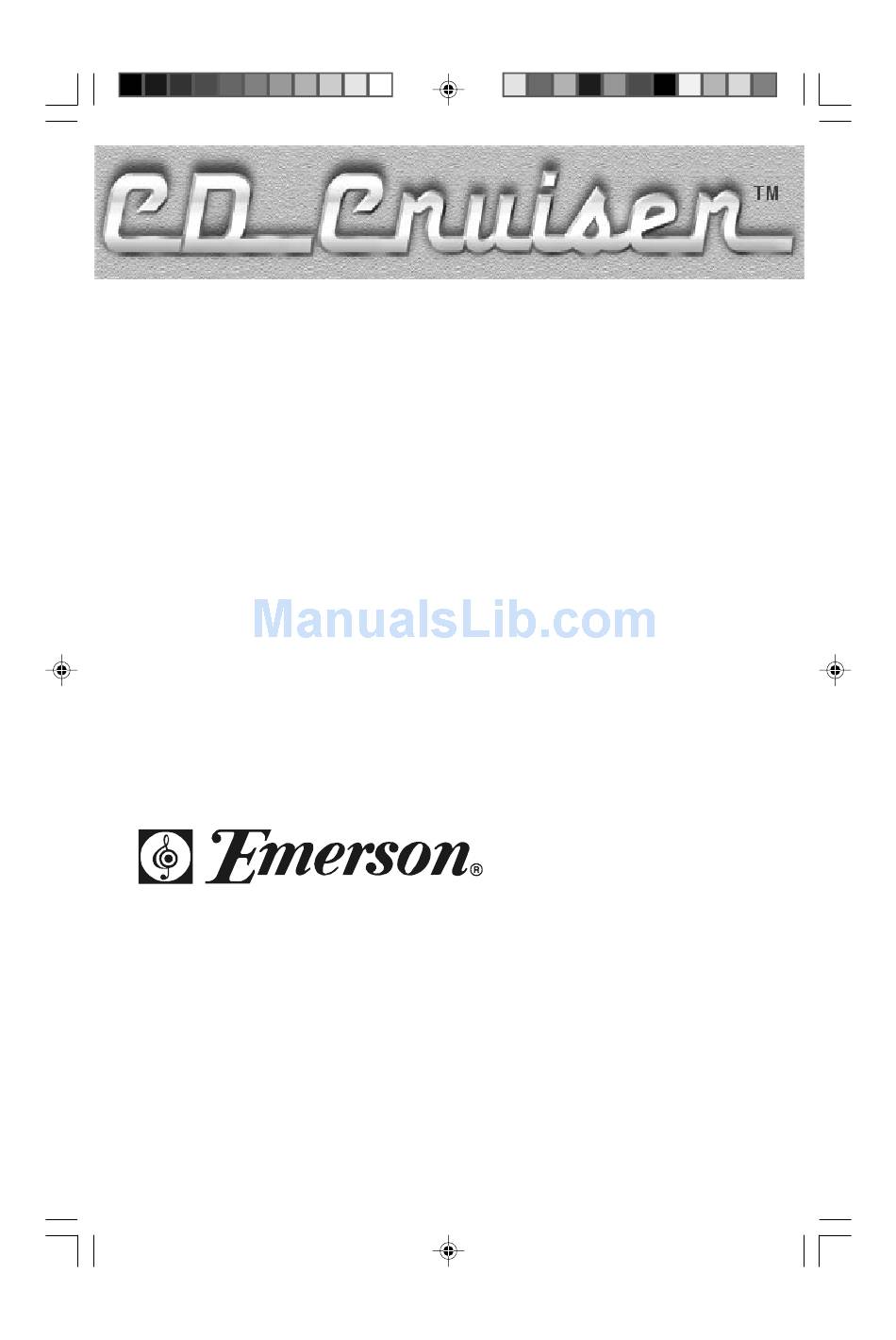

  • Page 1 PERSONAL COMPACT DISC PLAYER with 45 SECOND ANTI-SKIP MEMORY CD-R and CD-RW COMPATIBLE OWNER’S MANUAL HD2700 Visit our web site at www.emersonradio.com HD2700_ib.p65 21/11/2001, 15:53...
  • Page 2 Thank you... For purchasing this Emerson Personal CD Player. It has a 24 track programmable memory so you can listen to the songs on your favorite CD's in any order you choose. Or you can use the Random playback feature and let the player select the playback order for you.
  • Page 3: Important Notes

    IMPORTANT NOTES WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. Avoid installing the unit in locations described below: • Places exposed to direct sunlight or close to heat radiating appliances such as electric heaters.
  • Page 4: Location Of Controls

    LOCATION OF CONTROLS 1. CD Door. 2. LCD Display – Shows track number, playing time, Anti-Skip memory status, Program, Repeat, Random, and Intro modes. 3. SKIP REV. Button – To skip tracks or search backward. 4. SKIP FWD. Button – To skip tracks or search forward. 5.
  • Page 5: Lcd Display Indicators

    LCD DISPLAY INDICATORS PROG RAND INTRO 1. PROG (Program) Indicator – Appears when programming tracks or playing programmed tracks. 2. Repeat 1/ALL Indicators – Appears when the Repeat playback mode is selected. 3. CD-RW Indicator – Appears when CD-RW disc is loaded. 4.
  • Page 6: Power Source

    This CD player can be operated on either 120V 60Hz AC house current with the AC adapter (not included), or on 3V DC (2 "AA" batteries, not included). AC OPERATION Connect an optional AC adapter (not included) to your 120V 60Hz AC outlet. Then connect the small plug to the "DC IN 4.5V"...
  • Page 7: Battery Operation

    BATTERY OPERATION 1. Open the battery compartment door on the bottom cabinet by sliding it in the direction of the arrow and then lifting it open. To prevent loss, the door cannot be removed from the unit. 2. Insert 2 "AA" batteries (not included) into the compartment.
  • Page 8: Normal Playback

    OPERATING INSTRUCTIONS NORMAL PLAYBACK NOTE: This player can play all normal CD's plus CD-Rs (CD Recordables) and CD-RWs (CD Re-Writeables) 1. Connect the headphones to the PHONES jack. Set the VOLUME control to a low level before you begin playback and then adjust the volume to a comfortable level after playback begins.
  • Page 9: Pause Control

    8. Slide the CD Door OPEN switch to the right to open the door and remove your disc. Close the CD Door and return your disc to its protective storage case. PAUSE CONTROL Press the PLAY/PAUSE to pause momentarily. The sound stops, the track and the time display flashes but the disc continues to spin.
  • Page 10: Intro Scan

    To cancel repeat playback: 1. Press the STOP button, or; 2. Press the MODE button until no special mode indicators appear in the display. INTRO SCAN This feature plays only the first 10 seconds of each track on the disc. 1.
  • Page 11: Programmed Playback

    PROGRAMMED PLAYBACK You can program the player to play only the tracks that you want to hear, in the specific order that you want to hear them. Up to a total of 24 tracks can be programmed. You may program certain tracks to play more than once if desired. IMPORTANT: The player can only be programmed when it is in the Stop mode and the total number of tracks and playing time appear on the display.
  • Page 12 ELECTRONIC ANTI-SKIP PROTECTION This CD player is equipped with an automatic 45 second Electronic Anti-Skip Memory and an Anti-Rolling Mechanism that will eliminate virtually all skipping under normal conditions. When you press the PLAY/PAUSE button to begin playback the player immediately begins to store 45 seconds of music in a solid state memory that is impervious to shock.
  • Page 13: Care And Maintenance

    CARE AND MAINTENANCE CLEANING THE CABINET Wipe with a soft cloth. If the cabinet is very dirty, dampen the cloth with a weak solution of neutral detergent and water, and then wipe clean. CLEANING THE LENS A dirty lens will cause sound skipping and, if the lens is very dirty, the CD may not work.
  • Page 14: Troubleshooting Guide

    Replace batteries. Try another disc. Clean or replace disc. TO FIND THE LOCATION AND PHONE NUMBER OF YOUR NEAREST SERVICE CENTER PERMITTED TO PERFORM WARRANTY... 1-800-695-0098 PLEASE CALL: 1-800-898-9020 Emerson Radio Corp. Consumer Affairs Dept. 1901 Diplomat Drive, 21/11/2001, 15:46...
  • Page 15: Limited Warranty

    EMERSON RADIO CORP. LIMITED WARRANTY What does this warranty cover ? Any manufacturing defects in original material, including original parts and workmanship, under normal use and conditions. For how long? For a period of ninety (90) days from the date of original purchase in the U.S.
  • Page 16 EMERSON RADIO CORP. EMERSON PART NO. : 16-2841 111-01 PRINTED IN CHINA 21/11/2001, 15:46 HD2700_ib.p65...
