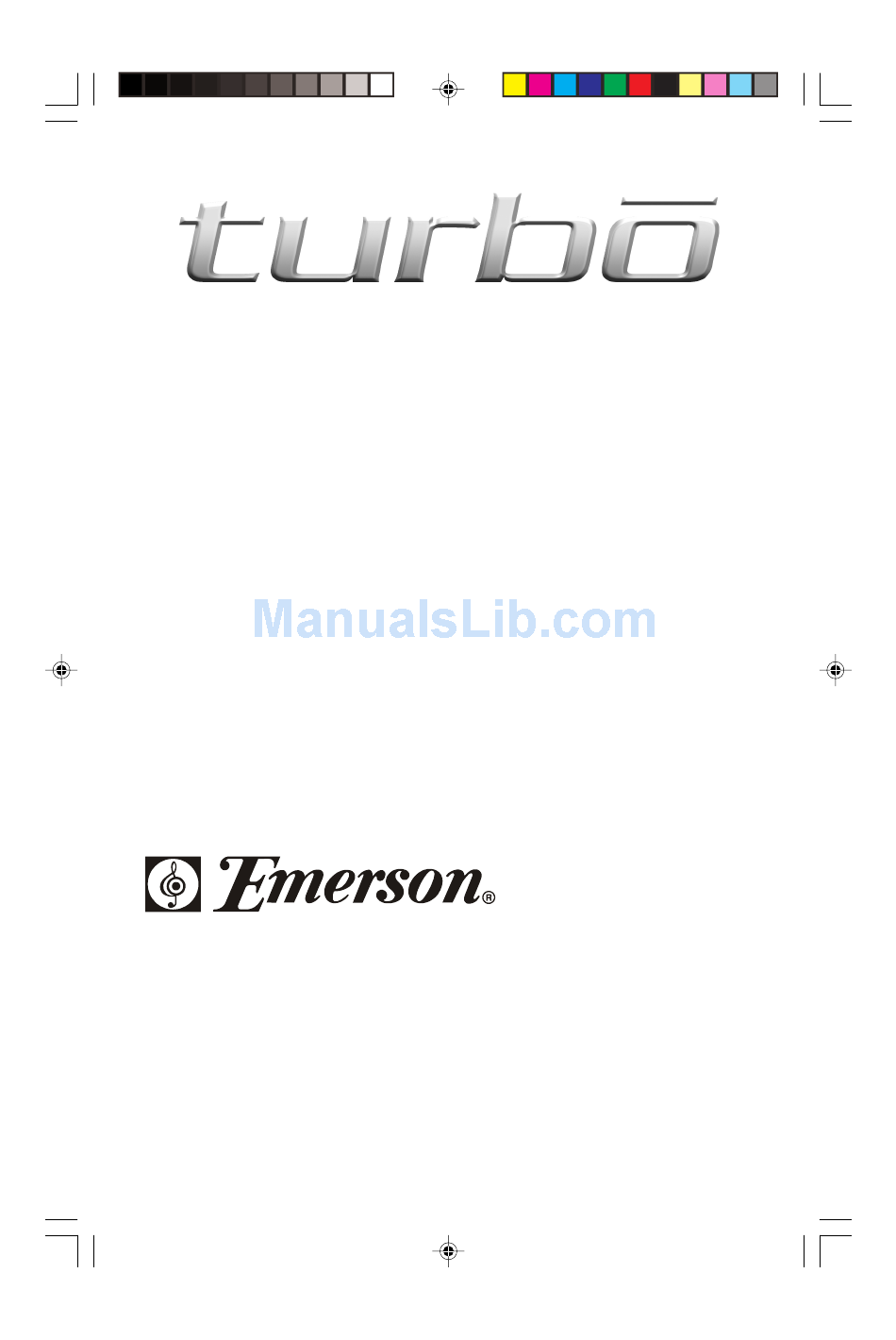

- Page 1 WATER RESISTANT PERSONAL CD-R/RW PLAYER with 45 SECOND ANTI-SKIP PROTECTION OWNER’S MANUAL HD7003 Visit our web site at www.emersonradio.com HD7003_ib040703.p65 7/4/2003, 10:49...
- Page 2 Thank you for purchasing this Emerson Water-Resistant Personal CD-R/ RW Player. The CD-R/RW player has a 20 track programmable memory so you can listen to the songs on your favorite CD's in any order you choose. Or you can use the Shuffle playback feature and let the player select the playback order for you.
-
Page 3: Important Notes
IMPORTANT NOTES WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. Avoid installing the unit in locations described below: • Places exposed to direct sunlight or close to heat radiating appliances such as electric heaters. CLASS 1 LASER PRODUCT CLASS 1 LASER PRODUCT APPAREIL Á... -
Page 4: Preparation For Use
PREPARATION FOR USE POWER SOURCES This personal CD player is designed to operate on two alkaline “AA” batteries, or on an optional AC adapter, not included. Attempting to operate this unit on any other power source may cause damage to the unit and such damage is not covered by your warranty. -
Page 5: When To Change The Batteries
3.) Insert two fresh “AA” alkaline batteries in the battery compartment. Be sure to follow the polarity makings in the battery compartment. If the batteries are inserted incorrectly the unit will not work. 4.) Close the battery compartment cover and make sure that it is locked in place so that it does not come in contact with a CD. - Page 6 Connect the adapter housing directly to a 120V AC outlet. Connect the appropriate adapter plug to the “DC Input 4.5V” jack on the side of the CD player. Remove the rubber cap from the Input jack before connecting the adapter plug. Replace the rubber cap when the adapter plug is removed from the player.
-
Page 7: Hand Strap Installation
HAND STRAP INSTALLATION This player is supplied with an accessory hand-strap to secure the player in your hand while you are jogging or performing other strenuous activities. To install the hand-strap, thread the strap through the two slots in the hand strap ®... -
Page 8: Location Of Controls And Indicators
7.) F.SKIP Button. 8.) R.SKIP Button. 9.) STOP Button. 10.) BASS BOOST Button. HD7003_ib040703.p65 PORTABLE CD PLAYER LEFT SIDE CABINET 11.) DC IN 4.5V Jack. 12.) HOLD On/Off Switch. 13.) VOLUME Control. RIGHT SIDE CABINET 14.) PHONES Jack. BOTTOM CABINET 15.) Hand-strap Bracket. -
Page 9: Multifunction Lcd Display
MULTIFUNCTION LCD DISPLAY BASS 1 2 PROG SHUFF INTRO 1.) INTRO – Intro Playback Indicator. 2.) SHUFF – Shuffle/Random Playback Indicator. 3.) PROG – Programmed Playback Indicator. 4.) BASS 1 / 2 – Bass Boost Level Indicator. 5.) “ ONE” – One Track Repeat Indicator. . 6.) “... -
Page 10: Bass Boost
BASS BOOST This personal CD player has a 2-level Bass Boost control. To increase the bass response press the BASS BOOST button. The "BASS 1" indicator appears in the display. -
Page 11: Playing Compact Discs
PLAYING COMPACT DISCS IMPORTANT: This CD player can play normal CDs plus CD Recordable (CD-R) and CD Rewriteable (CD-RW) discs. However the playability of CD-R and CD-RW discs may be affected by the type of software that was used in ‘ ripping’ the tracks from the original discs and ‘... - Page 12 5.) Put on the lightweight stereo headphones and adjust the VOLUME and BASS BOOST controls as desired. 6.) Playback will continue to the end of the disc. As each track is played the display will show the track number and the elapsed playing time of that track. After the last track has played the player stops and the display again shows the total tracks and total playing time on the disc.
- Page 13 ASP button to shut the anti-skip memory ‘ Off’ . The ASP indicator disappears from the display. HOLD Switch ASP Button PORTABLE CD PLAYER HD7003_ib040703.p65 7/4/2003, 11:15...
-
Page 14: Special Playback Modes
The entire disc will be repeated continuously. Press the STOP button to cancel Repeat playback. P-MODE Button HD7003_ib040703.p65 buttons to select the desired ONE” appears in the PORTABLE CD PLAYER 7/4/2003, 11:15 ANTI- SHOCK ANTI- SHOCK... - Page 15 Shuffle (SHUFF)/Random Playback While at stop mode, press the P-MODE button until the SHUFF indicator appears in the display. Press the PLAY/PAUSE button, the player will randomly select a track for playback and will continue playing the tracks on the disc in random until all tracks have been played.
-
Page 16: Programmed Playback
PROGRAMMED PLAYBACK You can program the player to play just the tracks you want to hear in the specific order that you want them to play. A maximum of 20 tracks can be programmed. 1.) Press the PROG (Program) button. The PROG indicator together with the track number “0 0”... - Page 17 6.) After the last programmed track has played the player stops and the display again shows the total tracks and playing time. However the programmed sequence remain in the memory. Press the PROG button, then the PLAY/PAUSE programmed sequence again. 7.) To erase the programmed sequence from the memory press STOP at stop mode, or open the CD door.
-
Page 18: Care And Maintenance
CARE AND MAINTENANCE CLEANING THE CABINET Wipe with a soft cloth. If the cabinet is very dirty, dampen the cloth with a weak solution of neutral detergent and water, and then wipe clean. CLEANING THE LENS A dirty lens will cause sound skipping and, if the lens is very dirty, the CD may not work. -
Page 19: Limited Warranty
For repair or replacement, pack your unit in a padded box, enclose your check or money order payable to Emerson Radio Corp. in the amount of $9.00 (not required by California residents) to cover shipping and handling costs, and enclose a copy of your proof of purchase. - Page 20 EMERSON RADIO CORP. EMERSON Part No. : 16-2885 304-01 PRINTED IN CHINA HD7003_ib040703.p65 7/4/2003, 11:15...
