Related Manuals for Emerson Turbo HD8003
Summary of Contents for Emerson Turbo HD8003

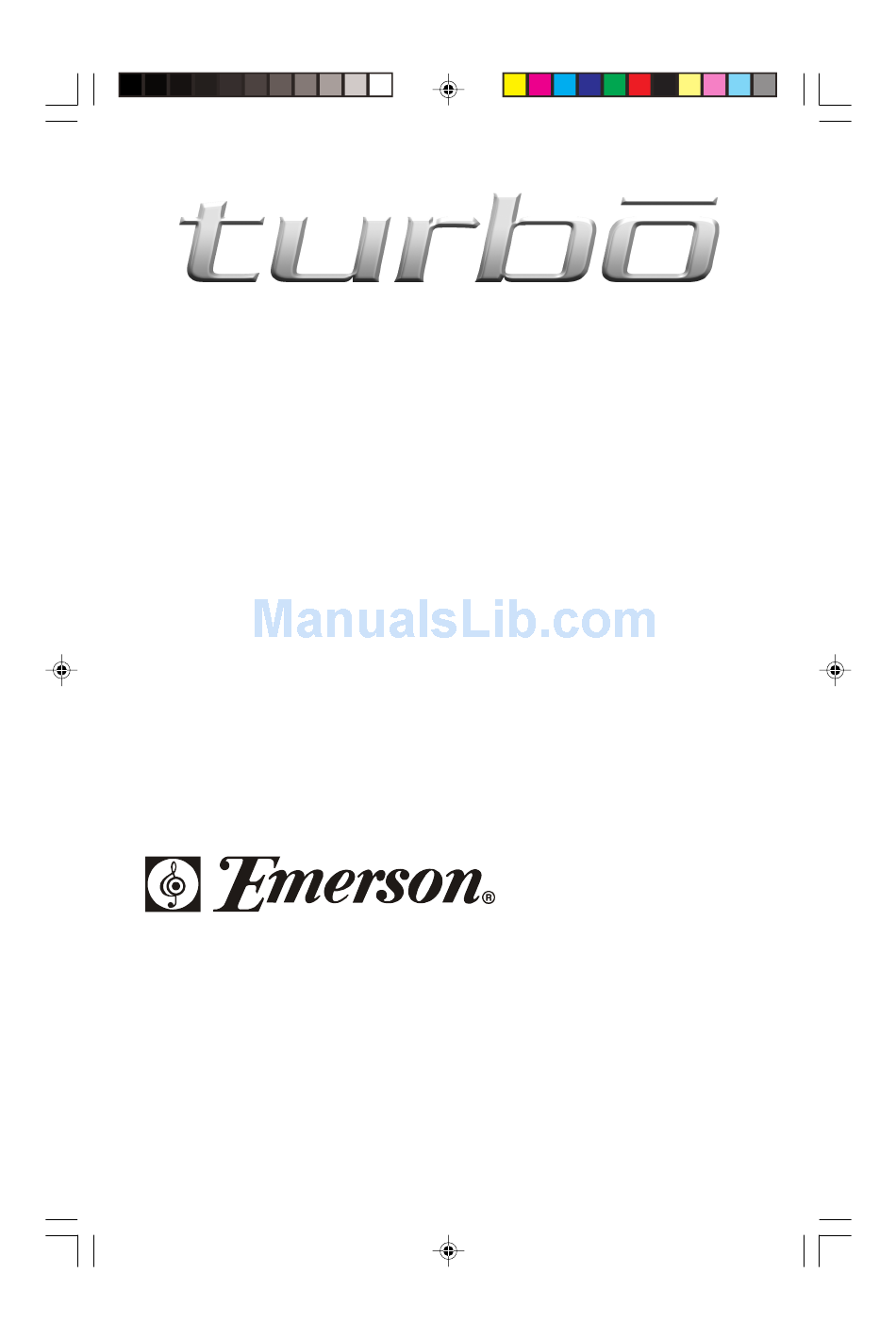

- Page 1 WATER RESISTANT PERSONAL CD-R/RW PLAYER with DIGITAL TUNER and 45 SECOND ANTI-SKIP PROTECTION OWNER’S MANUAL HD8003 Visit our web site at www.emersonradio.com HD8003_ib040403.p65 4/4/2003, 11:32...
- Page 2 Thank you for purchasing this Emerson Water-Resistant Personal CD-R/ RW Player with Digital Tuner. The CD-R/RW player has a 24 track programmable memory so you can listen to the songs on your favorite CD's in any order you choose. Or you can use the Random playback feature and let the player select the playback order for you.
-
Page 3: Important Notes
IMPORTANT NOTES WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. Avoid installing the unit in locations described below: • Places exposed to direct sunlight or close to heat radiating appliances such as electric heaters. CLASS 1 LASER PRODUCT CLASS 1 LASER PRODUCT APPAREIL Á... -
Page 4: Preparation For Use
PREPARATION FOR USE POWER SOURCES This personal CD player with digital tuner is designed to operate on two alkaline “AA” batteries, or on an optional AC adapter, not included. Attempting to operate this unit on any other power source may cause damage to the unit and such damage is not covered by your warranty. -
Page 5: When To Change The Batteries
3.) Insert two fresh “AA” alkaline batteries in the battery compartment. Be sure to follow the polarity makings in the battery compartment. If the batteries are inserted incorrectly the unit will not work. 4.) Close the battery compartment cover and make sure that it is locked in place so that it does not come in contact with a CD. - Page 6 Connect the adapter housing directly to a 120V AC outlet. Connect the appropriate adapter plug to the “DC Input 4.5V” jack on the side of the CD player. Remove the rubber cap from the Input jack before connecting the adapter plug. Replace the rubber cap when the adapter plug is removed from the player.
-
Page 7: Hand Strap Installation
HAND STRAP INSTALLATION This player is supplied with an accessory hand-strap to secure the player in your hand while you are jogging or performing other strenuous activities. To install the hand-strap, thread the strap through the two slots in the hand strap ®... -
Page 8: Location Of Controls And Indicators
LOCATION OF CONTROLS AND INDICATORS TOP CABINET 1.) CD Door Locking Hinge. 2.) PROG/MEMORY Button. 3.) MODE Button. 4) PRESET DOWN Button. 5.) PRESET UP Button. 6.) CD/Radio Display. 7.) POWER ON CD PLAY/PAUSE Button. 8.) CD F.SKIP/TUN.UP 9.) CD R.SKIP/TUN.DOWN 10.) CD STOP /POWER OFF Button. -
Page 9: Multifunction Lcd Display
MULTIFUNCTION LCD DISPLAY PRESET RAND INTRO PROG 1.) PROG – CD Program Indicator. 2.) INTRO– Intro Playback Indicator. 3.) RAND – Random Playback Indicator. 4.) PRESET – Tuner Preset Indicator. 5.) Repeat Indicator. . 6.) “ALL” Tracks Repeat Indicator. 7.) CD-RW Indicator. 8.) Battery Level Indicator. - Page 10 SPORTS STYLE LIGHTWEIGHT STEREO HEADPHONES The lightweight stereo headphones supplied with this CD player have ear-pieces designed to fit directly into your ear. Be sure to observe the “L” (Left) and “R” (Right) markings on the ear-pieces to make sure that you put the headphones on correctly.
-
Page 11: Playing Compact Discs
PLAYING COMPACT DISCS IMPORTANT: This CD player can play normal CDs plus CD Recordable (CD-R) and CD Rewriteable (CD-RW) discs. However the playability of CD-R and CD-RW discs may be affected by the type of software that was used in ‘ ripping’ the tracks from the original discs and ‘... -
Page 12: Power Off
6.) Put on the lightweight stereo headphones and adjust the VOLUME control to a comfortable listening level. 7.) Playback will continue to the end of the disc. As each track is played the display will show the track number and the elapsed playing time of that track. After the last track has played the player stops and the display again shows the total tracks and total playing time on the disc. - Page 13 HOLD Switch The HOLD switch locks all of the other controls buttons. If you are carrying the CD player in a backpack, handbag, gym bag, etc, set the HOLD switch to the ‘ On’ position to prevent it from starting accidentally by something pressing against the POWER ON –...
-
Page 14: Special Playback Modes
SPECIAL PLAYBACK MODES Repeat Playback Either a single track or the entire disc can be repeated continuously. • 1 Track Repeat Begin playback as usual, then press the track. When the desired track is playing press the MODE button once. The Repeat Indicator appears in the display. - Page 15 Random (RAND) Playback While at stop mode, press the MODE button until the RAND indicator flashes in the display. Press the POWER ON – PLAY/PAUSE “On”. The player will randomly select a track for playback and will continue playing the tracks on the disc in random until all tracks have been played.
-
Page 16: Programmed Playback
PROGRAMMED PLAYBACK You can program the player to play just the tracks you want to hear in the specific order that you want them to play. A maximum of 24 tracks can be programmed. Note: You cannot program tracks during playback. If a disc is playing press the STOP –... - Page 17 6.) After the last programmed track has played the player stops and the display again shows the total tracks and playing time. However the programmed sequence remain in the memory. Press the PROG/MEMORY button, then the POWER ON – PLAY/PAUSE button to play the programmed sequence again.
-
Page 18: Listening To Radio
LISTENING TO RADIO 1.) Set the CD/RADIO selector switch to the RADIO position. 2.) Press the POWER ON – PLAY/PAUSE button to turn the radio ‘ On’ . An AM or FM radio frequency will appear in the display. 3.) If necessary press the ASP/BAND button to switch between AM and FM bands. 4.) Press the TUN. - Page 19 PRESETTING STATIONS IN TUNER MEMORY You may preset up to 20 of your favorite stations (10 FM and 10 AM) in the tuner memory for easy recall at any time. 1.) Tune to the first station that you wish to memorize. Example: FM 103.5 MHz. When the desired frequency appears in the display, press the PROG/MEMORY button once.
-
Page 20: Recalling Preset Station
RECALLING PRESET STATION 1.) Turn the radio ‘ On’ and press the ASP/BAND button to select the desired band. 2.) Press the PRESET UP or PRESET DOWN buttons to scroll through the preset numbers. 3.) You may also press one of the direct preset number keys (1 – 5) to go directly to a desired preset station number. -
Page 21: Care And Maintenance
CARE AND MAINTENANCE CLEANING THE CABINET Wipe with a soft cloth. If the cabinet is very dirty, dampen the cloth with a weak solution of neutral detergent and water, and then wipe clean. CLEANING THE LENS A dirty lens will cause sound skipping and, if the lens is very dirty, the CD may not work. -
Page 22: Limited Warranty
For repair or replacement, pack your unit in a padded box, enclose your check or money order payable to Emerson Radio Corp. in the amount of $9.00 (not required by California residents) to cover shipping and handling costs, and enclose a copy of your proof of purchase. - Page 23 EMERSON RADIO CORP. EMERSON Part No. : 16-2902 304-01 PRINTED IN CHINA HD8003_ib040403.p65 4/4/2003, 14:17...
