Thank you for purchasing the Dakota Digital MCL-30K-TCH gauge for your Harley Davidson Touring bike. This kit is
designed to be a replacement for all touring models, from 1996 – 2003. This is part of a six gauge package for touring
models so you can add additional gauges as you choose.
INSTALLATION
First read and familiarize yourself with all of the components and this manual. The first step is to remove the
seat and disconnect the negative side of the battery, as with any electronic install. Once the battery is disconnected you
are ready to start.
Remove the outer fairing for FLHT models; this will vary from model to model, please follow the service manual
to expose the wiring and gauges. Road Glide (FLTR) models will not need the outer fairing removed.
Remove Factory Gauge
Now you are ready to start unplugging and removing the gauge.
ULTRA FLHT (batwing fairings)
Remove the clamps that hold the Speed and Tach in place with a screw driver or wrench depending on
application, and remove the gauges.
MCL-30K-TCH

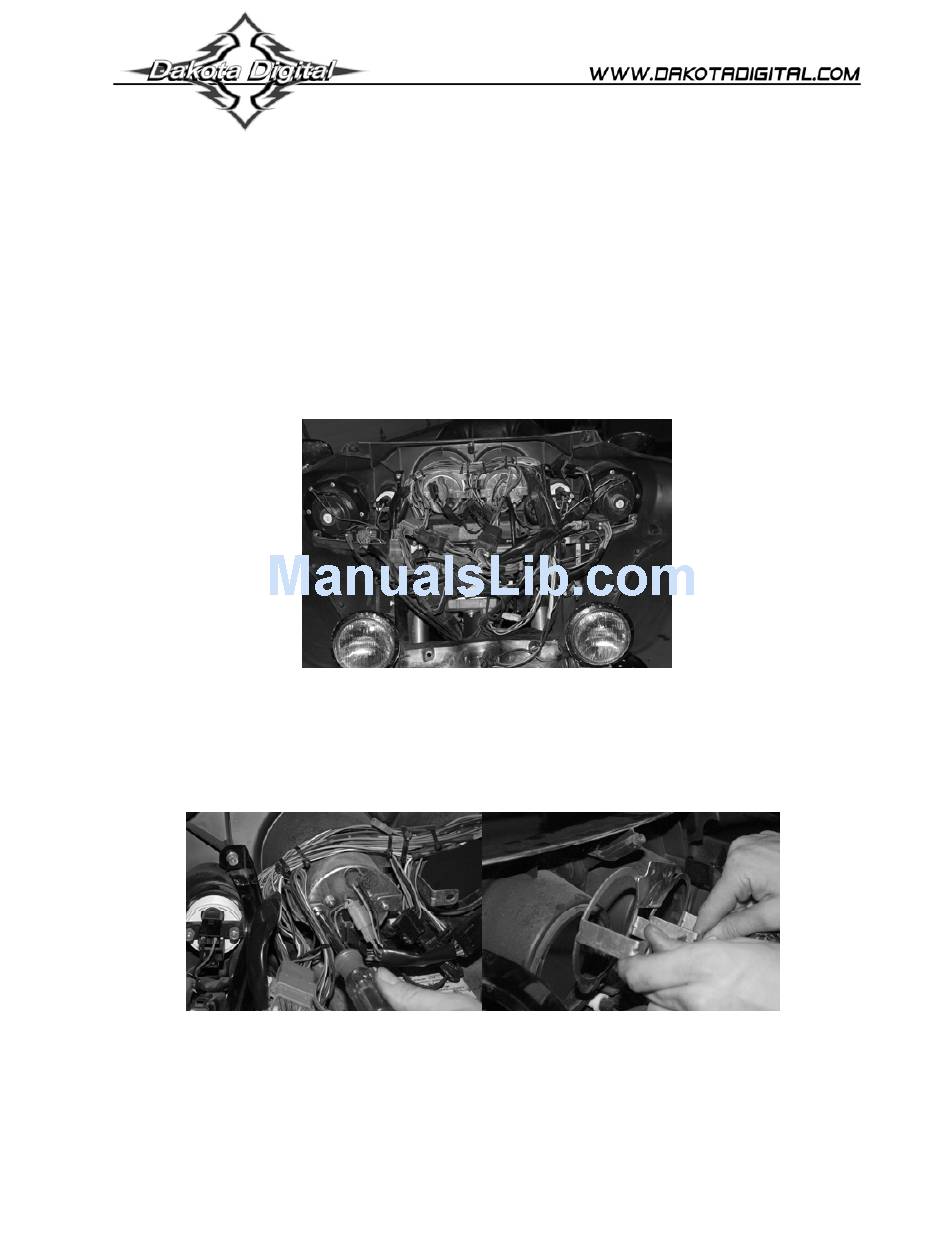

Ultra (FLHT) with outer removed
Remove nuts/screws and clamp to remove factory gauges
1
MAN#650336
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dakota Digital MCL-30K-TCH
Summary of Contents for Dakota Digital MCL-30K-TCH
- Page 1 MCL-30K-TCH Thank you for purchasing the Dakota Digital MCL-30K-TCH gauge for your Harley Davidson Touring bike. This kit is designed to be a replacement for all touring models, from 1996 – 2003. This is part of a six gauge package for touring models so you can add additional gauges as you choose.
- Page 2 ROAD GLIDE FLTR You will need to remove the speedometer and tachometer instrument bezel. To do this, remove two small screws on the left and right side of the bezel. Then lift up on the back of the bezel and slide the tab that is under the ignition switch out from under the switch cover, see photos below of ignition switch cover removed to show detail.
- Page 3 First locate your tachometer connector in the factory wiring harness that were unplugged from the original tach gauge. The wires needed for the Dakota Digital tachometer should all be found here. The factory connector can be cut off or the new wires can be spliced into the harness. Not all wires may be present on all years or models.
-
Page 4: Function Switch
The function switch, discussed above, is used to enter setup mode for all of the gauges. If you are only installing one or a couple Dakota Digital MCL-3K gauges, then setup may seem a little strange since they are designed to work as a set. -
Page 5: Tachometer Setup
TACHOMETER SETUP Main Menu Sub Menu Description set clock time nigHt set night dimming level t CAL set engine cylinder setting vPdAtE set rpm update rate for digital readout WXArN set rpm shift warning point geAr transmission gear programming SIgnAL select 12 HI (normal) or 5 LO (low voltage) tach signal The gauge can be set to read from 1-15 cylinder ignition signals. - Page 6 (Tachometer Setup Continued) gEAr gEAr Gear indicator setup gEAr gEAr This tachometer has a single digit display for gear position. The gauge can learn the positions based on speed and rpm so no sensors are needed, just what you’ve already connected. It will work with 4, 5, 6 or 7 speed transmissions. To program the gear positions, begin at a section of road where you can gradually shift through all of the gears.
-
Page 7: Service And Repair
Any action for breach of any warranty hereunder, including any implied warranty of merchantability, must be brought within a period of 24 months from date of original purchase. No person or representative is authorized to assume, for Dakota Digital, any liability other than expressed herein in connection with the sale of this product.
