Thank you for purchasing the Dakota Digital MCL-30K-SPD gauge for your Harley Davidson Touring bike. This is
designed to be a replacement for all touring models from 1996 – 2003. This is part of a six gauge package for touring
models so you can add additional gauges as you choose.
IMPORTANT NOTE!
100 miles (160km) of operation. See "preset odometer" for instructions.
INSTALLATION
First read and familiarize yourself with all of the components and this manual. The first step is to remove the
seat and disconnect the negative side of the battery, as with any electronic install. Once the battery is disconnected you
are ready to start.
Remove the outer fairing for FLHT models; this will vary from model to model, please follow the service manual
to expose the wiring and gauges. Road Glide (FLTR) models will not need the outer fairing removed.
Remove Factory Gauges
Now you are ready to start unplugging and removing the original speedometer.
ULTRA FLHT (batwing fairings)
Remove the clamps that hold the Speed and Tach in place with a screw driver or wrench depending on
application, and remove the gauges.
Remove speedo cable/unplug gauges
MCL-30K-SPD
This gauge has an odometer preset option that is only available for the first

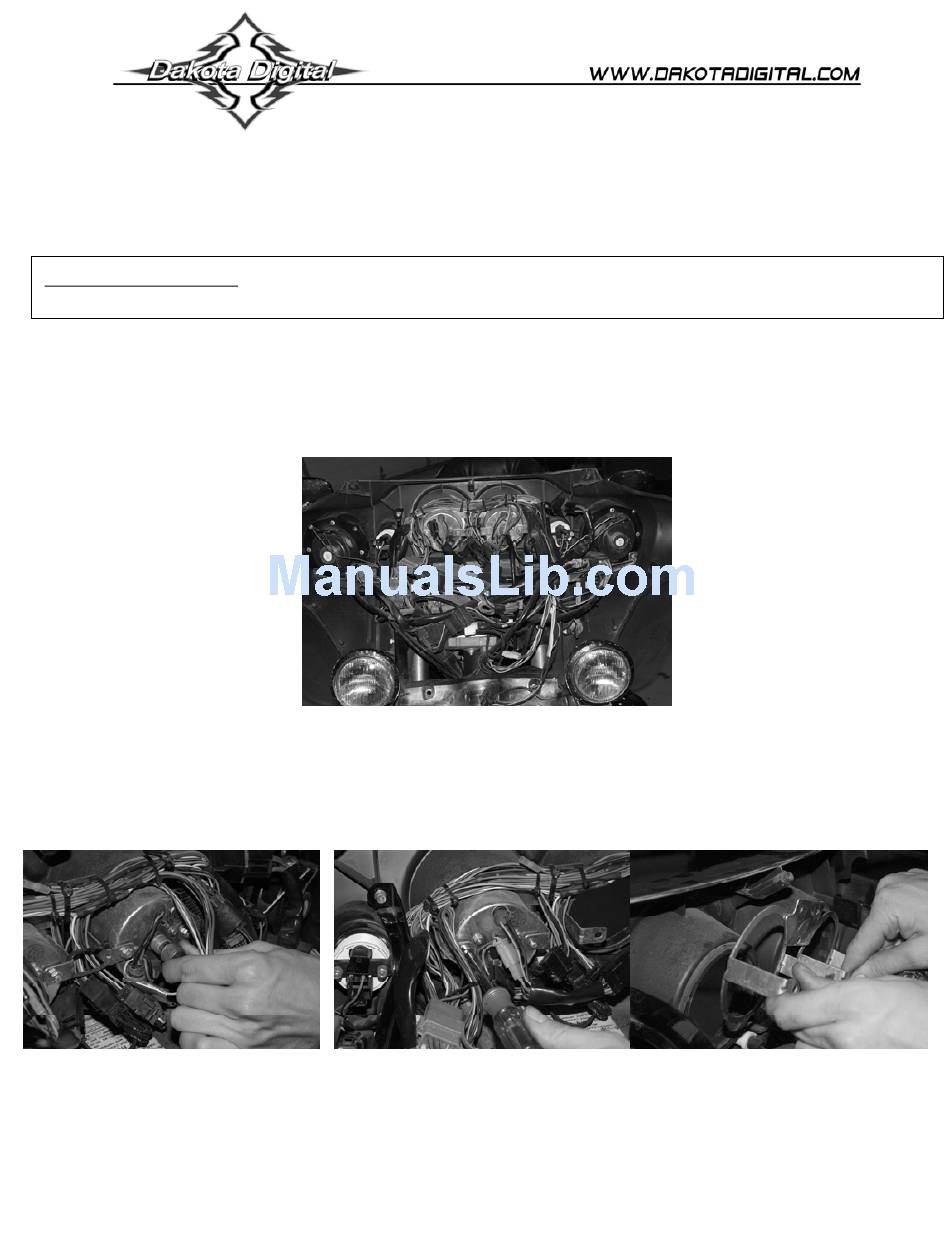

Ultra (FLHT) with outer removed
Remove nuts/screws and clamp to remove factory gauges
1
MAN#650334:A
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dakota Digital MCL-30K-SPD
Summary of Contents for Dakota Digital MCL-30K-SPD
- Page 1 MCL-30K-SPD Thank you for purchasing the Dakota Digital MCL-30K-SPD gauge for your Harley Davidson Touring bike. This is designed to be a replacement for all touring models from 1996 – 2003. This is part of a six gauge package for touring models so you can add additional gauges as you choose.
- Page 2 ROAD GLIDE FLTR You will need to remove the speedometer and tachometer instrument bezel. To do this, remove two small screws on the left and right side of the bezel. Then lift up on the back of the bezel and slide the tab that is under the ignition switch out from under the switch cover, see photos below of ignition switch cover removed to show detail.
- Page 3 The BLUE wire in the MCL-30K-SPD harness controls the dimming circuit. When this wire receives +12 volts, the gauge will dim to 50% intensity. This wire can be connected to a toggle switch, or to a Dakota Digital MCL-30K-TCH (the tachometer has a sensor that activates the dimming feature when ambient light is low).
- Page 4 The function switch, discussed above, is used to enter setup mode for all of the gauges. If you are only installing one or a couple Dakota Digital MCL-3K gauges, setup may seem a little strange since they are designed to work as a set.
-
Page 5: Speed Calibration
SPEEDOMETER SETUP Main Menu Sub Menu Description Avto select speed unit and auto calibrate speed AdJvSt select speed unit and adjust calibrate speed S SEt miles to service setting PErF enable/disable performance readings -odoMK one-time odometer preset (only shown while odometer has less than 100 miles) Until the speedometer is calibrated, the odometer display will show “PLEASE”... - Page 6 (Speedometer Setup Continued) S SET S SET Miles to Next Service setup S SET S SET The service mileage is a countdown mile meter. The service mile display can be disabled or can be set to count down from 500 – 7500 miles. If the service mileage is enabled and it gets to 0 miles, it will display “S -DvE” each time the key is turned on.
-
Page 7: Service And Repair
Any action for breach of any warranty hereunder, including any implied warranty of merchantability, must be brought within a period of 24 months from date of original purchase. No person or representative is authorized to assume, for Dakota Digital, any liability other than expressed herein in connection with the sale of this product.
