Lightolier GYMLYTE GM4B4SVI232 Specification

Page 1 of 2 SURFACE FLUORESCENT, 4' OR 8' LENGTH, 12-5/16" WIDE WITH STEEL WIRE DOOR
Features
• Excellent for gymnasiums and similar applications.
• Welded 20 gauge chassis for superior strength.
• Side mounted ballast for a low 4-1/8" deep profile.
• Wire guard welded to door frame.
• Door frame, hinged.
• Door, latch with screws.
• Steel wire guard to protect lens.
• Surface or stem mounted.

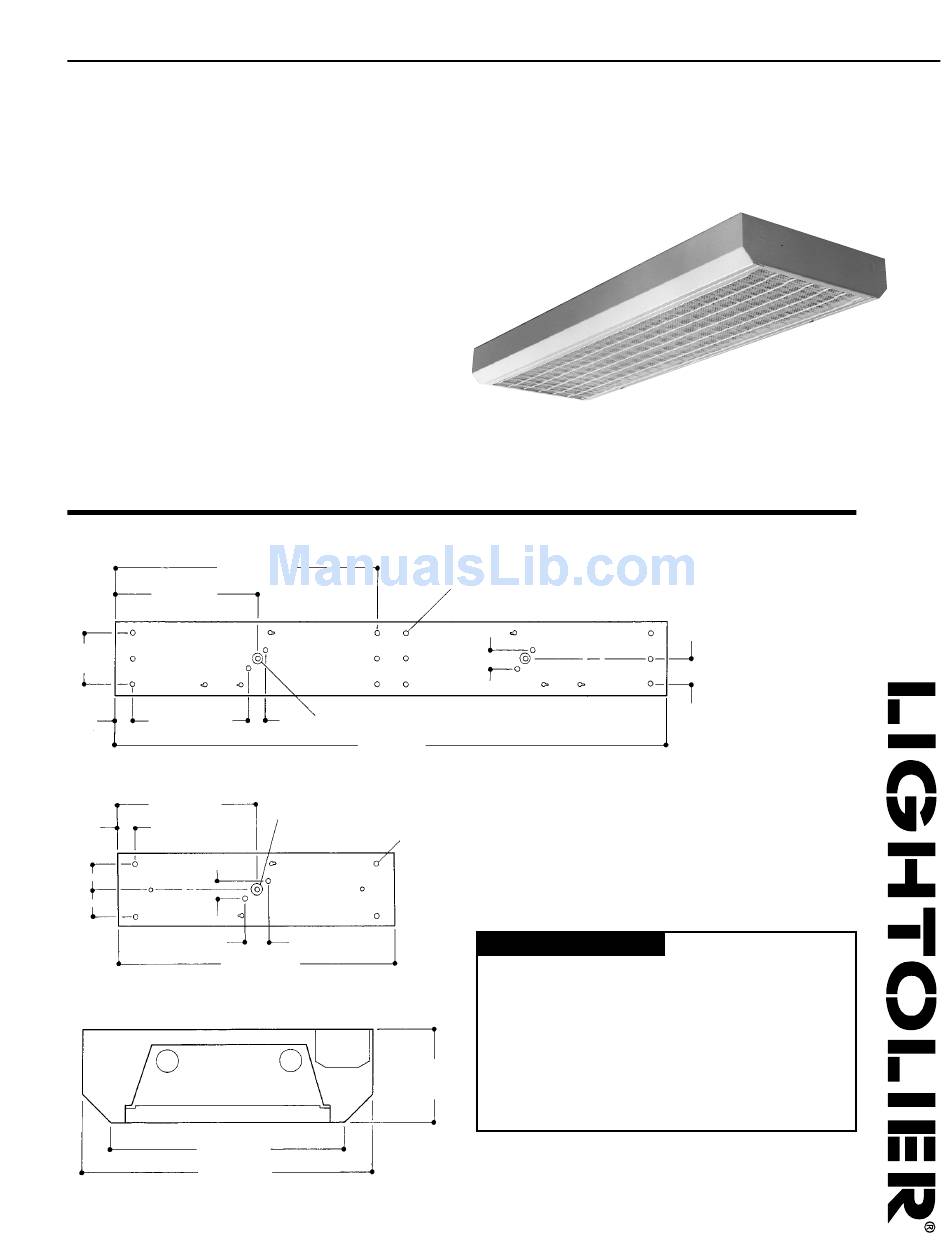

DIMENSIONS
45-1/8" (1146mm)
24-1/8" (613mm)
10"
(254mm)
3-1/16"
(78mm)
3" (76mm)
24-3/32" (612mm)
3-1/16" (78mm)
3" (76mm)
5" (127mm)
5" (127mm)
48-3/16" (1224mm)
4' FIXTURE
9-3/8" (238mm)
12-15/16" (329mm)
Double K.O. 2" Dia./7/8" Dia.
2 Places
96-3/8" (2448mm)
8' FIXTURE
Double K.O.
2" Dia./7/8" Dia.
7/8" Dia. K.O.
8 Places
3" (76mm)
4-1/8"
(105mm)
GYMLYTE
7/8" DIa. K.O. (16 Places)
3" (76mm)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier
a Genlyte Thomas Company
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division)
A0902
GM4B4SVI232
2 OR 3 LAMP T8 OR T12
5"
(127mm)
Type:
www.lightolier.com
Section 6A/Folio P30-10
