Lightolier GVB SERIES 1X4 Specification

Page 1 of 2
Features
• Excellent for locations where vandal resistance is required.
• 20 gauge steel body.
• Prismatic lens is 3/16" thick, pattern 12, minimum impact strength,
130 foot pounds.
• Full perimeter gasketing (closed cell Neoprene) between door frame
and lens.
• Tamper resistant holt head screws secure lens to housing.
• 45° mitered corners (body and door frame).
• Only 5-1/2" deep.
• 54.9% efficient (2 lamp T8).
• Side mounted ballast for cooler operation.
• Fully enclosed wiring.
• Meets NYC Code requirements.
FEATURES
(FS) flat steel frame.
GUARDSMAN

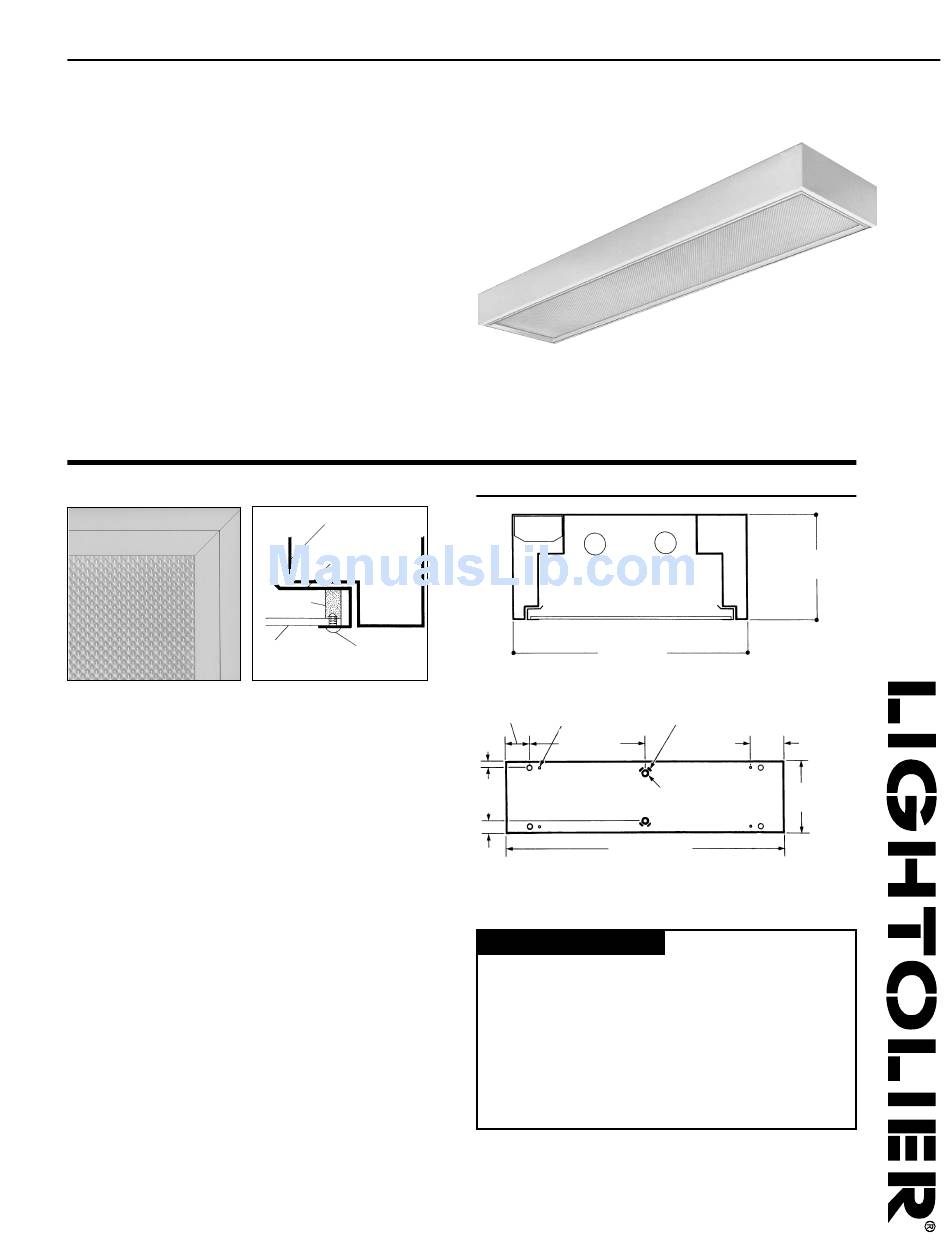

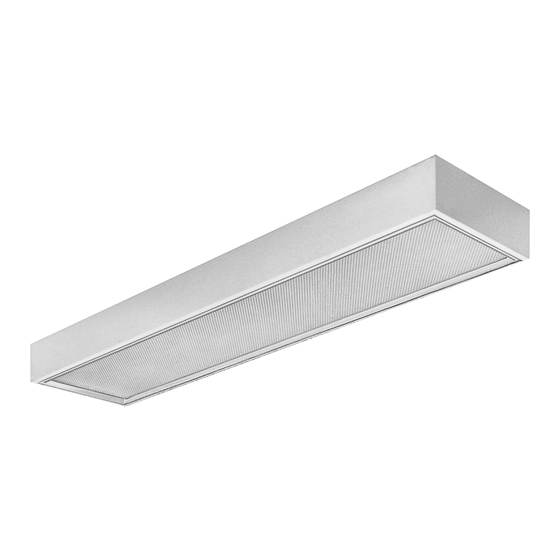

VANDAL RESISTANT, 1'x4' SURFACE BOX FLUORESCENT, 1 OR 2 LAMP, T8
Fixture
Door
Frame
Gasketing
(Close Cell Neoprene)
Holt Head
Lens
Screw
Gasketing Details
GVB SERIES 1X4
DIMENSIONS
12" (305mm)
9/32"
4"
mounting
(102mm)
hole
1-3/16"
20"
(30mm)
(508mm)
2"
(51mm)
48" (1219mm)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier
a Genlyte Thomas Company
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division)
A0902
5-1/2"
(140mm)
5-7/8"
3/16" x 5/8"
(149mm)
K.O.
12"
7/8" dia. K.O. within
(305mm)
1-7/8" dia. K.O.
Type:
