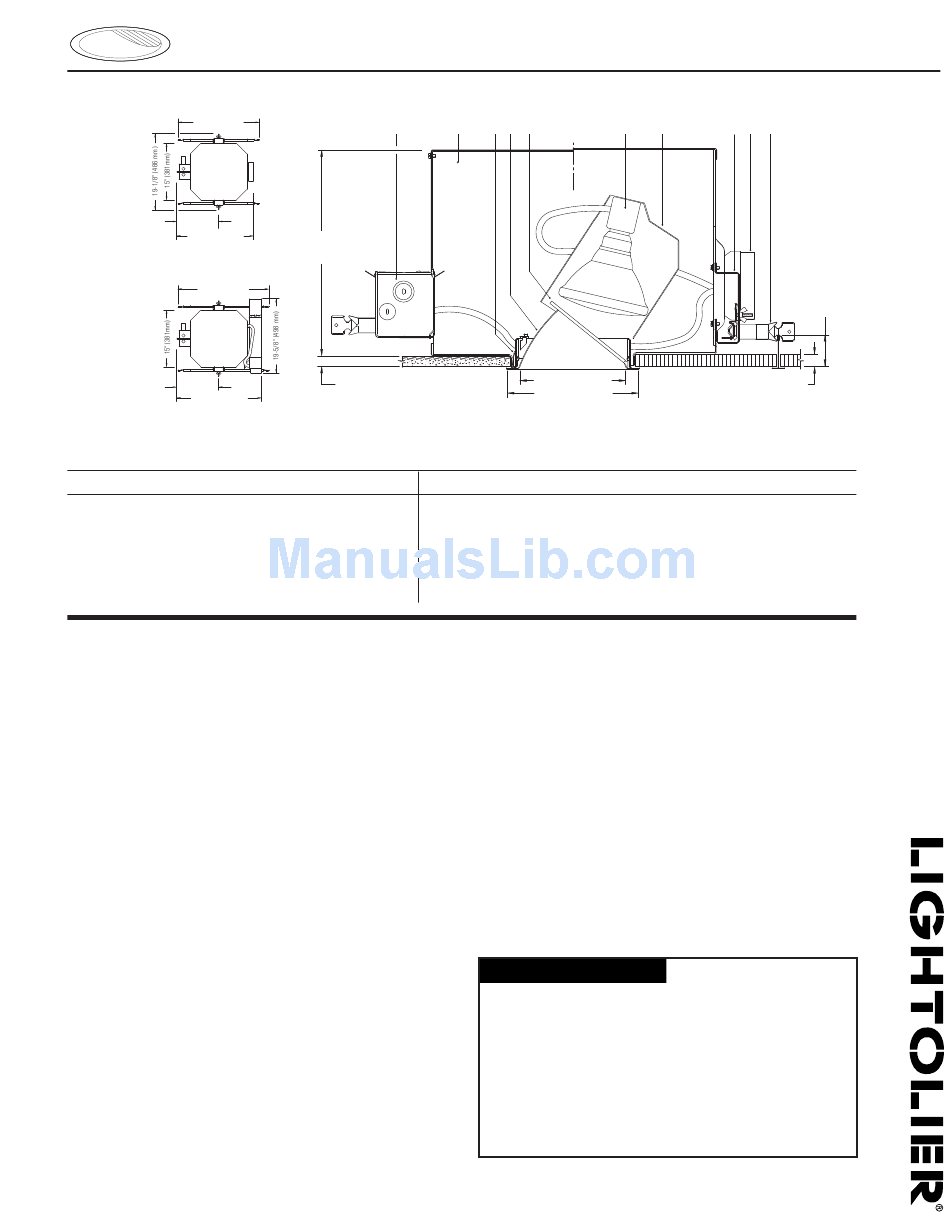

Lightolier Calculite C6P38MHL Specification

Page 1 of 2
20" (508 mm) to
30" (762 mm)
10-5/8"
(270 mm)
20-1/4" (514 mm)
Top View
(Electronic Ballast)
20" (508 mm) to
30" (762 mm)
10-5/8"
(270 mm)
22-1/8" (562 mm)
Top View
(Magnetic Ballast)
Ceiling Cutout: 6 9/16" (167mm) Dia.
Reflector Trim
C6P38MHL CLW Specular Clear White Painted Flange.
CLP Specular Clear Matching Flange.
CCDW Comfort Clear Diffuse, White Painted Flange.
CCDP Comfort Clear Diffuse, Matching Flange.
CCZW Champagne Bronze, White Painted Flange.
CCZP Champagne Bronze, Matching Flange.
Features
1. Reflector Trim: Low brightness,anodized aluminum; integral flange in
painted white or polished to match inside of cone.
2. Directional Spread Lens: High temperature, tempered glass. Precisely fits
onto cone; replaceable.
3. Kick Reflector: 0.040" (16 ga.) aluminum. Clear anodized "Kick" reflector with
directional spread lens distributes light smooth for vertical surface wall washing.
4. Socket: Medium base porcelain socket with nickel plated screwshell,
pulse-rated
5. Frame Housing: Steel, 0.029" (22-Ga.), matte black finish.
6. Frame Vertical Adjustment Mechanism: Accommodates mounting to
virtually any ceiling system using pre-installed mounting bars, or 1/2" EMT
tubing (by others). Single locking feature secures all adjustments. Alignment
holes and markings allow fixture to be pre-set prior to installation. Final
adjustment can be made from below from inside fixture.
7. Mounting Bars: Galvanized steel, 0.048" (18-ga.), pre-installed telescoping
bars extend to 30" long and lock securely into position. Built-in locking tabs
provide positive attachment to common T-bar systems. Self-centering feature
simplifies installation in 24" O.C. grid systems. Attaches to steel or wood
joists without accessories.
8. Retention Springs: Rust resistant springs secure trim for quick, tool-less
installation.
9. Ballast / Cover Assembly: Accessible from below and removable without
tools for inspection and ballast replacement .
10. Junction Box: 0.059" (16-ga.) galvanized steel. UL listed for 8 No. 12 AWG,
90°C through branch circuit conductors. Allows inspection from below.
11. Thermal Protector: (Not Shown) Meets NEC and UL requirements. Do Not
install insulation above nor within 3" (76mm) of any part of the luminaire.
Electrical
Electronic Ballast: 120V or 277V, 50/60 Hz. Electronic, encased, high power
factor, T.H.D. <15%, thermally and transient protected, RMI/RFI complies with
FCC part 18 non-consumer limits, shut-down circuit at end of lamp life, sound
rating "A", -5° F minimum starting temperature, Type 1 Outdoor rating.
Calculite ® HID Lensed Wall Wash
6" Aperture, PAR38/PAR30 Ceramic Metal Halide, Lensed
10 5
10 7/8"
(276 mm)
C
5/8" (16 mm)
Frame-In Kit
C6A70P38E1
C6A70P38E2
C6A10P38E1
C6A10P38E2
Electrical (Cont.)
Magnetic Ballast: 120V/277V Dual Voltage, 60HZ Encased and potted, H8-HPF
Circuit type, high power factor, sound rating "B", -20° F minimum starting
temperature, type 1 outdoor rating.

Options and Accessories

Fuse (magnetic ballast): Add suffix F1 or F2 to FIK (F1=120V F2=277V)
Chicago Plenum: Consult Factory.
Labels
UL (Suitable for Damp Locations), CSA (magnetic ballast only), I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • B0406
8 1 2
4 3
5-3/4" (146 mm) Dia.
7-7/8" (181 mm) Dia.
Lamp (Ceramic MH)
Electronic 120V 70W
Electronic 277V 70W
Electronic 120V 100W
Electronic 277V 100W
Magnetic 120V/277V 70W
Magnetic 120V/277V 100W
Ballast ANSI Code Voltage
70W MH M98/M143 120/277
100W MH M90/M140 120/277
Ballast ANSI Code Voltage
70W MH M98/M143 120/277
100W MH M90/M140 120/277
a Genlyte company
C6P38MHL
9
6 7
Vertical Adjustment:
3/4" (25 mm) to
2 7/8" (73 mm)
1 1/8" (29 mm) max.
Ceiling Thickness
PAR38 Wide Flood
PAR38 Wide Flood
PAR38 Wide Flood
PAR38 Wide Flood
PAR38 Wide Flood
PAR38 Wide Flood
Max Amps Input Watts
0.67/0.28 78
0.90/0.43 110
Max Amps Input Watts
1.90/0.80 94
2.40/1.10 125
Type:
www.lightolier.com
