Lightolier C6CW SERIES Installation

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE
This fixture is intended for installation in accordance with the National Electrical Code and local regulations. To
assure full compliance with local codes and regulations, check with your local electrical inspector before
installation. To prevent electric shock, turn off electricity at fuse box before proceeding.
Retain these instructions for maintenance reference.
INSTALLATION PROCEDURE FOR: C6CW SERIES 6" DIA. H.I.D. WALL MOUNT CYLINDER
USED WITH C6T6V SERIES FLANGLESS REFLECTOR TRIM (ORDER SEPARATELY)
WARNING:
USE ONLY REFLECTOR TRIMS PROVIDED BY LIGHTOLIER. USE OF OTHER MANUFACTURES' REFLECTOR
TRIMS MAY VOID THE UNDERWRITERS LABRATORIES LISTING AND COULD CONSTITUTE A FIRE HAZARD.
CAUTION:
For wet locations, in accordance with Underwriters Laboratories
requirements, a line of caulking compound such as acrylic or silicone must be
placed around the perimeter of CANOPY to seal water away from the
outlet box and back openings.

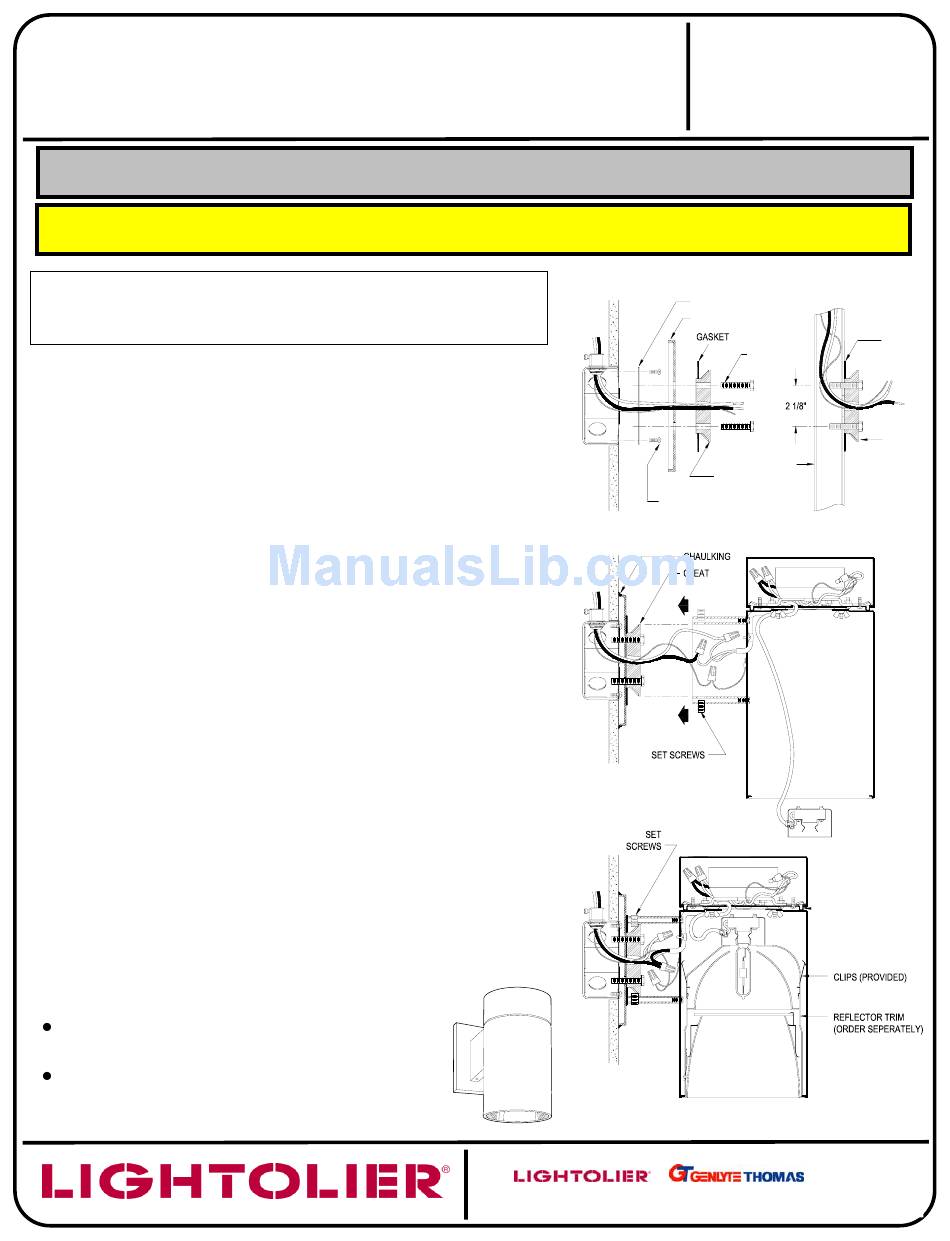

INSTALLATION OF WALL CYLINDER TO OUTLET BOX

(Fig. 1, 2, 3, & 4)
STEP 1:
Attach MOUNTING PLATE to outlet box with OUTLET BOX
SCREWS.
STEP 2:
Pass supply leads through opening in CANOPY and CLEAT.
STEP 3:
Attach CANOPY, CLEAT/GASKET to MOUNTING PLATE with (2)
¼-20 BOLTS.
STEP 4:
Make Connections. Bare Copper and/or green insulation wire(s)
must be connected to SUPPLY GROUND. Connect WHITE BALLAST LEAD
to NEUTRAL (WHITE) SUPPLY LEAD. Connect BLACK BALLAST LEAD to
HOT SUPPLY LEAD. Use wire nuts (local hardware items).
STEP 5:
Install SET SCREWS loosely. Place cylinder over CLEAT and
tighten (2) SET SCREWS.
INSTALLATION OF WALL CYLINDER TO POST OR OTHER
VERTICAL SURFACE MOUNTING (Fig. 2, 3 & 4)
STEP 1: CLEAT can also be mounted directly to any flat surface
such as MULLION. In this case, use of CANOPY is optional. Bring
supply leads through CLEAT and install CLEAT to wall. For wet
locations, in accordance with Underwriters Laboratories requirements,
a line of caulking compound such as acrylic or silicone must be
placed around the perimeter of EXTRUDED ARM to seal water away
from the wireway and back openings.
STEP 2:
Proceed with Step 4 and 5 above.
INSTALLATION OF REFLECTOR TRIM TO CYLINDER (Fig. 4)
Follow installation instructions in Reflector Trim Instruction Sheet IS:C4T4V.
CAUTION:
DO NOT ENERGIZE THE LAMP UNTIL REFLECTOR
TRIM IS COMPLETELY INSTALLED.
INSTALL ONLY T-6 TUBULAR SINGLE-ENDED
CREAMIC ARC TUBE METAL HALIDE LAMP.
INSTRUCTION SHEET NO.
A0604
MOUNTING PLATE
CANOPY
OUTLET BOX SCREWS
FIG. 1
FIG. 3
FIG. 4
A
631 Airport Road, Fall River, MA 02720
IS:C6CW
Page 1 of 2
GASKET
1/4-20 BOLTS
CLEAT
MULLION
CLEAT
FIG. 2
