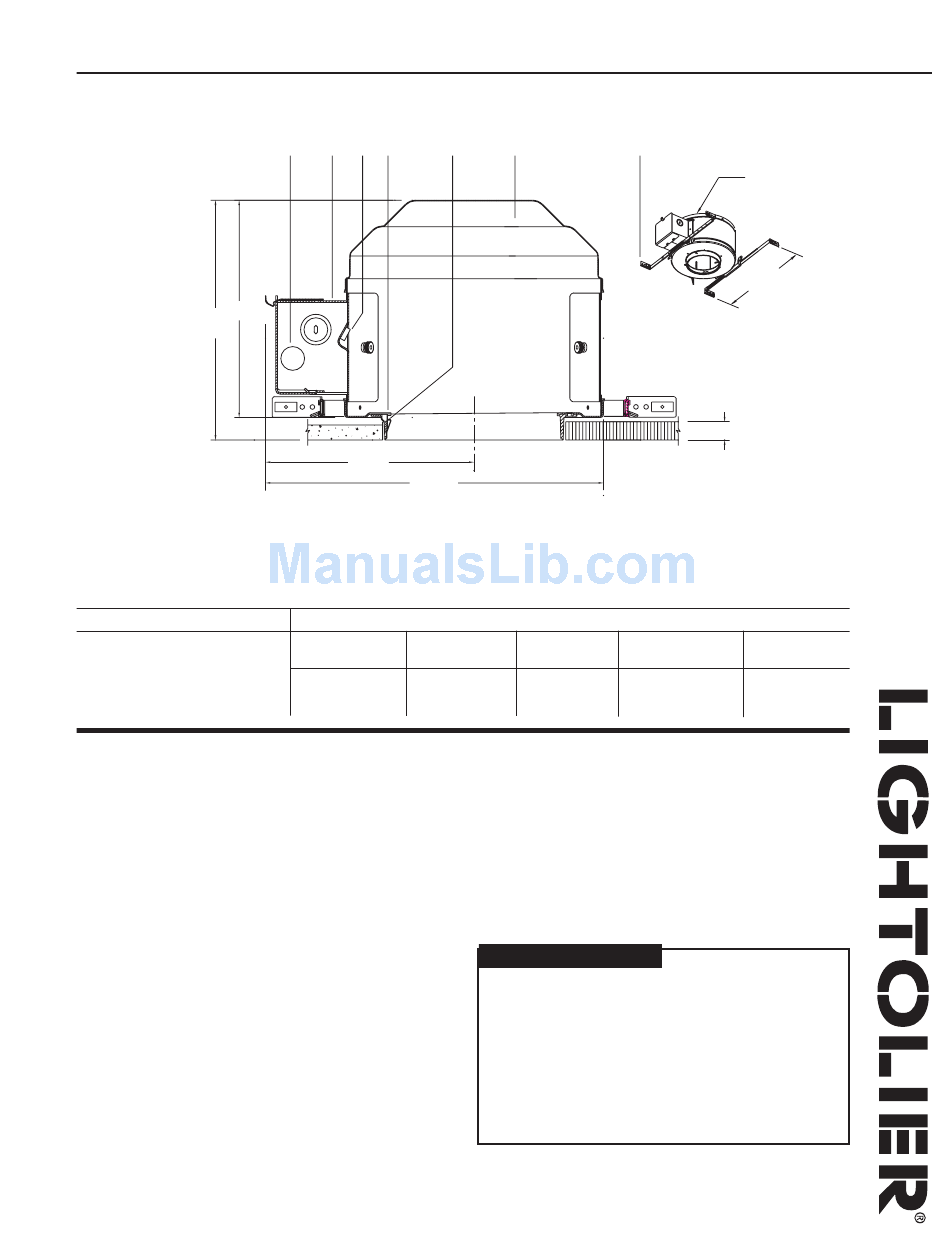

Lightolier Calculite C6A120 Specification

Page 1 of 1
8 3/4" min.* 8"
9 1/4" max.
*8 3/4" min. is for
up to 3/4" thick ceiling.
Ceiling Cutout: 6 11/16" Dia.
Frame-In Kit
C6A120
FEATURES
1. Housing: Steel, 0.03" (22 ga.). Top Cover: Aluminum, 0.04" (14 ga.). Matte
black finish. AirSeal housing minimizes air leakage to less than 2CFM at
®
1.57 PSF (or 75pa).
2. Mounting Frame: Die-cast aluminum for dry or plaster ceilings. Locks into
position along length of mounting bars with locking screws.
3. Retaining Springs: Precision-tooled steel springs secure reflector trim to
mounting frame for quick, tool-less installation.
4. Mounting Bars: Galvanized steel, 0.06" (16 ga.). Bars pivot for easy instal-
lation and wire-in below ceiling line. Bars extend to accommodate 16" to 24"
O.C. joist spacing. Bars can accommodate 12" O.C. joist spacing after a slight
field modification (see instruction sheet). Integral self-tapping screws for
securing to wood or metal construction. Built-in tabs for locking to T-bars
without the need of accessories.
5. Snap-In Connectors: Keyed to accept power and socket harnesses which
are provided with reflector trim.
6. Junction Box: Galvanized steel .063" (14 ga.). UL Listed for maximum of 8
No. 12 AWG 90°C through branch circuit conductors. Accessible from inside
and outside of fixture. Outside J-Box door is hinged for maximum opening.
Snap-in plug is provided on inside cover for quick connection to power
harness.
7. Thermal Protector: Meets NEC and UL requirements. Insulation must be
kept 3" away from fixture sides and wiring compartments and must not be
placed above fixture in a manner which will entrap heat.
8. Reflector Trim: Compatible reflector trims are listed above. See separate
reflector trim specification sheets for complete catalog numbers and details.
Calculite Evolution Recessed Downlighting
®
6" Aperture Incandescent 120V Non-IC AirSeal
7 6 5 2
7 3/4"
12 3/8"
Reflector Trim
Open Open
Downlight Downlight
C6AD C6P30D
100W A19, MB19 75W PAR30
100W BT15 (Short Neck)
3 1
Adjustable
Accent Wall Washer/Downlight
C6P30A
75W PAR30
(Short Neck)
Options & Accessories
Chicago Plenum
Consult Factory
Labels
UL Listed (suitable for damp locations), I.B.E.W.
Air leakage is less than 2cfm at 75pa, tested in accordance with ASTM E-283.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Thomas Company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Thomas Group LLC (Lightolier Division) • B0711
C6A120
4
9 1/2" Dia.
13 3/4" to 24"
Adjustment
(mounting bars
included)
1 1/4" Max. Ceiling Thk.
Open Lensed
Wall Washer
C6AW C6P30L
C6A120
100W A19, MB19 75W PAR30
100W BT15 (Short Neck)
Type:
www.lightolier.com
Frame-In Kit
®
