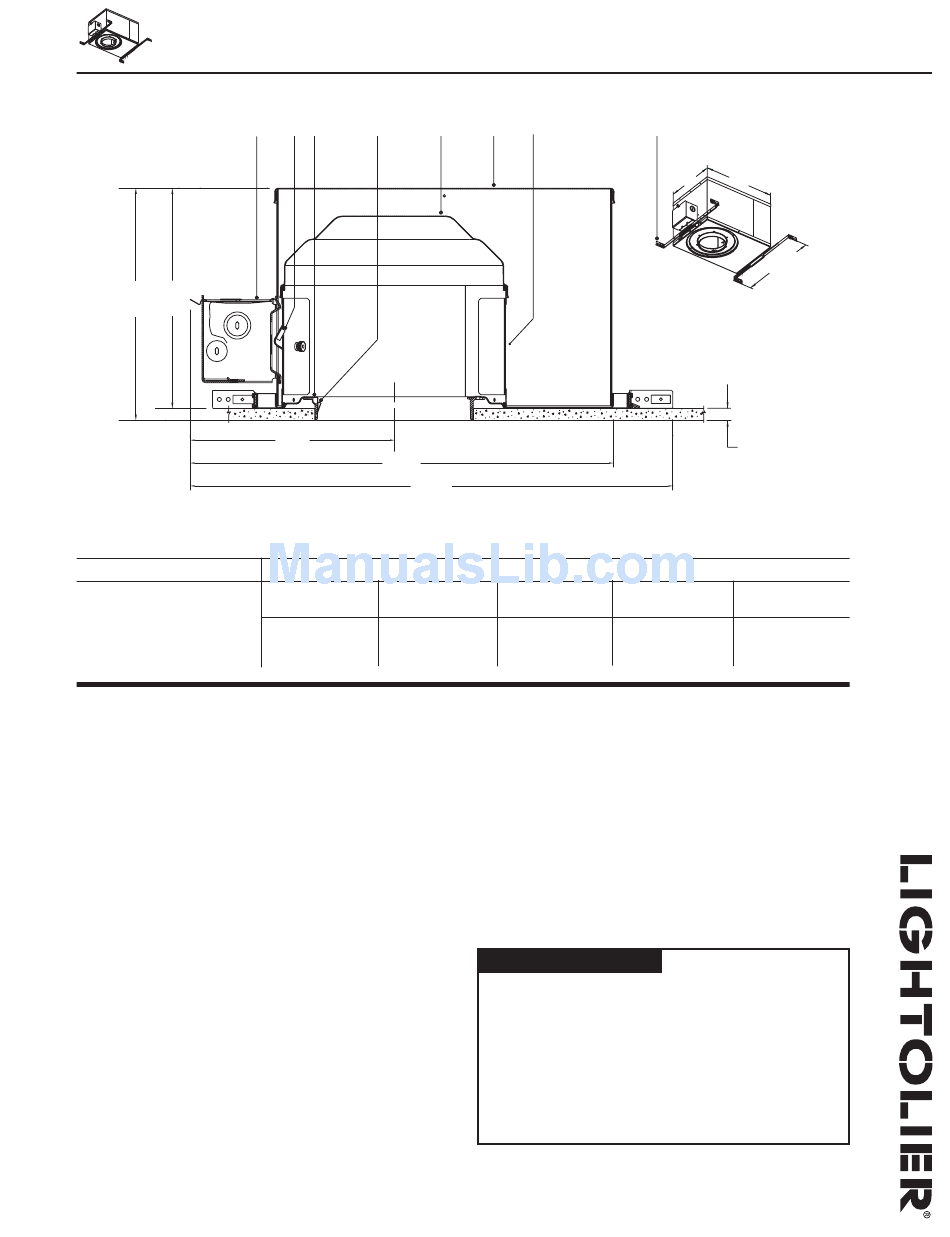

Lightolier Calculite C6AIC Specification

Page 1 of 1
7
9 1/4"
9 3/4" min.*
10 1/4" max.
*9 3/4" min. is for
up to 1/2" thick ceiling.
Ceiling Cutout: 6 11/16" Dia.
Frame-In Kit
C6AIC
Features
1. Outer Housing: Raw aluminum 0.036" (18 ga.) allows for heat dissipation.
Top and bottom cover: aluminum 0.050" (16 ga.). Top cover removable for
top access.
2. Housing: Steel, 0.03" (22 ga.). Top Cover: Aluminum, 0.04" (14 ga.). Matte
black finish. AirSeal ® housing minimizes air leakage to less than 2CFM at
1.57 PSF (or 75pa) in accordance with ASTM E283, which complies with
Model Energy Code and Washington State Energy Code and reduces heat
loss and condensation in ceiling.
3. Mounting Frame: Die-cast aluminum for dry or plaster ceilings. Locks into
position along length of mounting bars with locking screws.
4. Retaining Springs: Precision-tooled steel springs secure reflector trim to
mounting frame for quick, tool-less installation.
5. Mounting Bars: Galvanized steel, 0.06" (16 ga.). Bars pivot for easy
installation and wire-in below ceiling line. Bars extend to accommodate
16" to 24" O.C. joist spacing. Integral self-tapping screws for secure to
wood or metal construction. Built-in tabs for locking to T-bars without the
need of accessories.
6. Snap-In Connectors: Keyed to accept power and socket harnesses
which are provided with reflector trim.
7. Junction Box: Galvanized steel .063" (14 ga.). UL listed for maximum of
4 No. 12 AWG 90°C through branch circuit conductors. Accessible from
inside and outside of fixture. Outside J-Box door is hinged for maximum
opening. Snap-in plug is provided on inside cover for quick connection to
power harness.
8. Thermal Protector: Meets NEC and UL requirements.
9. Reflector Trim: Compatible reflector trims are listed above. See separate
reflector trim specification sheets for complete catalog numbers and
details.
Calculite Evolution Recessed Downlighting
®
6 3 4 2
8 1/2"
17 3/4"
20 1/4"
Reflector Trim
Open Open
Downlight Downlight
C6AD C6P30D
100W A19, MB19 75W PAR30
100W BT15 (Short Neck)
6" Aperture Incandescent 120V IC AirSeal
1 8 5
Adjustable
Accent Wall Washer/Downlight
C6P30A C6AW
75W PAR30 100W A19, MB19
(Short Neck) 100W BT15
Options & Accessories
Chicago Plenum Consult Factory
Labels
cULus Listed (suitable for damp locations), I.B.E.W.
Complies with air Leakage requirements stated in the Model Energy Code, the
Washington State Energy Code and Title 24.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • D1212
C6AIC
Frame-In Kit
®
14 1/4"
10"
13 3/4" to 24"
Adjustment
(mounting bars
included)
1" Max. Ceiling Thk.
Open Lensed
Wall Washer
C6P30L
50W PAR30
(Short Neck)
Type:
www.lightolier.com
