Lightolier Calculite C6P38L Specification

Calculite
®
Page 1 of 2
12 1/4" DIA
9 1/4"
15 3/8"
O.A.
10 3/8"
11 1/8" min.*
11 5/8" max.
*11 1/8" min. is for
up to 3/4" thick ceiling.
Ceiling Cutout: 6 11/16" Dia.
Reflector Trim
C6P38L CLW Specular Clear, White Flange
C6P38L CLP Specular Clear, Polished Flange
C6P38L
Add suffix. See options for other finishes.
Features
1. Aperture Cone: 16 ga. aluminum, 50° visual cutoff to lamp and lamp image.
Keyed to lampholder/kick reflector assembly to prevent incorrect installation
of cone. Available with painted white or polished flange. Interchangeable
with other Evolution 6" line voltage trims.
2. Kick Reflector: 16 ga. Alzak
® aluminum. Specular kick reflector with
directional spread lens distributes light smoothly for vertical surface wall
washing.
3. Directional Spread Lens: High temperature, tempered glass. Precisely
contoured to fit onto cone; replaceable.
4. Socket Harness: Medium base porcelain socket with nickel plated
screw shell, No. 18 SF-1 leads to keyed plug-in quick connector for power
connection to junction box.
5. Frame-In Kit: Compatible frame-In kits are listed above. See separate
frame-in kit specification sheets for details.
Non-IC and Non-IC AirSeal - Insulation must be kept 3" away from fixture
®
sides and wiring compartments and must not be placed above fixture in a
manner which will entrap heat.
IC-AirSeal - Fixture may be in direct contact with insulation.
®
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • E0711

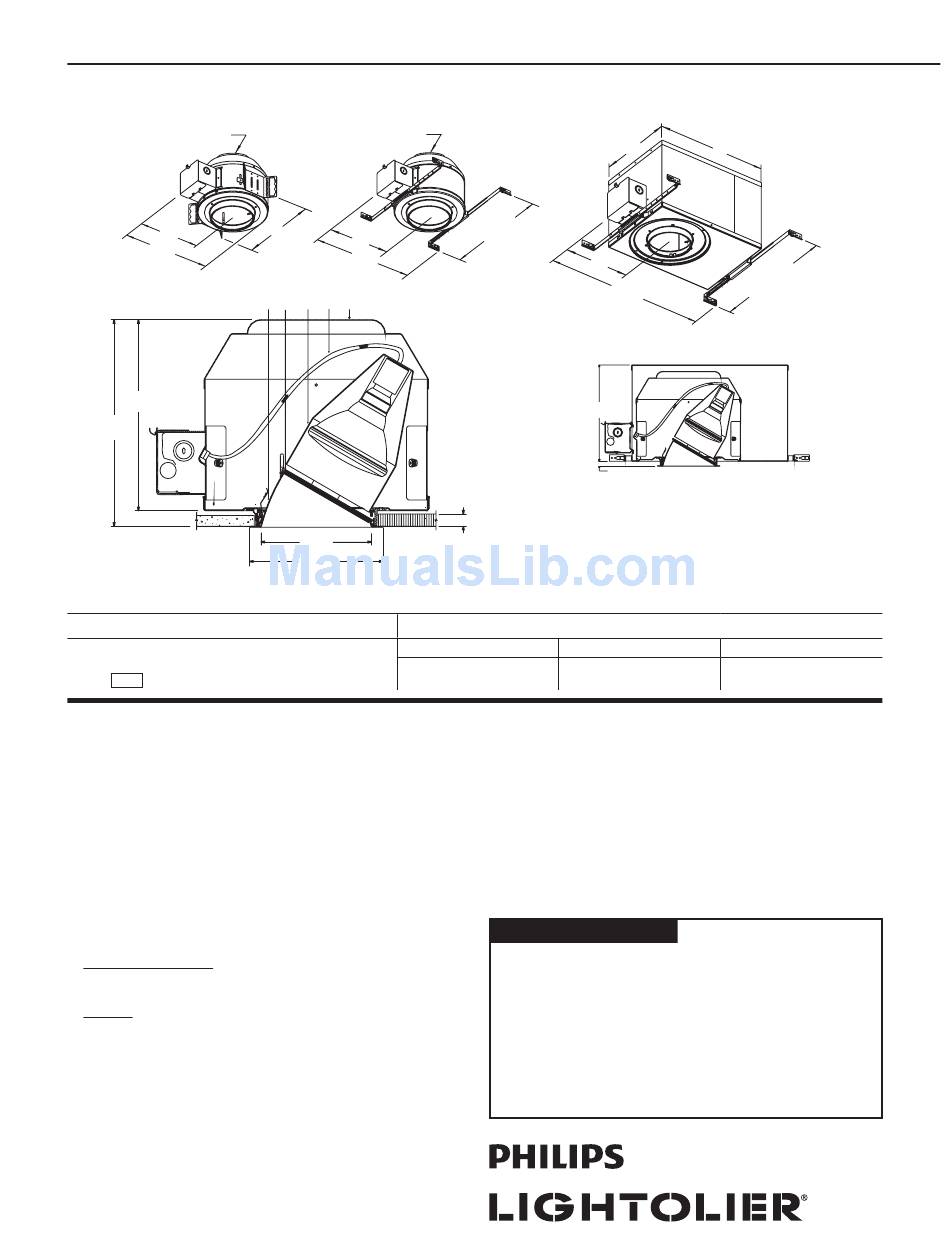

Evolution Incandescent Lensed Wall Washer
12 1/4" DIA
C6D120
Non-IC
15 1/4"
9 1/4"
15 3/8"
O.A.
1 3 2 4 5
5 5/8" Dia.
C6P38LCLW / C6D120 or
7 3/16" Dia.
C6P38LCLW / C6DA120
Frame-In Kit
Non-IC
C6D120
120W PAR38
C6DA120
13 1/2"
®
Non-IC AirSeal
13 3/4" TO 24"
Adjustment
(Mounting Bars
Included)
10 1/4"
24 1/4"
O.A.
11 1/4"
1/2" to 1" Thk. Ceiling
1 1/4" Max. Ceiling Thickness
Non-IC AirSeal
®
C6DA120
120W PAR38
Options & Accessories
Reflector Finishes
1
Clear: CL
Comfort Clear Diffuse: CCD
Champagne Bronze: CCZ
Specify desired flange
1
W White, P Polished
Labels
UL Listed (suitable for damp locations), I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
C6P38L
6" Aperture PAR38 Reflector Trim
C6DAIC
18 1/8"
®
IC AirSeal
13 3/4" TO 24"
Adjustment
(Mounting Bars
Included)
C6P38LCLW / C6DAIC
IC-AirSeal
®
C6DAIC
90W PAR38
Specular Gold: GD
Specular Black: BK
White: WH
Type:
