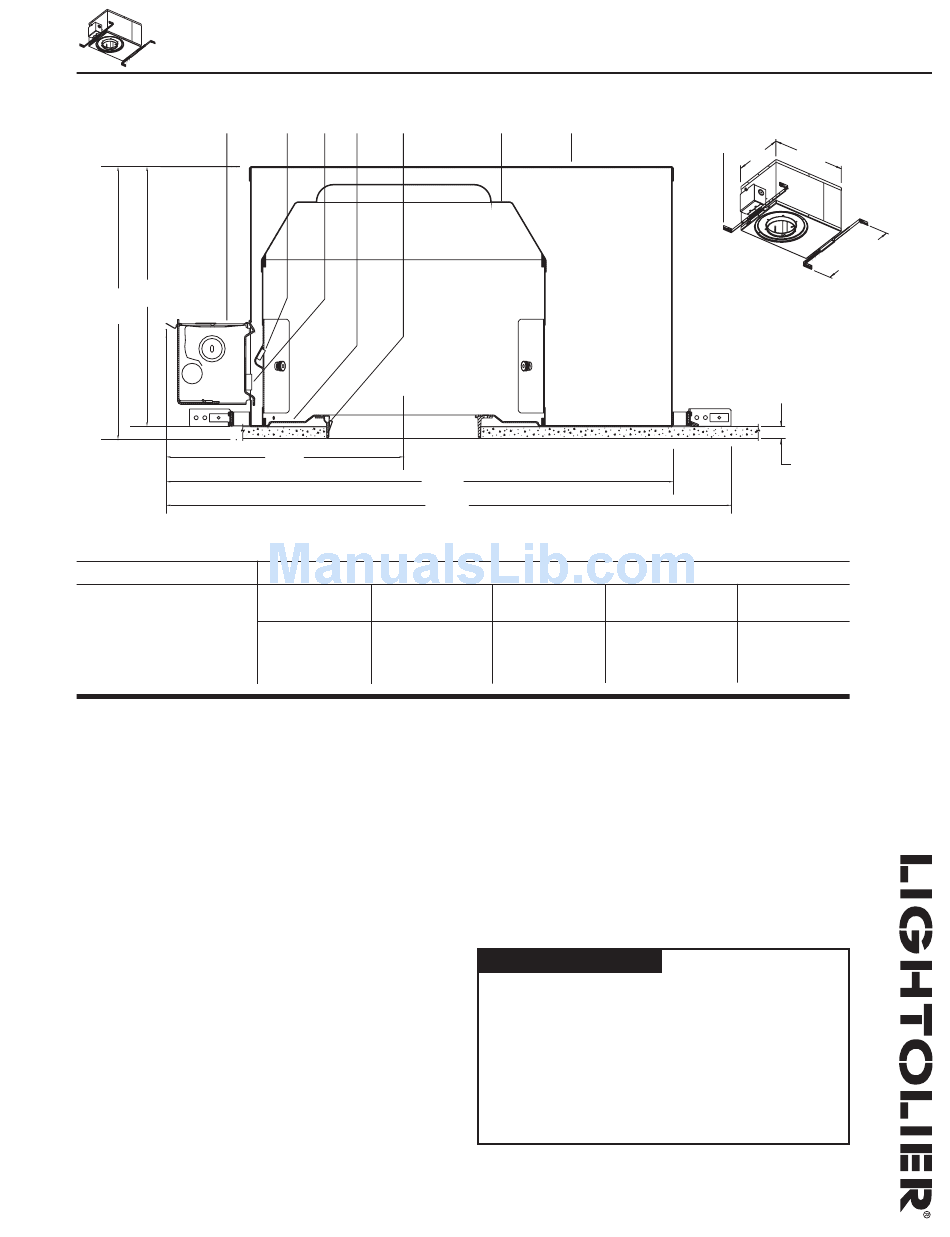

Lightolier Calculite C6DAIC Specification

Page 1 of 1
7
11 1/8"
11 5/8" min.*
12 1/8" max.
*11 5/8" min. is for
up to 1/2" thick ceiling.
Ceiling Cutout: 6 11/16" Dia.
Frame-In Kit
C6DAIC
Features
1. Outer Housing: Raw aluminum 0.036" (18ga.) allows for heat dissipation.
Top and bottom covers, aluminum 0.050" (16 ga.). Top cover removable for
top access.
2. Housing: Steel, 0.03" (22 ga.). Top Cover: Aluminum, 0.04" (14 ga.). Matte
black finish. AirSeal housing minimizes air leakage to less than 2CFM at
®
1.57 PSF (or 75pa) in accordance with ASTM E283, which complies with
Model Energy Code and Washington State Energy Code and reduces heat
loss and condensation in ceiling.
3. Mounting Frame: Die-cast aluminum for dry or plaster ceilings. Locks into
position along length of mounting bars with locking screws.
4. Retaining Springs: Precision-tooled steel springs secure reflector trim to
mounting frame for quick, tool-less installation.
5. Mounting Bars: Galvanized steel, 0.06" (16 ga.). Bars pivot for easy
installation and wire-in below ceiling line. Bars extend to accommodate
16" to 24" O.C. joist spacing. Integral self-tapping screws secure to wood
or metal construction. Built-in tabs for locking to T-bars without the need
of accessories.
6. Snap-In Connectors: Keyed to accept power and socket harnesses
which are provided with reflector trim.
7. Junction Box: Galvanized steel .063" (14 ga.). UL listed for maximum of
4 No. 12 AWG 90°C through branch circuit conductors. Accessible from
inside and outside of fixture. Outside J-Box door is hinged for maximum
opening. Snap-in plug is provided on inside cover for quick connection to
power harness.
8. Thermal Protector: Meets NEC and UL requirements.
9. Reflector Trim: Compatible reflector trims are listed above. See separate
reflector trim specification sheets for complete catalog numbers and
details.
Calculite Evolution Recessed Downlight
®
6" Aperture Deep Incandescent 120V IC AirSeal
8 3
6 4
10 1/4"
20 3/4"
24 1/4"
Reflector Trim
Open Open
Downlight Downlight
C6AD C6P38D
100W A19, MB19 120W PAR38
100W BT15
200W A21
2 1
Adjustable Open
Accent Wall Washer/Downlight
C6P38A C6AW
90W PAR38 100W BT15, MB19
200W A21
Options & Accessories
Chicago Plenum Consult Factory
Labels
UL Listed (Type I.C., Suitable for damp locations), I.B.E.W.
Complies with Air Leakage Requirements stated in the Model Energy Code,
Washington State Energy Code and Title 24.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • C0711
C6DAIC
Frame-In Kit
®
5
18 1/8"
13 1/2"
13 3/4" to 24"
Adjustment
(mounting bars
included)
1" Max. Ceiling Thk.
Lensed
Wall Washer
C6P38L
90W PAR38
Type:
www.lightolier.com
