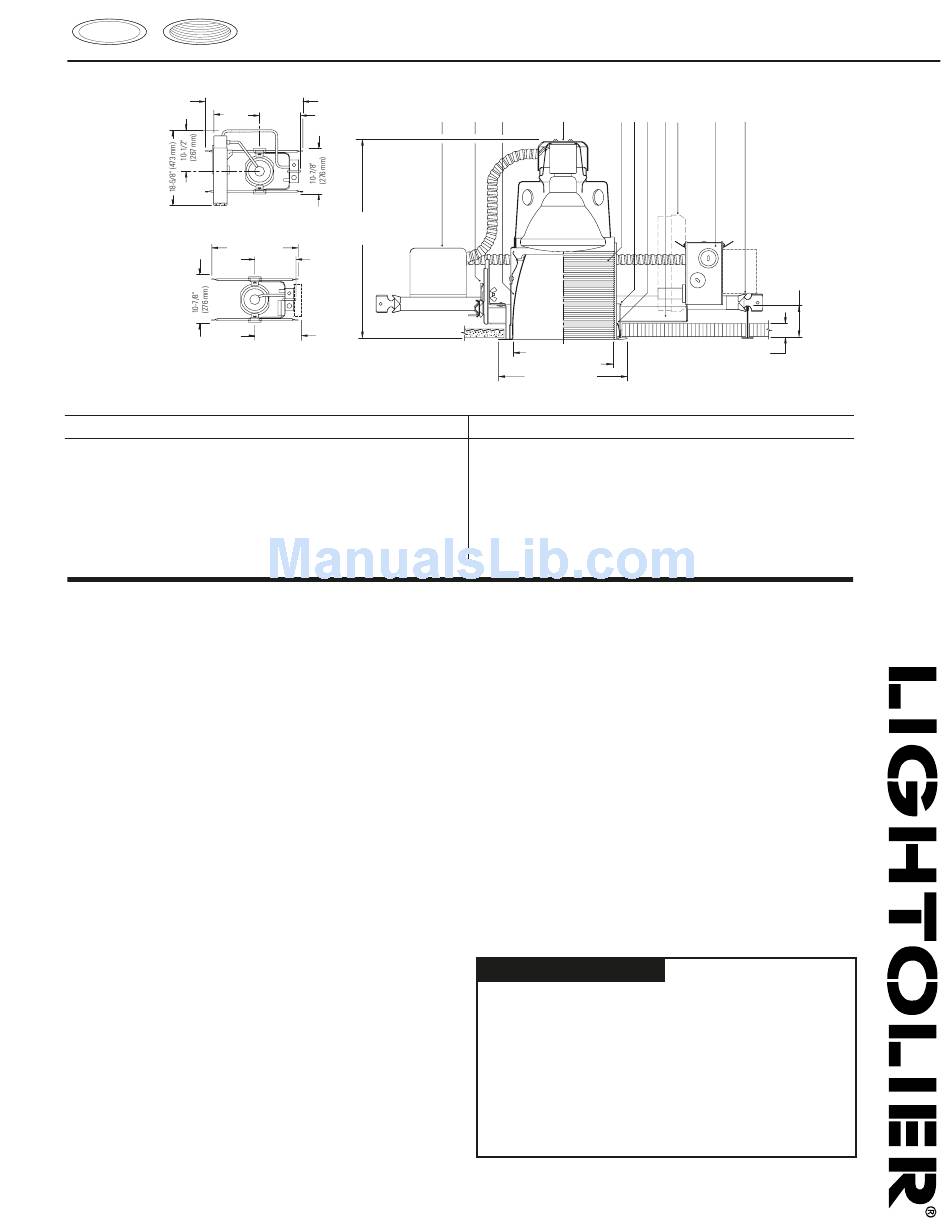

Lightolier Calculite C6P38MH Specification

Page 1 of 2
20" (508 mm) to 30" (762 mm)
7-1/4"
(184 mm)
(Magnetic Ballast)
20" (508 mm) to
30" (762 mm)
Top View
(Electronic Ballast)
Ceiling Cutout: 6 9/16"(167 mm) Dia.
Reflector Trim
C6P38MH CLW Specular Clear, White Painted Flange.
CLP Specular Clear, Matching Flange.
CCDW Comfort Clear Diffuse, White Painted Flange.
CCDP Comfort Clear Diffuse, Matching Flange.
CCZW Champagne Bronze, White Painted Flange.
CCZP Champagne Bronze, Matching Flange.
MG Black Multi-Groove, White Molded Trim Ring.
.
Features
1. Reflector Trim: Clear anodized aluminum, 0.040" (16-ga.). Provides 45°
visual cut-off to lamp and lamp image; self-flange in painted white or
aperture-matching polished flange. Consult factory for other finishes.
2. Mulit-Groove Baffle: One piece seamless aluminum. Sharply detailed con-
centric rings, black finish. Permanently fastened to specular clear reflector.
3. Socket Cup: Galvanized steel, pre-wired with medium base pulse rated
socket. Snaps onto upper reflector for secure attachment without tools;
assures proper lamp alignment to optics for consistent performance.
4. Mounting Frame: 0.048" (18-ga.) galvanized steel includes pre-installed
mounting bars.
5. Mounting Ring: 0.048" (18-ga.) galvanized steel. Designed for vertical
adjustment from above or below for ceilings from 0" to 2" thick. Center-line
notches allow consistent alignment of multiple fixtures.
6. Retention Springs: Rust resistant springs secure cone in place for quick,
tool-less installation.
7. Frame Vertical Adjustment Mechanism: Vertical adjustment mechanism
accommodates mounting to virtually any ceiling system using pre-installed
mounting bars, or 1/2" EMT tubing (by others). Single locking feature secures
all adjustments. Alignment holes and markings allow fixture to be pre-set
prior to installation.
8. Mounting Bars: 0.048" (18-ga.) Pre-installed, telescoping bars extend to 30"
long and lock securely into position. Built-in locking tabs provide positive
attachment to common T-bar systems. Self-centering feature simplifies
installation in 24" O.C. grid systems. Attaches to steel or wood joists without
accessories.
9. Ballast: Electronic 120V or 277V. Magnetic dual voltage (120V & 277V).
Accessible from below for inspection and/or replacement without tools.
10. Junction Box: 0.048" (18-ga.) galvanized steel. UL listed for 8 No. 12 AWG,
90°C through branch circuit conductors; allows inspection from below.
11.Thermal Protector: (Not Shown) Meets NEC and UL requirements. Do not
install insulation above nor within 3" (76mm) of any part of the luminaire.
9-3/4"
(248 mm)
Top View
11-1/4"
(286 mm)
9-3/4"
(248 mm)
11" (280 mm)
(100W)
Calculite ® HID Downlight
9 7 1 3
5 7/8" (149 mm) Dia.
5 5/8" (143 mm) Dia.
7-1/4" (184 mm) Dia.
Frame-In Kit
C670MHE1 Electronic 120V
C670MHE2 Electronic 277V
C610MHE1 Electronic 120V
C610MHE2 Electronic 277V
C670MHU Magnetic 120V/277V
C610MHU Magnetic 120V/277V
Electrical
Electronic Ballast: 120V or 277V, 50/60 Hz., encased, high-power factor, T.H.D.
<15%, thermally and transient protected, RMI / RFI complies with FCC Part 18
non-consumer equipment, shut-down circuit at end of lamp life, sound rating
"A", -5°F minimum starting temperature, Type 1 outdoor rating.
Ballast ANSI Code
70W MH M98/M143
100W MH M90/M140
Magnetic Ballast: 120/277V dual voltage, 60 Hz., encased and potted,
HX-HPF circuit type, high power factor, sound rating "B", -20°F minimum starting
temperature, Type 1 Outdoor rating.
Ballast ANSI Code
70W MH M98/M143
100W MH M90/M140

Options and Accessories

Slope Ceiling Adapters: See Specification Sheet SCA.
Fuse (magnetic ballast): Add suffix F1 or F2 to Frame-In Kit (F1=120V, F2=277V)
Chicago Plenum: Consult Factory.
Labels
UL (Suitable for Damp Locations), CSA, I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Thomas Company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2004 Genlyte Thomas Group LLC (Lightolier Division) • AO5O4
C6P38MH
6" Aperture, PAR38 Ceramic MH
2 5 6 4 9 10 8
Vertical Adjustment:
5/8" (16 mm) to
2 7/8" (73 mm)
2" (50 mm) max.
Ceiling Thickness
Lamp
70W PAR38 Ceramic Metal Halide
70W PAR38 Ceramic Metal Halide
100W PAR38 Ceramic Metal Halide
100W PAR38 Ceramic Metal Halide
70W PAR38 Ceramic Metal Halide
100W PAR38 Ceramic Metal Halide
Voltage Max. Amps Input Watts
120/277 0.67/0.28 78
120/277 0.90/0.43 110
Voltage Max. Amps Input Watts
120/277 1.90/0.80 94
120/277 2.40/1.10 125
Type:
www.lightolier.com
