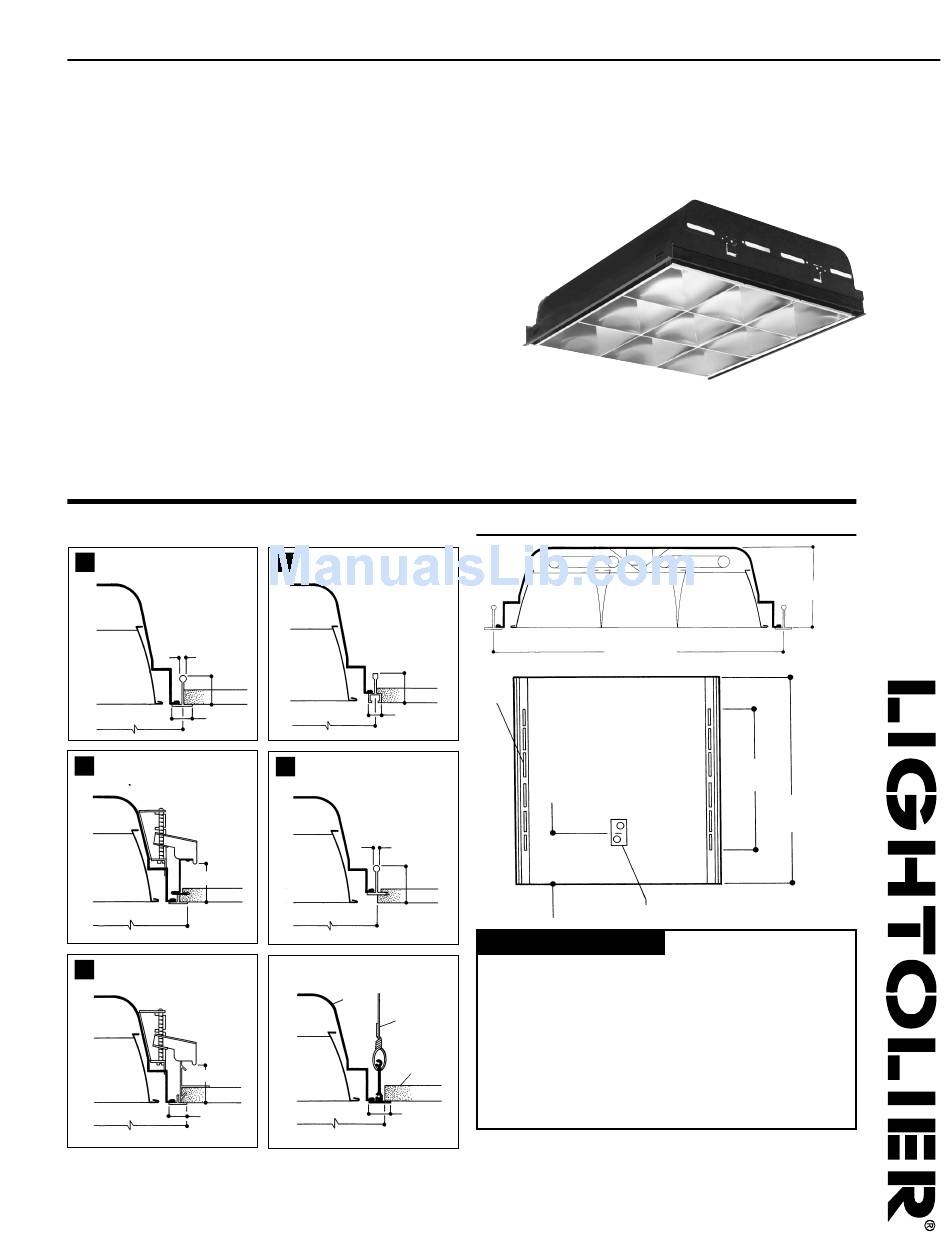

Lightolier VR Parabolic VRA2G9LS26USO Specification

Page 1 of 2
Features
• Meets IES RP1 for lighting VDT areas with normal use.
• 57.1% efficient (T8).
• 1.3 spacing mounting ratio.
• Only 6" deep body.
• One-piece housing.
• Semi-specular low iridescence pre-anodized louver.
• Spring-loaded latches.
• Concealed "T" hinges.
• Louver frame with integral positive light stop.
• Earthquake clips included.
• Louver has protective film dust guard.
• Air closure strips (optional).
• Air flow pattern dampers (optional).
• UL-Listed twin knockout access plate.
• Construction to meet Chicago Plenum Code is available.
MOUNTING METHOD
exposed T-grid ceiling.
G
1/4" max.
1-1/2" max.
15/16"
24"
or 1"
concealed Z-spline ceiling.
F
1-1/8" min.
3-3/4" max.
24-11/16"
plaster ceiling/flanged.
F
1-1/8" min.
3-3/4" max.
13/16"
24-11/16"
2'x2' RECESSED FLUORESCENT, 4" DEEP, 9 CELL (3x3) PARABOLIC LOUVER
AIR SUPPLY/RETURN/HEAT EXTRACTION, IES RP1 FOR NORMAL VDT USE
exposed slot T-grid ceiling.
T
1-7/8" max.
9/16"
24"
direct concealed two directional
T
T-grid ceiling. (see options for
splay trim).
1/4" max.
1-7/8" max.
24"
drywall kit (see options).
Type "G"
Fixture
Support
(by others)
Drywall
(by others)
Ceiling
24-5/16"
15/16"
Opening
VR PARABOLIC
DIMENSIONS
24" (610mm)
Air supply
slots
(VRA only)
5"
(127mm)
2"x2-1/2" access plate with two K.O.s (7/8" dia.)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier
a Genlyte Thomas Company
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division)
A0902
VRA2G9LS26U
6" (152mm)
15-11/16"
(398mm)
23-31/32"
(608mm)
Type:
www.lightolier.com
SECTION 2/Folio G05-40 REV. A
