I Injection molded one-piece (2 sides, 2
ends and face) virgin acrylic refractor.
I Catadioptric side and end wall design.
I Slim 3-1/4" depth.
I Invisible spring steel latches align refrac-
tor to housing.
I Refractor hinges or latches from either
side.
I Efficiency 73.1%.
I Rigid, reinforced housing.
I 1/4 turn fasteners on reflector/ballast
cover.
I Individual or continuous row mounting.
FEATURES
sturdy steel chassis
four sided injection molding

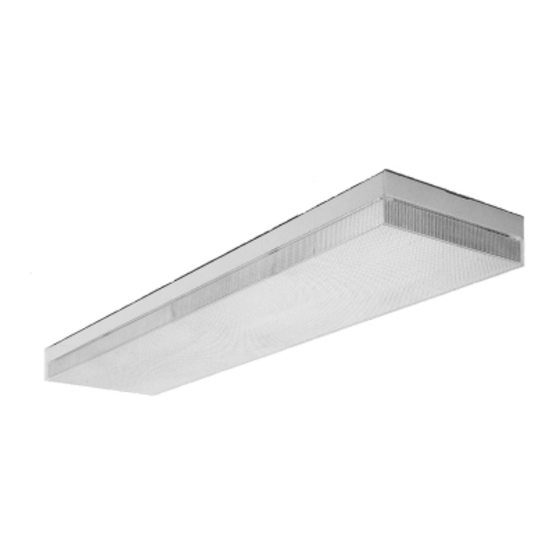

CBS 232
CELEBRITY
SURFACE FLUORESCENT
12" WIDTH, 4' LENGTH
2 LAMPS, T8 OR T12
positive spring steel latches
photograph illustrates action of
Celebrity lens enclosure. catadioptric
prisms "mirrow" out glare...refract
light beams into useful areas.
DIMENSIONS
FIXTURE TYPE
JOB INFORMATION:
SECTION 3A / Folio H20-11 REV. B
VOLTS
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Lightolier CELEBRITY CBS 232
Summary of Contents for Lightolier CELEBRITY CBS 232
- Page 1 CBS 232 CELEBRITY SURFACE FLUORESCENT 12" WIDTH, 4' LENGTH 2 LAMPS, T8 OR T12 I Injection molded one-piece (2 sides, 2 ends and face) virgin acrylic refractor. I Catadioptric side and end wall design. I Slim 3-1/4" depth. I Invisible spring steel latches align refrac- tor to housing.
-
Page 2: Specifications
CELEBRITY CBS 232 12" x 4' SURFACE FLUORESCENT LER = FP - 66.2 WATTS - 59.1 BF - 0.88 PHOTOMETRY MODEL NO. CBS232120SO Comparative yearly lighting energy cost per 1000 lumins = $3.62 coefficients of utilization — zonal cavity method (effective floor cavity reflectance 0.20) CBS232120SO visual comfort probability (rated lumens per lamp 3150.) room size...
