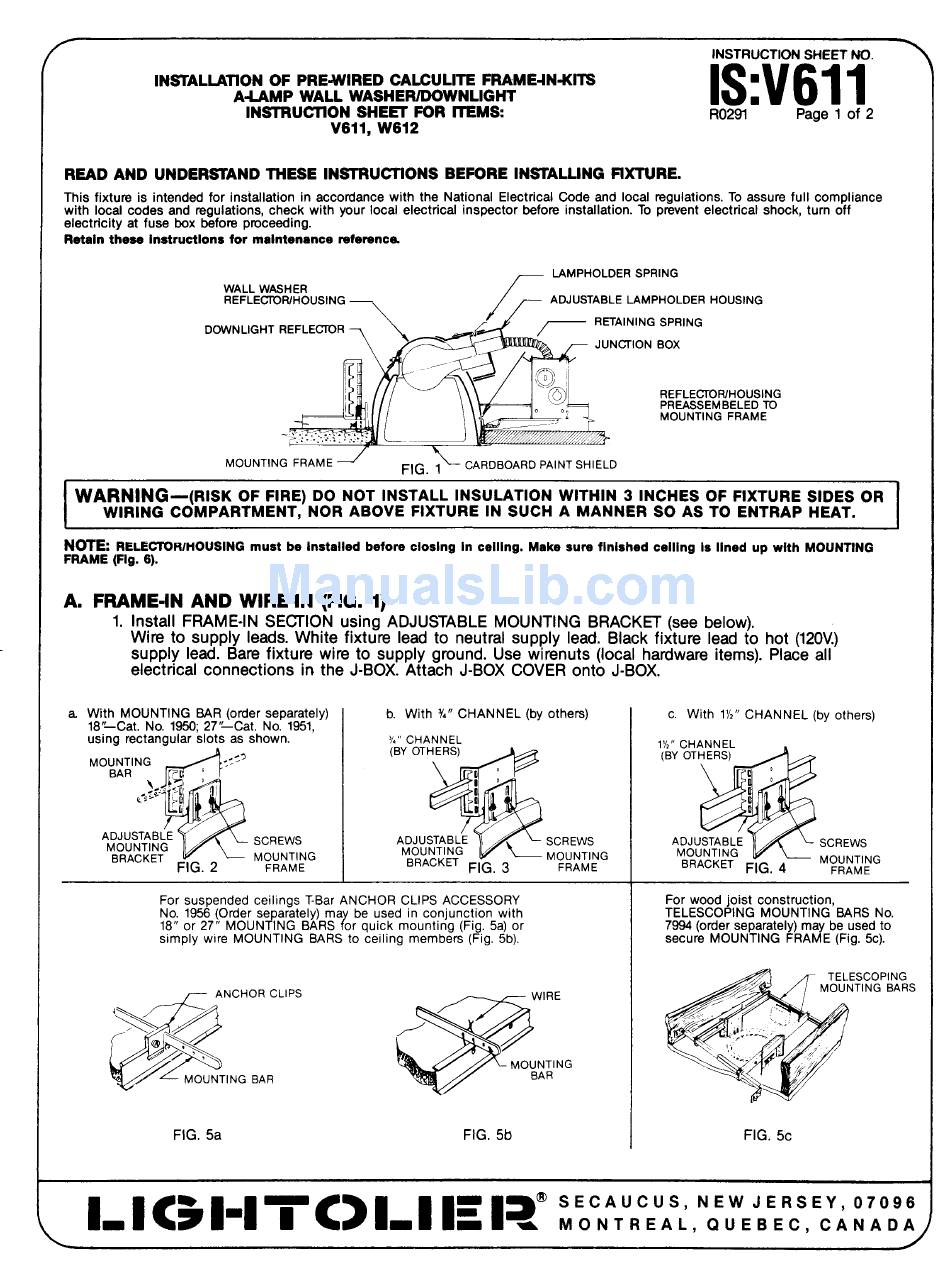

Lightolier V611 Instructions

INSTRUCTION SHEET NO.
IN=ALLATION OF PRE-WIRED CALCULITE FRAME4N-KITS
A-LAMP WALL WASHERIDOWNLIGHT
IS:V611
INSTRUCTION SHE~ FOR ITEMS
R0291
V611, W612
Page 1 of
2
READ AND UNDERSTAND
THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE.
This fixture is intended for installation in accordance with the National Electrical Code and local regulations. To assure full compliance
with local codes and regulations, check with your local electrical inspector before installation. To prevent electrical shock, turn off
electricity at fuse box before proceeding.
Retain these Instructions for maintenance reference.
DO
WARNING—(RISK OF FIREI
DO NOT INSTALL InSUlatiOn WITHIN 3 INCHES OF FIXTURE SIDES OR
WIRING COMPARTMENT, NOR ABOVE FIXTURE IN SUCH A MANNER SO AS TO ENTRAP HEAT.
N~E
RELIXTOR/HOUSING must be Installed before closlng in ceiling. Make sum flnlshed ceiling Is lined up with MOUNTING
FRAME (Fig. 6).
A. FRAME-IN AND WIRE-IN (FIG. 1)
1. Install FRAME-IN SECTION using ADJUSTABLE MOUNTING BRACKET (see below).
Wire to supply leads. White fixture lead to neutral supply lead. Black fixture lead to hot (120V.)
supply lead. Bare fixture wire to supply ground. Use wirenuts (local hardware items). Place all
electrical connections in the J-BOX. Attach J-BOX COVER onto J-BOX.
s
[m I <>~"[~<> 1-[ 1= [~" :&;~;;;;,N;~E&;~,E;~;y~~
