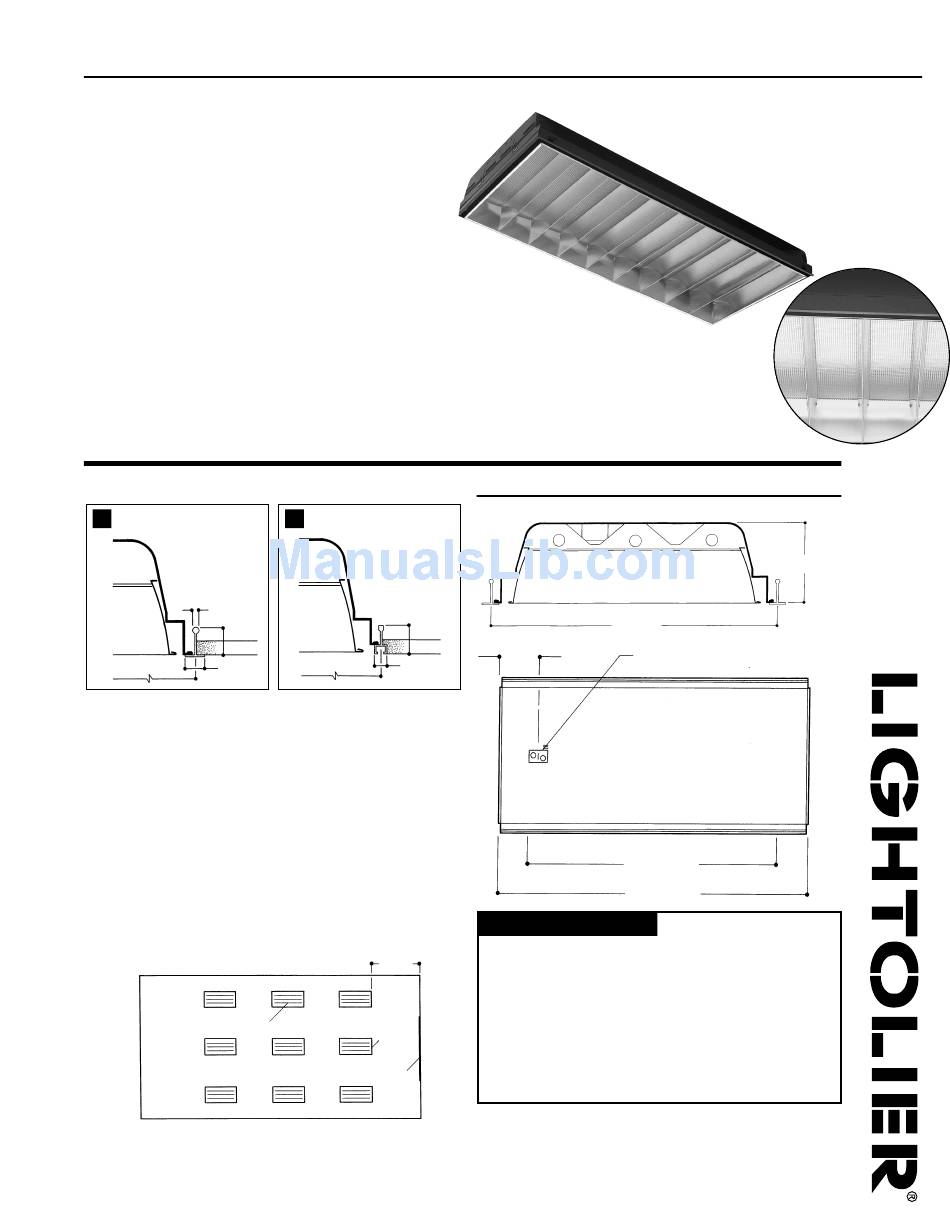

Lightolier VTS2GPK332 Specification

VIDEO TELECONFERENCE LUMINAIRE
Page 1 of 2
Features
• Provides soft vertical illumination for comfortable televising of par-
ticipants.
• Shields the camera from light sources and eliminates glare on the
projection screen.
• Integrated specular parabolic blades and prismatic acrylic lens
assembly for directional brightness control.
• 86 minimum VCP in rooms with less than 10' ceiling (3 lamp T8).
• Spring-loaded latches.
• Concealed "T" hinges.
• Louver/lens assembly with positive light stop.
• Four earthquake clips standard.
• UL-Listed twin knockout access plate.
• Construction to meet NYC Code Requirements and Chicago Plenum
Code is available.
MOUNTING METHODS
exposed T-grid ceiling.
G
1/4" max.
1-1/2" max.
15/16"
24"
or 1"
TELECONFERENCE LIGHTING RECOMMENDATIONS
1. I.E.S. recommends 50 maintained footcandles for telecon-
ferencing.
2. 3000K lamps with C.R.I. of 82 suggested for better skin tone.
3. Teleconferencing luminaires are to be mounted in the
ceiling with the lamps perpendicular to the wall that the
viewing screen is on.
4. The end of the first fixture must be a minimum of 6 feet
from the viewing screen (see diagram).
5. Side and back walls should be illuminated to reduce
contrast vs. other vertical surfaces. Use wall lighting luminaires where nec-
essary. 5:1 maximum luminance ratio
suggested.
NOTE: For wall lighting, request Folio K20-05.
Lamp
Direction
TELECONFERENCING ORIENTATION
exposed slot T-grid ceiling.
T
1-7/8" max.
9/16"
24"
6' Min.
End of
Fixture
Viewing
Screen
DIMENSIONS
24" (610mm)
2" x 2-1/2" access plate
6" (152mm)
with two K.O.s
(7/8" dia.)
39-1/4" (997mm)
47-31/32" (1218mm)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier
a Genlyte Thomas Company
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division)
A0902
VTS2GPK332
2'x4' RECESSED FLUORESCENT
6" (152mm)
Type:
www.lightolier.com
SECTION 5/Folio K05-15
