Lightolier Lytespan 8180WH Specification

Page 1 of 2
Ordering Information
Catalog No. Finishes
8180WH Matte White
8180BK Matte Black
7653 Matte White
7654 Matte Black

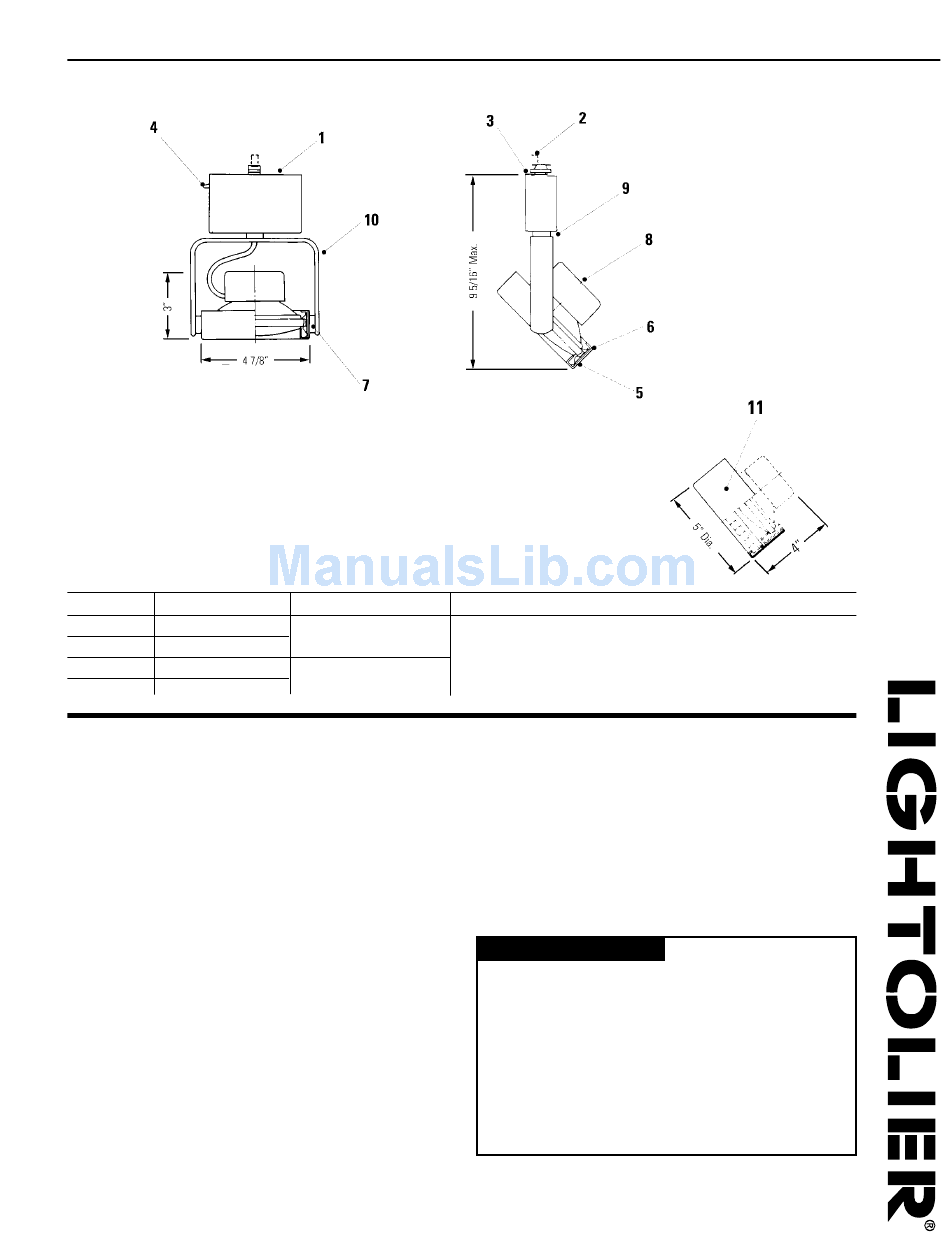

Features
1. Transformer Housing: Die-cast aluminum. Fitter twists onto track and locks
on.
2. Movable Brass Contact: Extends for connection to 2nd circuit in Advent
Lytespan Track.
3. Polarity Keyway
4. Push Tab: Molded polycarbonate. Detaches unit.
5. Housing: .032" aluminum.
6. Lamp Holder: .032" aluminum.
7. Trunion Mounting:Tensioned with internal spring washer and vibration-
resistant nut. 90° vertical adjustment.
8. Snap-In Socket: Molded high heat resistance polymer. Eliminates need to
attach leads to lamp terminals.
9. Pivot Mounting: Tensioned; 350° stop for horizontal rotation.
10. Yoke: .187" extruded aluminum.
11. Louver/Filter Holder Accessory: Fits securely over the fixture housing
with spring clips. Serves to hold spread lens, filters or louver.
Electrical/Dimming
Low voltage magnetic transformer designed to fit a compact die-cast housing
scaled to complement the track. Snap-in Socket, pre-wired with sleeved No. 18
braided SF-1 leads. Use only dimmers specially rated for inductive loads (low
voltage fixtures equipped with magnetic transformers) such as Lightolier
Lytemode and Scenist systems and Lightolier dimmers carrying the suffix VA.
Options & Accessory
Accessories (Order Separately): 4 3/4" Dia. Series Color Filters, Heat Filters,
Spread Lenses and Louver (See Lightolier Specification Sheets AF, AF2AS and
AL4CC) Maximum of two accessories may be used.
Lytespan
Mounting Lamps
All Lytespan Track Systems 25W-50W PAR36 12V
Louver/Filter
Holder
Finish
All painted finishes baked enamel.
Labels
UL; I.B.E.W.
