Lightolier Lytespan 8103 Specification

Page 1 of 2
9
5.75"
8
11
10
Catalog No. Finish
8103WH White
8103BK
Black
8103AL Aluminum
Features

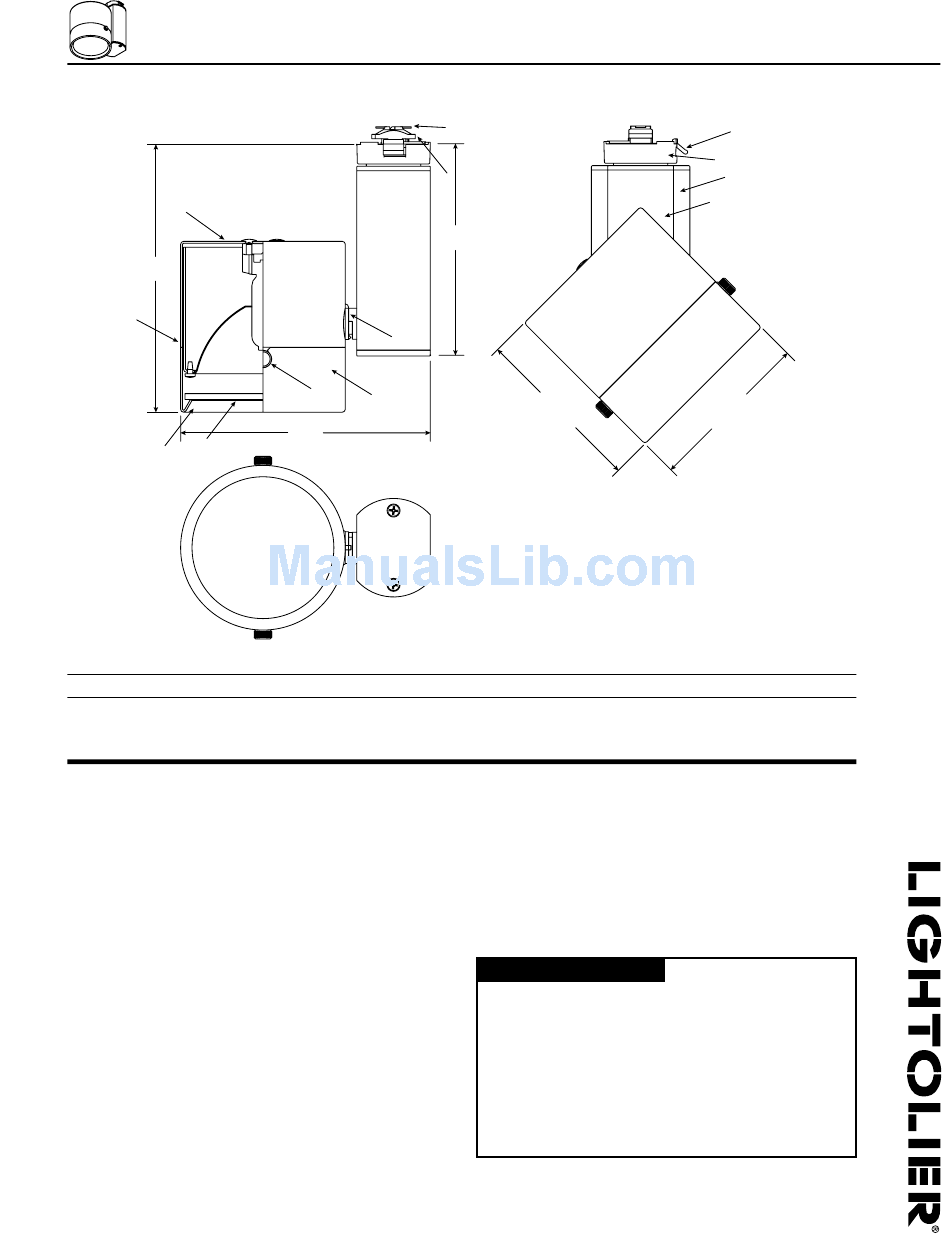

1. Track Attachment Fitting: Molded polycarbonate, rotates into track.
Integral color white or black.
2. Push Tab: Molded polycarbonate. Locks and detaches unit.
3. Track Adaptor Housing: Die-cast aluminum.
4. Movable Contact: Solid brass. Extends for connection to 2nd circuit in
Advent track.
5. Ballast Housing: Extruded aluminum housing with die-cast aluminum
end caps.
6. Ballast: High Power Factor metal halide electronic ballast. Thermally
protected, 0.20A maximum input current, 24.5W input power.
7. Tension Pivot Mounts: Allows for 350° horizontal and 180° vertical
rotation with tensioned mounts for controlled aim.
8. Lamp Housing: 0.04" (1.02mm) aluminum.
9. Lampholder: Twist and lock base. 5kV (250V) pulse rated porcelain body
socket with nickel-plated contacts. 18 AWG silicone leads with fiberglass
outer sleeve inside of the lamp housing.
10. Flood Reflector: 0.02" (0.51mm) specular anodized aluminum finish.
11. Protective Glass: 0.13" (3.18mm) tempered glass.
12. Cover Housing: 0.04" (1.02mm) aluminum.
13. Knobs: Painted steel knurled knob secures cover to housing.
Accessories
Holder: 8195, holds one accessory
Diffusion/ Special Filters: AF25 series
Color Filters: ADF25 series
Louver (Hex Cell): AL25HC
4
1
4.5"
7
13
12
5.25"
Bottom View
Lamp
20W T4 CMH (M156) GU6.5 Base
Not Included
Lytespan
®
Cylinder Flood Mini HID 20W T4 CMH
3.63"
Mounting
All Monopoint, Multipoint, recessed track, suspension stems, sloped ceiling
adapter, Basic, Advent and Radius track systems only. Ceiling and horizontal
or vertical wall mounted. Not compatible with ProSpec track system.
Finish
All painted finishes are baked powder or enamel.
Markings
cCSAus Certified for dry locations only.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
