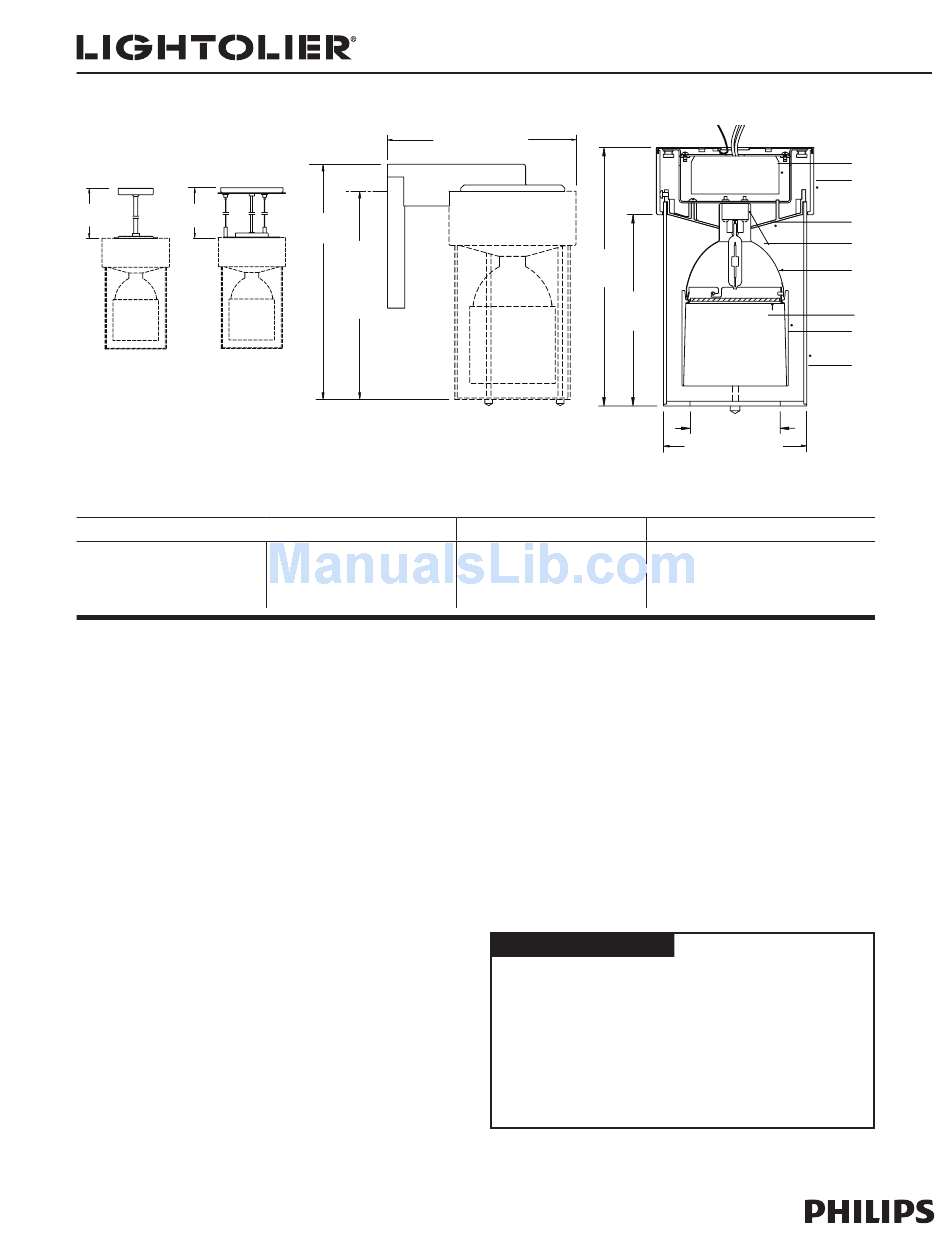

Lightolier Calculite CACEX Specification

Page 1 of 2
37" 10'
(3657 mm)
(940 mm)
Stem Kit
Surface Cylinder (Complete Unit)
C4CEX20T4EU
C4CEX39T4EU
C4CEX20T4EUA
C4CEX39T4EUE
Features
1. Glass Shroud: Clear glass cylinder provides visual interest and a
contemporary decorative element; glass diffuser and reflector exposed.
2. Glass Diffuser: Etched glass cylindrical diffuser provides cutoff to the light
source delivering smooth even illumination.
3. Cylinder Base Cover: Powder coated (to match base) die-cast cover is
removable to access wiring and ballast.
4. Cylinder Base: Powder coated matte silver die-cast aluminum base
supports glass cylinder and conceals electrical components.
5. Reflector: Highly polished specular aluminum. Precisely controls and directs
light downward providing high-efficiency optics.
6. Lamp Shield: High-temperature glass as required by code; captive during
re-lamping. Light diffusion provides exceptionally smooth beam.
7. Socket Housing: Galvanized steel, pre-wired with G8.5 pulse rated socket.
Snaps onto upper reflector for secure attachment without tools; unitized
construction assures proper optical alignment of lamp to reflector.
8. Electronic Ballast: 20W / 39W electronic universal (120/277V)
Electrical
Electronic Ballast: 120V/277V dual voltage, encased, high power factor,
T.H.D., -15%, thermally and transient protected, RMI/RFI complies with FCC
Part 18 non-consumer limits, shut-down circuit at end of lamp life, sound
rating "A",-5° F minimum starting temperature, Type 1 outdoor rating.
Ballast ANSI Code
20W MH M156
39W MH M130
Lightolier is a Philips group brand
12"
(305 mm)
10-5/8"
(270 mm)
to the center
of 4" octagon
outlet box
Cable Pendant Kit
Electronic 120V / 277V
Electronic 120V / 277V
Electronic 120V / 277V
Electronic 120V / 277V
Voltage Max. Amps Input Watts
120/277 0.21/0.10 23
120/277 0.39/0.17 44
Calculite HID Surface Cylinder
®
9-5/8" (245 mm) Dia.
10-5/8"
(270 mm)
Wall Mount Kit
(Rod Accessory shown)
Housing
Painted Aluminum
Painted Aluminum
Satin Aluminum
Satin Aluminum

Options and Accessories

CA4CWBS: Wall Mount Kit – Silver.
Cast aluminum back plate, suitable for mounting over 4" octagon
outlet box.
CACPS: 120" Cable Pendant Kit – Silver.
Cast aluminum back plate, suitable for mounting over 4" octagon
outlet box. Provided with (3) 0.050" cables, power cable and 6 1/2"
decorative plate. Installs over 4" octagon Outlet box. Cable can be
cut to length on site.
CACSS: Stem Kit – Silver (45° Swivel, 37" Long).
Provided with 5/8" dia. Stem and 5 1/2" Canopy. Self-aligning
swivel provides max. 45° vertical tilting. Installs over 4" octagonal
outlet box. Stem can be cut to length on site.
CAEXPT: Expo Rod & Trim Kit
Labels
UL Listed (suitable for wet locations), CSA, I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • E0708
T4.5 Ceramic Metal Halide, Expo
7-7/8"
(200 mm)
3-1/2" (89 mm) Dia.
5-7/8" (149 mm) Dia.
Lamp
20W T4.5 Ceramic Metal Halide
39W T4.5 Ceramic Metal Halide
20W T4.5 Ceramic Metal Halide
39W T4.5 Ceramic Metal Halide
Type:
CACEX
