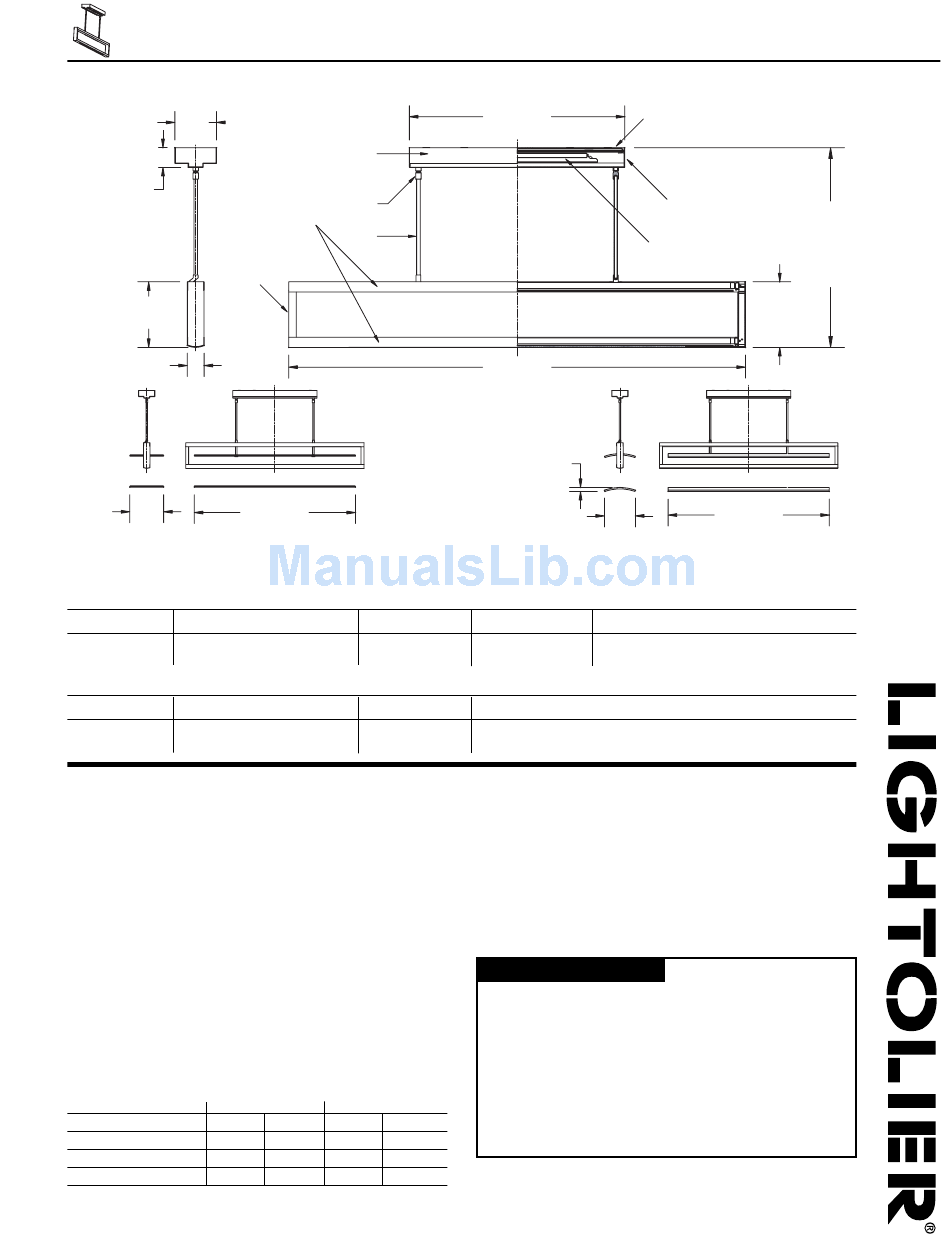

Lightolier 48228ALU Specification

Page 1 of 3
4"
(102)
2"
(51)
6 13/16"
(173)
1 3/4"
(44.5)
9"
(229)
40800
Diffuser Flat Glass
Note: Luminaire can be ordered with or without diffuser shield. Order each separately.
Fixture Ordering Information
Catalog No. Finish
48228ALU Metallic Aluminum Powder Coated
48254ALU Metallic Aluminum Powder Coated
Diffuser Ordering Information (Order diffuser separately)
Catalog No. Description
40800 Flat Glass Diffuser (3/"8 Thick)
40810 Curved Glass Diffuser (3/8" Thick)
Features
1. Mounting Plate: 18 GA. (.048) Galvanized steel for direct mounting to
most junction boxes. Secondary mounting holes provided to mount directly
to ceiling.
2. End Cap: (2) Die cast aluminum. See above for finish.
3. End Cover: (2) Die cast aluminum. See above for finish.
4. Lamp Enclosure: (2) Extruded aluminum. See above for finish.
5. Support Stem: (2) 3/8" diameter steel tubing. Luminaire provided with three
lengths (10", 16" and 22"). See above for overall heights. Stems can not be
added together.
6. Swivel: (2) Meets California Earthquake codes.
7. Housing: Extruded aluminum. See above for finish.
8. Ballast: See below for details.
Lamping (by others)
Linear Fluorescent: 28W T5 or 54W T5 HO, Mini Bipin
Electrical
Lampholders: G5 (Mini-Bipin) base with rotor for securing lamp. cULus Listed.
Ballast: Electronic, HPF, Universal voltage 120V-277V.
28 Watt
Voltage 120V
Total Input Watts 64
Max. Line Current (Amps) 0.55
Ballast Factor 1.03
Min. Starting Temp: 0°F/-18°C
THD<10%
Architectural Decorative Soli Zontio
7
6
4
5
3
42 7/8"
(1089)
Wattage
2 x 28W
2 x 54W
Dimensions
9" W x 42 7/8" L
8 1/4" W x 42 7/8" L
54 Watt
277V 120V 277V
63 120 117
0.23 1.0 0.43
1.03 1.0 1.0
22 3/8"
1
(568)
8
47 1/2"
(1206.5)
1"
(25)
8 1/4"
(210)
( ) Denotes dimensions in mm
Voltage Lamping
120/277V T-5, Mini-Bipin
120/277V T-5 HO, Mini-Bipin High Output
Finish
White ceramic coated top, etched bottom. Clear polished edges.
Etched top and bottom. Clear polished edges.
Options
Dimming: (Voltage Specific/54W HO lamps)
Add MX1 suffix code (for 120V) to Cat. No.
Add MX2 suffix code (for 277V) to Cat. No.
example: 48254ALMX1
Emergency: Integral Bodine LP550 emergency battery pack, test switch and
light, add E suffix code to Cat. No.
DALI: Digital Dimming System ballast 120/277V. Add DA suffix code to Cat. No.
Labels
cULus Listed. Suitable for Damp Locations
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2004 Genlyte Group LLC • A0904
48228ALU

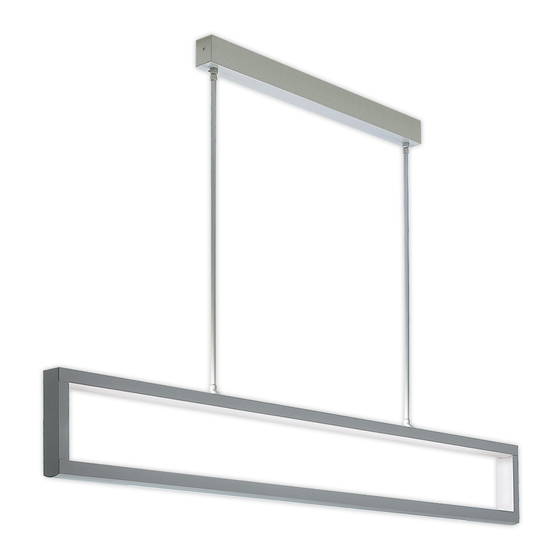

2 Light, T-5 Pendant
2
20 3/4"
26 3/4"
32 3/4"
6 7/8"
(175)
42 7/8"
(1089)
40810
Diffuser Curved Glass
Type:
www.lightolier.com
(527)
(679.5)
(832)
