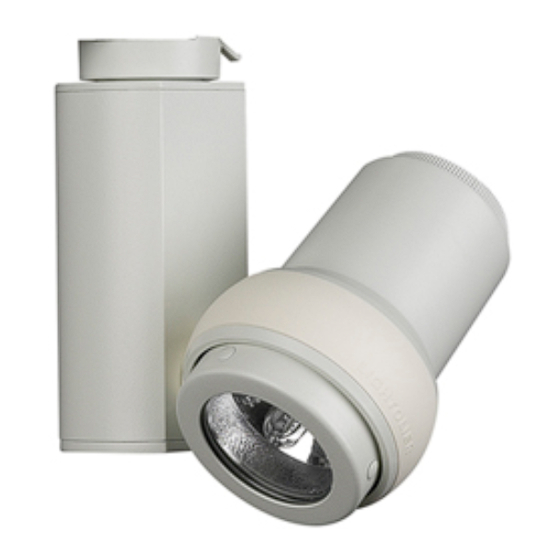

Lightolier Lytespan 8100 Specification

Page 1 of 2
9
8
Catalog No. Finish
8100WH White
8100BK Black
8100AL Aluminum
Features

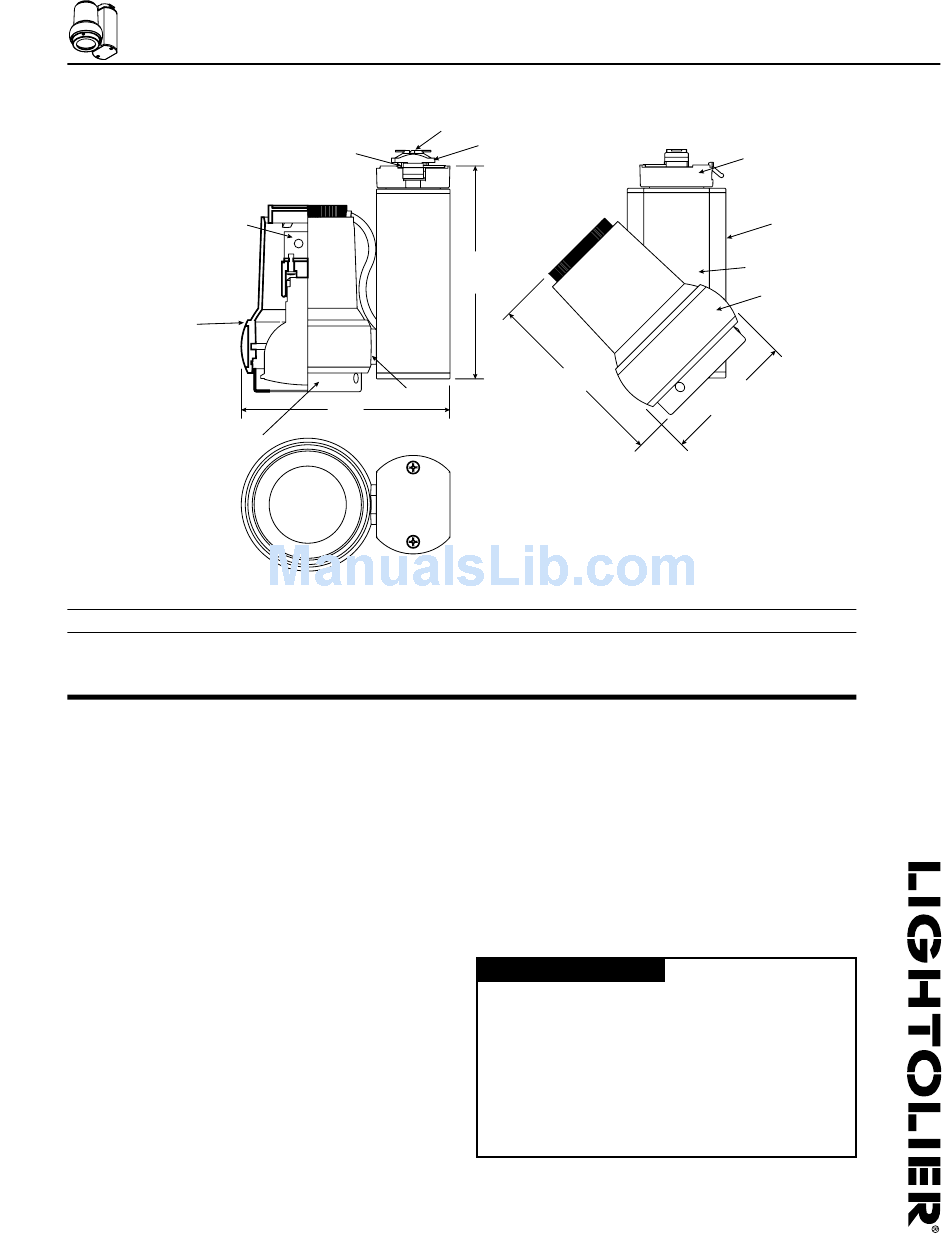

1. Track Attachment Fitting: Molded polycarbonate, rotates into track.
2. Push Tab: Molded polycarbonate. Locks and detaches unit.
3. Track Adaptor Housing: Die-cast aluminum.
4. Movable Contact: Solid brass. Extends for connection to 2nd circuit in
Advent track.
5. Ballast Housing: Extruded aluminum housing with die-cast aluminum
end caps.
6. Ballast: High Power Factor metal halide electronic ballast. Thermally
protected, 0.20A maximum input current, 24.5W input power.
7. Tension Pivot Mounts: Allows for 350° horizontal and 180° vertical
rotation with tensioned mounts for controlled aim.
8. Lamp Housing: Die-cast aluminum with cool-grip
temperature silicone rubber which allows aiming adjustments while fixture
is on. Integral color.
9. Lampholder: Twist and lock base. 5kV (600V) pulse rated heat resistant
thermo plastic body socket with nickel-plated contacts. 18 AWG silicone
leads with fiberglass outer sleeve.
10. Cowl: Painted steel; steel springs hold lamp front and accessories;
secured to housing with springs.
Accessories
Holder: Integral, holds one accessory
Diffusion/Special Filters: AF2 series
Color Filters: ADF2 series
Louver (Hex Cell): AL2HC
2
7
4.5"
10
Lamp
20W MR16 CMH (M156) GX10 base
Not included
insulation band; a high
®
Lytespan
4
1
4.5"
4.5"
Bottom View
Mounting
All Monopoint, Multipoint, recessed track, suspension track, suspension
stems, sloped ceiling adapter, Basic, Advent and Radius Track systems only.
Ceiling and horizontal or vertical wall mounted. Not compatible with ProSpec
track system.
Finish
All painted finishes are baked powder or enamel.
Markings
cCSAus Certified for dry locations only.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • B0607
Track Lighting
®
Step Spot Mini HID 20W MR16 CMH
3
5
6
8
2.88"
Type:
www.lightolier.com
8100
